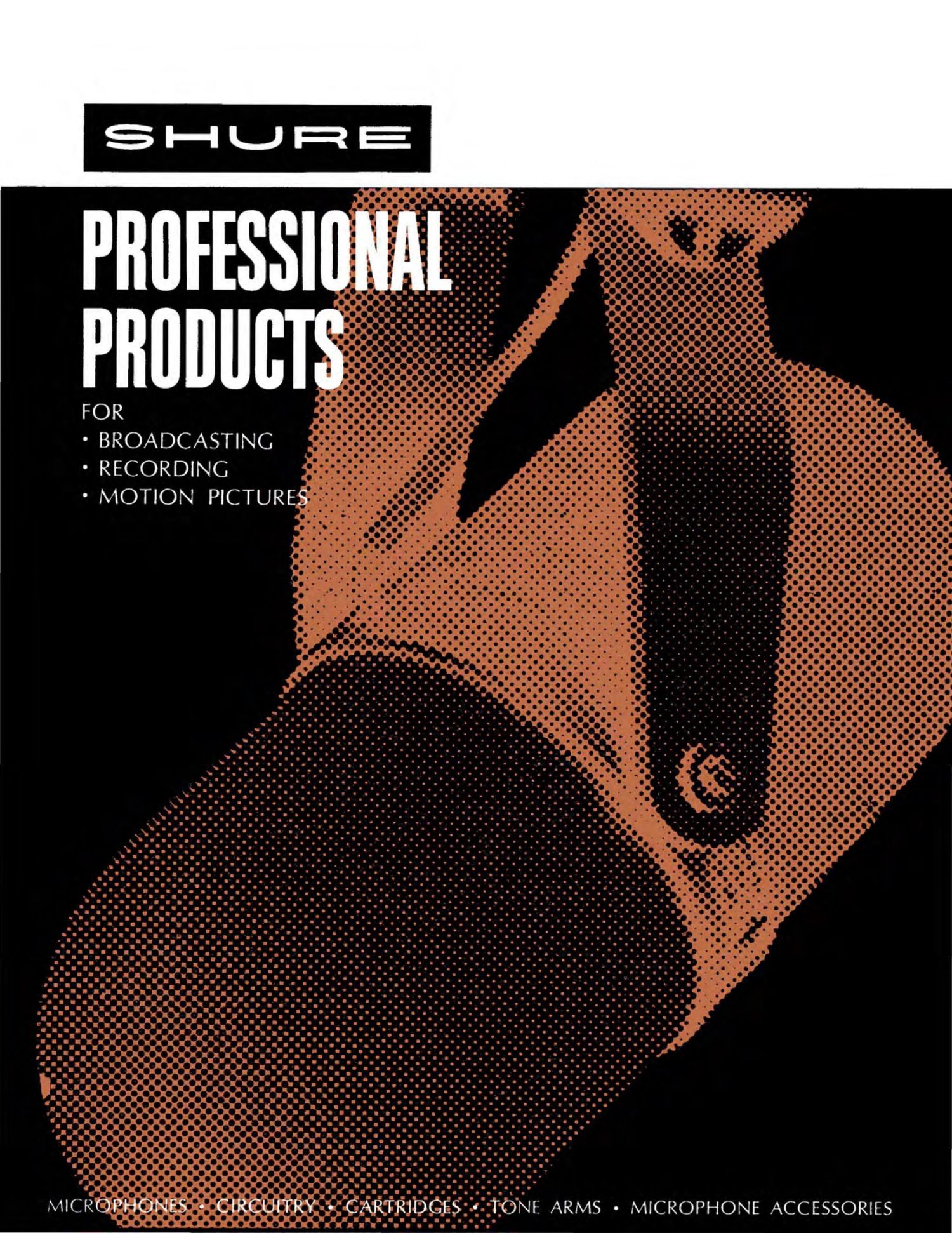

Shure 1969 catalogue professional products

Page 1

PIIlIFESSIflNAl
manuals

FOR

° BROADCASTING

' RECORDING

' MOTION PICTURES

MICROPHONES - CIRCUITRY - CARTRIDGES - TONE ARMS - MICROPHONE ACCESSORIES

Page 2

PAGE

M PROFESSIONAL PRODUCTS

©1969 SHURE enornens. we.

7

.

SMS UNIDIRECTIONAL DYNAMIC
BOOM MICROPHONE

Specifically designed to minimize boom microphone prob-
lems in television and motion-picture sound stage and
location recording. Smooth, natural response for dialogue,
vocal music, and many scoring applications. Unusually effec-
tive cardioid pattern is uniform with frequency (even at the
extreme low end) and completely symmetrical about the axis.
This characteristic assures excellent rejection of unwanted
sound (even air conditioner or traffic rumble), allows virtually
no coloration of off-axis reflections or reverberation, and
maintains presence overvvery wide werking distance range.
Highly effective integral windscreen completely surrounds
the mechanical isolation elements for protection and max-
imum wind noise suppression. No transformers or inductors
to pick up electrical noise or hum. Lightweight and perfectly
balanced for fast pans and fishpole use. For 516 or smaller
boom studs; %---27 stand thread adapter included.

May also be used to good advantage on optional desk stand
($330 for outdoor sports and other problem applications.

SPECIFICATIONS

FREQUENCY RESPONSE: $045,000 HZ
POLAR PATTERN: Cardioid

IMPEDANCE: Model SMSA - 50 ohms
Model SMSB - 150 ohms

OUTPUT LEVEL: 57 db (0 db = 1 milliwatt
with 10 microbars)
CONNECTOR: Cannon XLR-3-42 receptacle on microphone

DIMENSIONS AND WEIGHT: 93932 long x 51/2 diam. x
S'-%2 yoke (to center of microphone); 1 lb. 15 oz.

SM50 SELF-WINDSCREEN ED
OMNIDIRECTION AL DYNAMIC

Strikingly immune to windnoise and explosive breath
sounds, making it an ideal "work horse microphone for
remote interviews, news, sports, and a variety of field and
studio applications. Five-element built-in windscreen un
screws from microphone as a self-contained unit for easy
cleaning or replacement. Response rolled off slightly at
each end to reduce extreme low and high frequency noise
and sibilance. Full-bodied, smooth, natural, and pleasing
reproduction of speech and vocal music. Extremely rugged,
yet surprisingly light. Compact and perfectly balanced for
unusually comfortable handling. Shock-mounted cartridge.
Supplied with slip-in stand adapter.

SPECIFICATIONS

FREQUENCY RESPONSE: 40-15,000 Hz
POLAR PATTERN: Omnidirectional
IMPEDANCE: DUAL: 30-50 ohms; 150-250 ohms

OUTPUT LEVEL: -57 db (0 db 2 1 milliwatt with
10 microbars)

DIMENSIONS AND WEIGHT:
69/16" x 1% diam. (max); 8 02.

See page 5 for important information on Connectors,
Cables, Surface Finishes, and Stand Thread.
