Shure 1956 catalogue

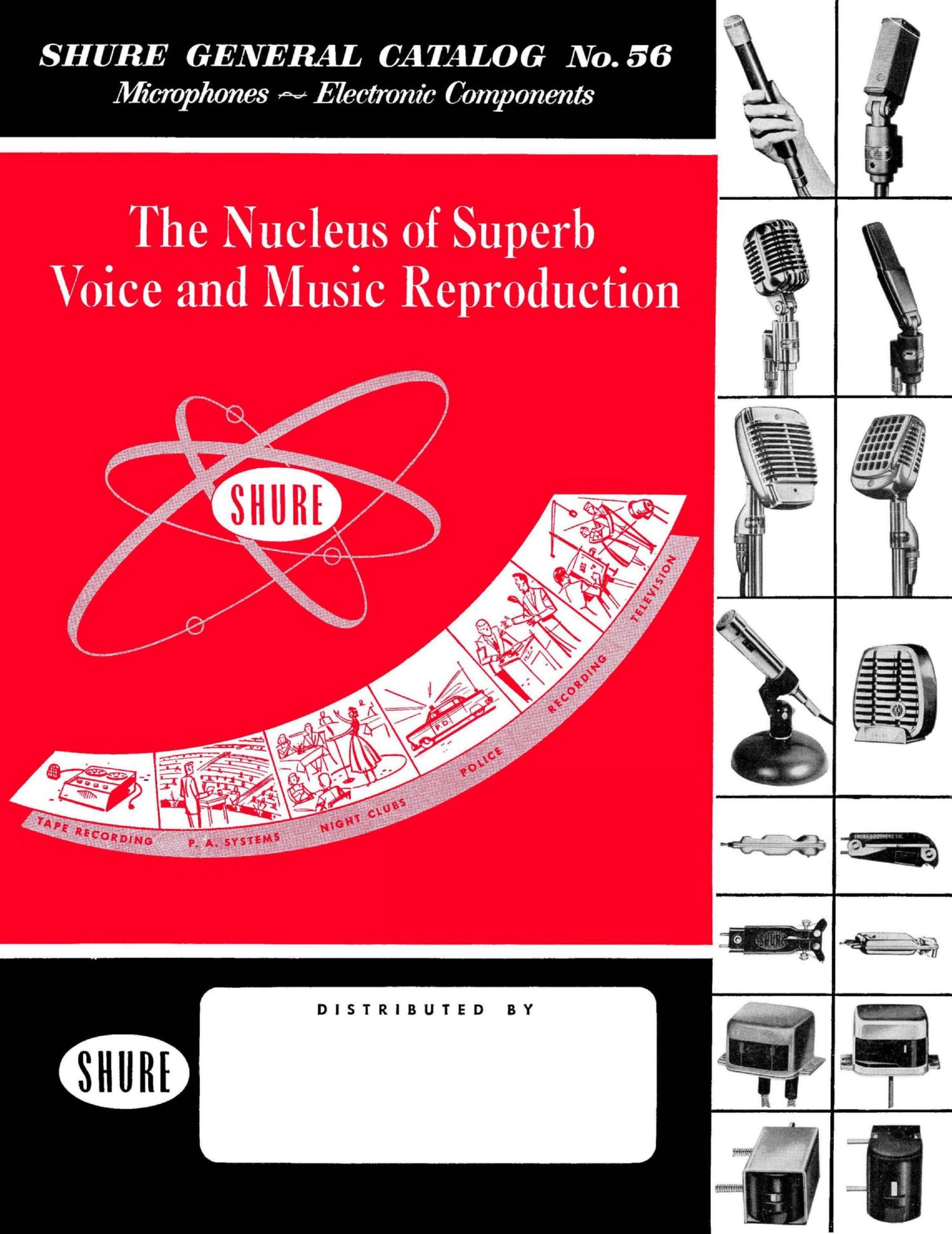

Page 1

SH URE GENERAL CATALOG N0. 56
M'cmplzones 7% Electronic Components

DISTRIBUTED BY

Page 2

STUDIO MICROPHONES; '

time-DIRECTIONAL RIBBON MIOROPHOiiE

Here is the dependable 333, a truly fine and rugged microphone created for discriminating users
with the most exacting professional requirements. Here, indeed, is a major advance in microphone
development and design! This small, ultra-cardioid "333 is highly recommended for motion-picture
studios, TV studios, radio stations, professional recording, and all other uses where quality require.
ments are of the highest. Here is performance never before achieved in such a small and slender
microphone! Here is ruggedness and reliability! Here is matchless beauty and striking design to appeal
to users who demand the finest! The 333 is ultra-cardioid, uni-directional-reduces the pickup of
random noise energy by 73°/o---prevents the pickup of moving props, scuffling feet and moving
dollies, so common when conventional broadcast microphones are used. Following are the features
that make the 333 Studio so outstanding in performance, so dependable in operation: (1)
patented, world-famous Uniphase system; (2) a true ultra-cardioid pickup pattern; (3) horn-loaded
ribbon transducer provides extended smooth response, production uniformity guaranteed to plus or
minus 21/2 db, 30-l5,000 c.p.s.; (4) multi-impedance switch; (5) voice-music switch; (6) anti-"Pff" filter
screen; (7) Shure self-adjusting lifetime" swivel; (8) high output; (9) sturdy, one-piece metal case;
(10) vibration-isolation unit mounted in live rubber; ('IT) Cannon XL connector. All these important
features, plus the striking design of the Studio 333," make it ideal for critical studio applica-
tions that call for the highest possible broadcast quality, small size and matchless beauty-plus the
ability to withstand the rough work-a-day handling by the sound crew. The 333 has two-tone

Mogrlé333" Baked Bronze non-reflecting finish. Head dimensions: Width, 1 1/8"; height, 3 9/ 16"; depth, 1 3/4_
u no
Model $33
IMPEDANCE TABLE OUTPUT LEVEL Broadcast
low-50 ohms 60 db below i Milliwatt Desk Stand

per 10 micrpbar signal . d I
-» Fgciousziasmgzyosf; M0051 l lIST PRICE

and 556$ ""33: l $250.00
List Price $15.00

dim-'50 °" 59 db below 1 Milliwatt

we. . b .
-~High_Medium_250 ohms per 10 micro or signal

~ f OMNI-DIREcnONAL DYNAMIC MICROPHONE

The new Studio 525 is an exceptionally fine probe microphone of broadcast quality. It features:
(1) frequency response 40-15,000 c.p.s., production uniformity guaranteed to plus or minus 2V2 db;
(2) a moving-coil mounted in a highly efficient magnetic structure; Alnico V magnet; (3) multi-
impedance switch; (4) high output; (5) long life Duracoustic diaphragm-specially designed to
withstand moisture, heat, cold and physical shock. The 525 is furnished with a 20 ft., two-conductor,
rubber-covered, shielded cable with Cannon XL-3-ll connector attached; swivel adapter; adiustable
lavalier assembly (cord and clip), and a belt clip assembly. The "525 Studio has a non-reflect-
ing Baked Bronze finish-which makes it blend into the background, giving the spotlight to the
performer. Body diameter, 1; length, 8 17/32.

lMPEDANCE TABLE I OUTPUT LEVEL Model 533
50 ohms MODEL l LlST PRICE
61 db below 1 Milliwatt B°°d°" .. .. '
\, 150_____ohrm_ \ per 10 microbar signal Desk Stand 525 l 5200"
250 ohms - list Price: $15.00

Model "525"
Studio

,.58:111..0'injicrIONAL GRADIENT'- MICROPHONE

This rugged, high fidelity, multi-impedance microphone is widely used for television, radio broadcasting,
professional recording and high-fidelity uses. The 300 reduces reverberation and the pickup of random
noise by 66%. The 300 combines the best features of conventional velocity microphones with advanced
acoustic design-including an anti~PFF filter screen. Its bi-directional polar pattern is effective over
a broad frequency range. It provides sound pickup at the front and rear of the microphone, but
greatly reduces pickup at the sides. One of the outstanding features of the 300 is the fact that the
microphone can be placed at a 73% greater distance from the performer than is possible with omni-
directional microphones! The 300 has a non-reflecting "Baked Bronze finish, so it blends into the
background, gives the spotlight to the performer. The 300 has a readily accessible Voice-Music
switch, vibration-isolation unit mounted in live rubber, and a multi-impedance switch, providing low
medium and high impedance. Extended response, production uniformity guaranteed to plus or minus
2V2 db, 4045.000 c.p.s. Furnished with a 20-foot two-conductor, rubber-covered, shielded cable with
Cannon XL-3-li connector attached.

IMPEDANCE TABLE OUTPUT LEVEL
1J1 ' L-35-50 ohms 59 db below i Milliwatt MM! $33
14 . : per 10 microbar gi'nal BfOOdCOST MODEL LIST PRICE
" M;iso-250 "dbm 60 db bmw i Milliwatt Desk Stand 300., s, 000
Model "300" ,___,-_. ,_ W 1° mimbm WI! List Price: $15.00 5 '
Studio H-High 57 db below 1 volt per microbar
