Shure 1955 catalogue

Page 1

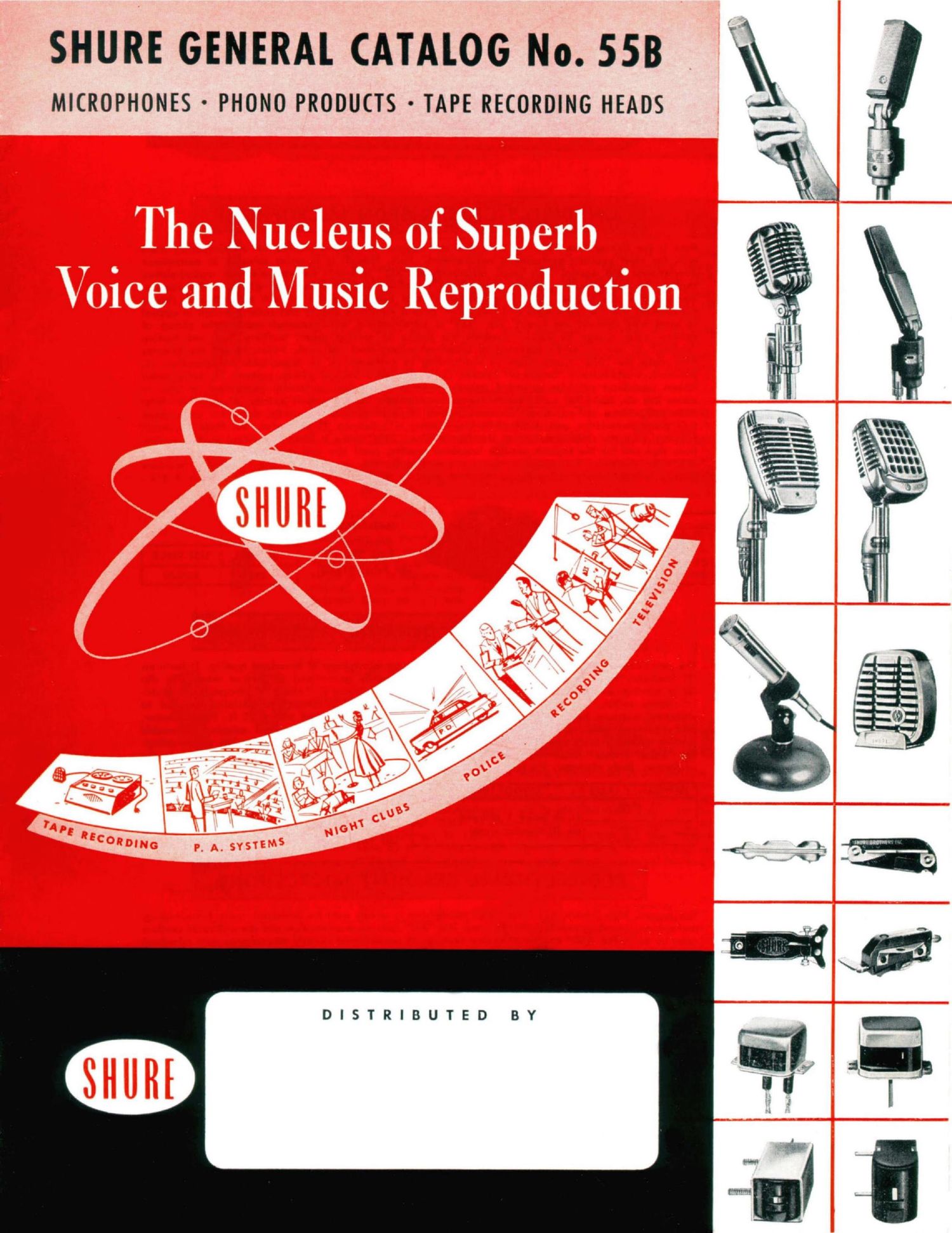

SHURE GENERAL CATALOG No. 558

MICROPHONES ° PHONO PRODUCTS ° TAPE RECORDING HEADS

DISTRIBUTED BY

Page 2

0
SIIIIIII /

Concert Line

2/

STUDIO MICROPHONES

UNI-DIRECTIONAL RIBBON MICROPHONE

Here is the Concert-Line 333, a truly fine and rugged microphone created for discriminating users
with the most exacting professional requirements. Here, indeed, is a maior advance in microphone
development and design! This small, ultra-cardioid 333 is highly recommended for motion-picture
studios, TV studios, radio stations, professional recording, and all other uses where quality require-
ments are of the highest. Here is performance never before achieved in such a small and slender
microphone! Here is ruggedness and reliability! Here is matchless beauty and striking design to appeal
to users who demand the finest! The 333 is ultra-cardioid, uni-directionaI-reduces the pickup of
random noise energy by 73%-prevents the pickup of moving props, scuffling feet and moving
"dollies," so common when conventional broadcast microphones are used. Following are the features
that make the 333 Concert-Line so outstanding in performance, so dependable in operation: (I)
patented, world-famous Uniphase" system; (2) a true ultra-cardioid pickup pattern; (3) horn-loaded
ribbon transducer provides extended smooth response, production uniformity guaranteed to plus or
minus 2V2 db, ISO-15,000 c.p.s.; (4) multi-impedance switch; (5) voice-music switch; (6) anti-Pff filter
screen; (7) Shure self-adiusting lifetime" swivel; (8) high output; (9) sturdy, one-piece metal case;
(IO) vibration-isolation unit mounted in live rubber; (II) Cannon XI. connector. All these important
features, plus the striking design of the Concert-Line "333, make it ideal for critical studio applica-
tions that call for the highest possible broadcast quality, small size and matchless beauty--plus the
ability to withstand the rough work-a-day handling by the sound crew. The 333 has two-tone
"Baked Bronze" non-reflecting finish. Head dimensions: Width, I 1/8"; height, 3 9/16; depth, I 33/4.

Model "333"
Concert-Line

IMPEDANCE TABLE I OUTPUT LEVEL Model 533
low-50 ohms l 60 db below T Milliwatt
per 10 microbar signal grofdscufld
. t l
Medium-I50 ohms 59 db below I Milliwatt . 0. an MODEL I LIST PRICE
. per IO microbar signal l", Pm: 500 "333" I $250.00

High-Medium-2SO ohms

OMNI-DI RECTIONAL DYNAMIC MICROPHONE

,w'

The new Concert-Line 525" is an exceptionally fine probe microphone of broadcast quality. It features:

(I) frequency response 4045.000 c.p.s., production uniformity guaranteed to plus or minus 2V2 db;

(2) a moving-coil mounted in a highly efficient magnetic structure; "Alnico V magnet; (3) multi-

impedance switch; (4) high output; (5) long life "Duraceustic" diaphragm-specially designed to

withstand moisture, heat, cold and physical shock. The "525 is furnished with a 20 ft., two-conductor,
3x rubber-covered, shielded cable with Cannon XL-3-II connector attached; swivel adapter; adiustable
' lavalier assembly (cord and clip), and a belt clip assembly. The 525" Concert-Line has a non-reflect-
ing Baked Bronze" finish-which makes it blend into the background, giving the spotlight to the
performer. Body diameter, I"; length, 8 I7/32.

IMPEDANCE TABLE OUTPUT LEVEL
so ohms 3°"; 53? MODEL lIST PRICE I
___. 6! db below I Milliwatt °° ° ,, ,,
Model 525 _l5°fl lper 10 microbar signal Desk Stand 25 00°00 l
Concert-line 250 ohms l List Price: $I5.00

BI-DIRECTIONAL GRADIENT MICROPHONE

This rugged, high fidelity, multi-impedance microphone is widely used for television, radio broadcasting,
professional recording and high-fidelity uses. The "300" reduces reverberation and the pickup of random
noise by 66%. The 300 combines the best features of conventional velocity microphones with advanced
acoustic design-including an anti-PFF filter screen. Its bi-directional polar pattern is effective over
a broad frequency range. It provides sound pickup at the front and rear of the microphone, but
greatly reduces pickup at the sides. One of the outstanding features of the 300 is the fact that the
microphone can be placed at a 73% greater distance from the performer than is possible with omni-
directional microphones! The 300" has a non-reflecting Baked Bronze" finish, so it blends into the
background, gives the spotlight to the performer. The "300" has a readily accessible Voice-Music
switch, vibration-isolation unit mounted in live rubber, and a multi-impedance switch, providing low
medium and high impedance. Extended response, production uniformity guaranteed to plus or minus
2V2 db, 40-I5,000 c.p.s. Dims.: Ht., 6; Wth., I 7/16"; Depth, I 3/32.

IMPEDANCE TABLE OUTPUT LEVEL

L 35 so It 59 db b I I M'll n Mal" $33

- - eow I mm
0 MB per 10 microbor signal BfOOdCOBP MODEL LIST PRICE
H u M-ISO-250 ohms 60 db below I Milllwatt Desk Stand "

ngtirt-zlll: per IO microbar signal 3' Price: $15.00 300 $150.00

H-Hioh 7 57 db below I volt per microbar
