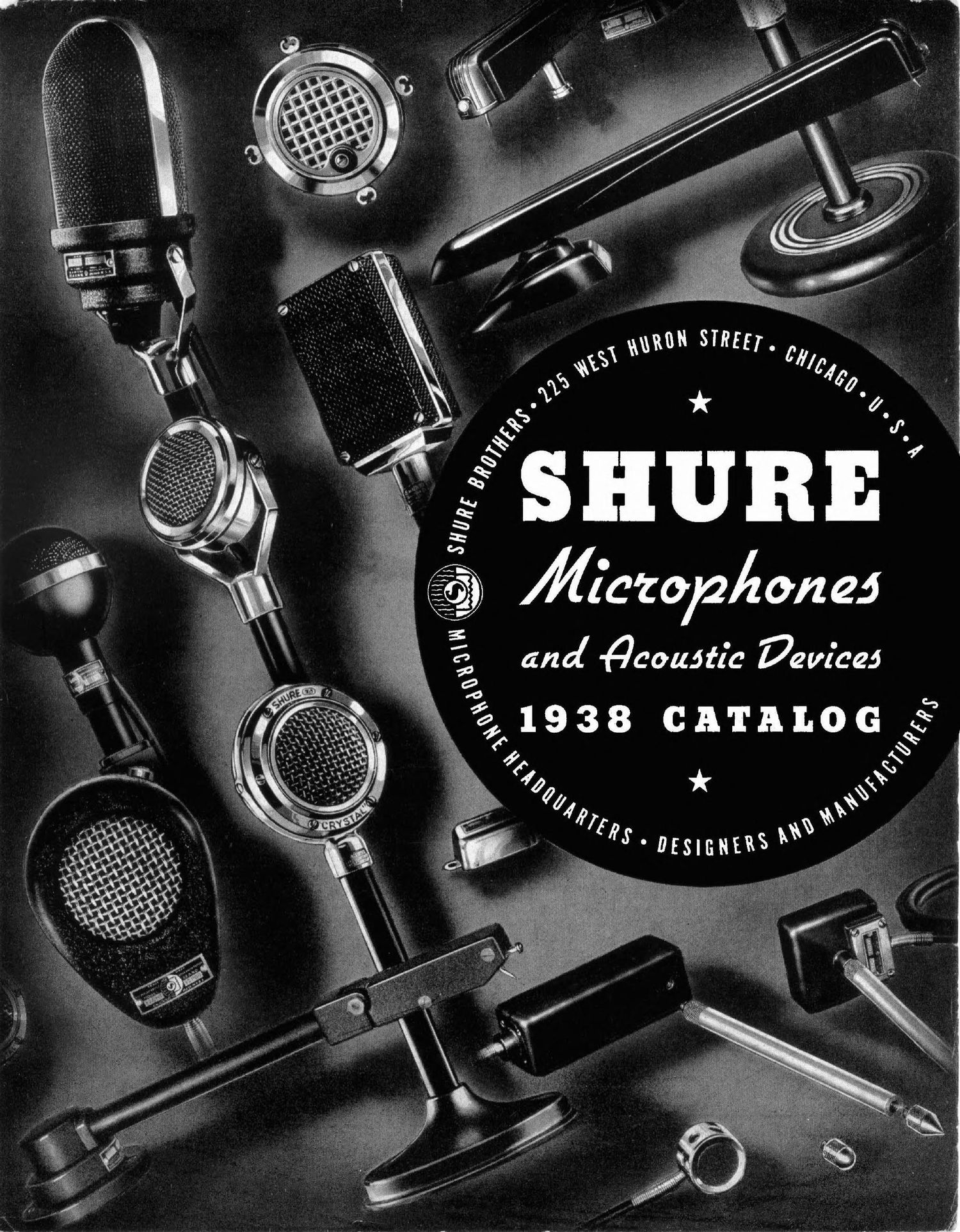

Shure 1938 catalogue

Page 2

§HURE etyjta'l

SHURE "ULTRA" Wide-Range CRYSTAL MICROPHONES

Shure ULTRA offers the
highest performance available
today in general purpose micro-
' phones. Because of this, UL-
TRA microphones are standard equipment with nation-
ally-known sound-equipment manufacturers and eminent
sound engineers everywhere.

With These 8 Exclusive Features!

(1) Ultra" Wide-Range reproduction from 30 to 10,000 cycles. (2)
Dual-Drive, High-Capacity Grsfoil Crystal. (3) Complete Barometric
Compensation. (4) Internal Screen-Protected Cartridge. (5) Cr stal
Triple Moisture-Sealed" by new exclusive special process. (6) igb
output level 52 db below 1 volt per bar. (7) New acoustically-correct
single high-efficiency Curvilinesr Diaphragm. (8) Beautifully styled
new semi-nondirectional and sent-directional models in Spherical.
Swivel and Grille-Type" case designs.

WIDE-RANGE

Model 700A. A small compact unit with swivel arrangement for use where tiltin of
migrophfnelhetiiddisidesnred. Cable may title ran inside or outside stand tubing. Finished
in rig po is e c romium p ate overa . iameter, 2t . Co ' .
conductor shielded cable. Code: Ruret. A mplete thh 7 ft. single

List Price ............................................................ $25

Model 700A-25 FT. Cable length. 25 ft. Code: Rurel. List Price ............. $26.30

Model 70lA. A Grille-Type" Microphone, styled to meet the most critical taste and
designed to give outstandingly high-quality reproduction. Attractive rubber~black
screens With contrasting chromium fittings. 311,9" high, 2% wide, 1 )4" deep. Complete
With 7 ft. Single-conductor shielded cable. Code: Rurev.

List Price ............................................................ 25

Model 701A-25 FT. Cable length, 25 ft. Code: Rured. List Price. . . . . ...... 52830

Model 702;. A small .Spherical Microphone with Semi-nondirectional pickup . . . a
feature which is espec1all¥ valuable because it permits placement of a group around
the Microphone Without requency discrimination. Beautiful rubber-black finish with

circular chromium band. Diameter, 2%". Complete with 7 ft. single-conductor shielded
cable. Code: Burez.

List Price ............................................................ $25
Model 702A-25 FT. Cable length, 25 ft. Code: Rureg. List Price ........... $26.80

031|V13ll

..8133IIS VIVlln

"Till-POLAR" Controlled-Direction
Crystal Micmphone!

1. UN! - DIRECTIONAL
2. Bl - DIRECTIONAL
3. NON-DIRECTIONAL

All in ONE Microphone

After years of research in the laboratories
of Microphone Headquarters, the dis
covery of a practical method of obtaining
velocity or pressure-gradient operation
in a crystal microphone now makes pos-
sible Controlled-Direction responsev-a
feature never before available in any mi-
crophone! By electrically combining the output of the velocity"
element with a pressure" element, and by using the elements separately.
the following directional characteristics are instantly available through
a 3-point selector switch.

1. Uni-Directional. (velocity" plus "pressure") Wide-angle front-side
pickup-dead at rear. Cuts out audience noise, reduces reverberation
energy pickup 66% . eliminates feedback. The first economical micro-
phone of any type to give you this feature! Output level 63 db below
1 volt per bar.

2. Iii-Directional. (velocity alone) Typical velocity characteristic
with pickup from front and back-dead at both sides. Allows artist
placement front and back. reduces reverberation energy pickup 66%,
prevents feedback. The first practical crystal microphone to give you
this feature! Output level 68 db below 1 volt per bar.

3. Non-Directional. (pressure" element alone) Full 360-deg1ee all-
around pickup for group presentations and general applications. Out-
put level 53 db below 1 volt per bar.

Smooth high-quality wide-range response from 40 to 10.000 cycles
under all operating conditions. Triple moisture-sealed Grafoil Bimorph
crystals. Swivel-type mount with standard 5/5"-27 thread. Case 6"
high by 2 " overall diameter. Finished in black morocco-grain and
chrome. Ship. Wt. 2% lbs.

Model 720A. Tri-Polar Crystal Microphone. Complete with 25 ft,
single-conductor shielded cable. Code: Rulak.

List Price ........................................... . $392
Patent Applied F01

SHURE BROTHERS-225 W. HURON ST.- CHICAGO, U.S.A.-CABLE:SNUREMICRO
DESIGNERS AND MANUFACTURERS OF MICROPHONES ANO ACOUSTIC OEVICES

Model 85A High-Fidelity Sound-Cell
Crystal MicrOphone

A true high-fidelity non-directional microphone
with a response characteristic within a total
range of only 5 db from 30 to 10,000 cycles.
Meets the most critical requirements in appli-
cations calling for the very highest quality sound
reproduction. Output level 68 db below one volt
per bar (approximately 18 db below typical
diaphragm types). Attractive Grillevape
case, finished in rich rubber-black with chromi-
um plated fittings. Shipping weight, 1 1b. Com~
plete with 7 ft. single-conductor cable.

Model 85A. Code: Ruleb. s

List Price .......................... 45

Model 70H

The Shure 701-! sets the standard of performance"
for diaphragm-type crystal microphones. Adopted by
leading Sound-Equipment lManufacturers. Curvi-
linear" diaphragm and Bimorph crystal, "Canti-
lever actuated. Output level 48 db below 1 volt per
bar. Beautiful cast case, chromium plated overall.
Mounts direct on any Shure Stand 5/s"-.27 thread.
Cable may be brought through stand tubing or out-
side as desired. Convertible to a Hand Microphone
with A40A Handle. Complete with shielded singlev
conductor rubber jacketed cable.

Model Cable Length Code Shpg.Wt. List
70H 7 feet Rural) 1% lbs. $22.50
70H-25FT. 25 feet Rurov 2 lbs. $24.30

Model 76A Lapel Type

A new, lighter, more efficient Crystal Lapel
Microphone which faithfully reproduces the
' speaker's voice. Small, light, and inconspicuous
-barely over 1 ounce in weight and less than
2 inches in diameter. New improved clip holds
microphone securely to lapel. Rubber black
finished aluminum case. Complete with 25 ft. shielded single-conductor
cable. Ship. Wt. 34 1b.

Model 76A. Code: Rulop.
List Price ............................................... $25

Model 76E. Miniature Crystal Microphone. For concealed placement
and general applications. Same as Model 76A but without clip. Complete
with 7 ft. cable. Code: Ruled.

List Price ............................................. $22.50
