Shure 1936 catalogue

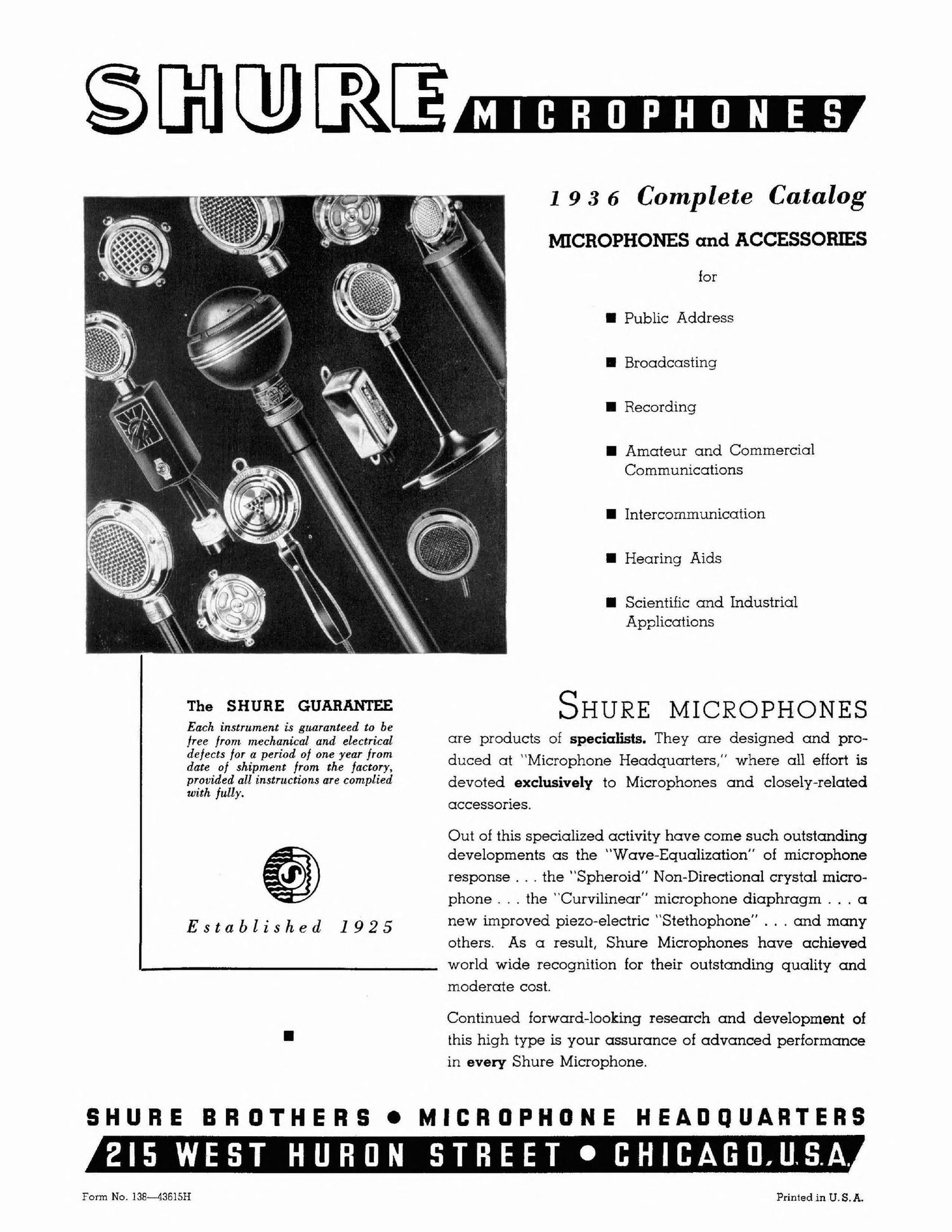

Page 1

The SH URE GUARANTEE

Each instrument is guaranteed to be
free from mechanical and electrical
defects for a period of one year from
date of shipment from the factory,
provided all instructions are complied
with fully.

Established 1925

1 9 3 6 Complete Catalog
MICROPHONES and ACCESSORIES

for

I Public Address
I Broadcasting
I Recording

I Amateur and Commercial
Communications

I Intercommunication
I Hearing Aids

I Scientific and Industrial
Applications

SHURE MICROPHONES

are products of specialists. They are designed and pro-
duced at Microphone Headquarters, where all effort is
devoted exclusively to Microphones and closely-related
accessories.

Out of this specialized activity have come such outstanding
developments as the Wave-Equalization" of microphone

response . . . the Spheroid Non-Directional crystal micro-
phone . . . the Curvilinear microphone diaphragm . . . a
new improved piezo-electric "Stethophone" . . . and many

others. As a result, Shure Microphones have achieved
world Wide recognition for their outstanding quality and
moderate cost.

Continued forward-looking research and development of
this high type is your assurance of advanced performance
in every Shure Microphone.

SHURE BROTHERS O MICROPHONE HEADQUARTERS

2|5 WEST HURON STREET 0 BHIBAGI].U.S.A.

Form No. l38-43615H

Printed in U. S. A.

Page 2

©EHICUERE-

Adopted by Leading Sound

Equipment Manufacturers

CARBON TYPE

Model SB Two-Button

Advanced engineering and
controlled quantity prov
duction have made possible
this full'size Two'Button
Microphone with quality
performance never before
available at such extremely
low cost! Designed for
spring suspension. Rigid
cast frames and builtrin
protective grill, finished in
bright nickel plate overall. Has the well'known
Shure Quickway" Hooks. May be used as a
single'button min- . Frame diameter, 3".
Net weight. 1/7, lb. Shipping weight,_ 3/4 lb.
Model BB. TwoButton. Code: Rucw. 3550
List Price ...........................

Model JOB. Convertible Hand Nlicro
phone. Convenient general purpose
P.A. microphone. convertible from
hand to 33 type for stand mounting by
removing mounting ring and inserting
four "Quickway" Hooks. Black enam-
eled handle. Overall length. 87/3.
Net weight. 3/; lb. Shipping weight,
1 lb. Complete with 6 feet of three-
conductor cable and 4 Quickway
Hooks. Code: Rucor. 5'0

List Price ....................

Model 1035.. Convertible Hand Mi-
crophone. Same as Model 108 but in»
eludes a concealed switch which auto: .
matically cuts off the microphone when it is placed
in a horizontal position. 3 '50
Code: Rucos. List Price ...............

Model 3A Two-Button

A small lowcost twOvbutton microphone. Suitable
where voice reproduction is the main requirement.
Screen'protected diaphragm. Nickel plated. Frame
diameter, 21/4". Net weight, 51/2 ozs. Shipping
weight 3/. 1b.

Model 3A. Tw0vButton Microphone. $650
Code: Rucim. List Price .............

Model 2A. SinglevButton Microphone. Same size
and appearance as Model 3A. $600
Code: Rucil. List Price .............

Model SB Two-Button

A full/size two'hutton mi,
crophone (diameter overall
33/4, thickness lfix,weight
151/; 015.). Regular full'size
precision adjustable buttons
and special diaphragm assure
exceptional quality of repro
duction. Ideal for low cost
sound systems. Attractive
modern design, finished in
chromium plate. Screenr
protected diaphragm and Quickway Hooks.
Shipping weight. 11/4 lbs. 3'000
Model 53. Code: Rudt. List Price.

Model 223 Two-Button

Embodies refinements formerly found only in more
costly instruments. Genuine cathodesputtercd
goldvspot diaphragm. carefully stretched and scienr
tifically damped. Chromium latcd. Net weight.
1 lb. Shipping weight. 11/; l s. :25
Model 223. Code: Rudip. List Price. . ..

Model 27N Two-Button

Professional type two'button microphone in every
respect. Beautiful case.richly finished in chromium
plate. Thickness 13/3. Diameter overall 33/4.
Net weight, 11/; lbs. Shipping weight, 13/4 lbs.
Model 27N. Code: Rubal. 33150

List Price .........................

3 Model 33N Two-Button

The most highly developed
two . button microphone.
Used in Broadcast Stations
because of its excellent
frequency response. rug:
gedness and dependability.
Massive brass frames.
Dural diaphragm with genv
uine cathode'sputtered gold
spots. carefully stretched
and aged. Chromium
plated. Thickness I'M. Diameter overall 43%.
Net weight, 2% lb. Shipping weight. 3 lb.

Model 33N. Code: Rulit. $50
List Price. . . .

C R Y 5 TA L (Piezo-Eleciric) T Y P E

Model 70H

The Shure 70H sets the stand
ard of performance for dia-
phragmtype crystal micro'
phones. Adopted by leading
SoundvKuipment Manufacturr
ers. Curvilinear diaphragm
and Bimorph" crystal. Canti'
lever" actuated. Beautiful cast
case. chromiumrplated overall.
Mounts direct on any Shure
Stand or in carbon ring. Cable
may be brought throu h stand tubing or outside
as desired. Convertibe to a Hand Microphone
with X40A Handle. Complete with removable
close'fitting" ring. 4 Quickway Hooks and
shielded singlerconductor rubber jacketed cable.

Model Cable Length Code Shpg.Wt. List

70H 7 feet Rurab 11/; lbs. $22.50
70H'25FT 25 feet Rurov 2 lbs. $24.30
70H135FT 35 feet Ruriz 21/; lbs. $25.30

Model 70HP. "Push'Pull" Crystal Microphone.
Same as 70H except cable is two'conductor
shielded. Recommended for amplifiers with push'
pull input.

Model Cable Length Code Shpg.Wt. List

70HP 7 feet Rulev 11/; lbs. $22.50
70HP25FT 25' feet Rulex 21/4 lbs. $25.20
7OHPv3SFT 35 feet Rulep 25/1. lbs. $26.70

Model A40A (formerly 71BH). Handle. Re-
movable handle which fits 70H Crystal MiCIO
phone for hand use. Shipping weight, 1/4 lb.
Code: Rurij. 3'5
List Price ............................

70H-79AC Demountctble

A complete unit consisting of the
70H Crystal Microphone with plug
attachment, and Stand Receptacle.
Instantly installed! Instantly remov'
able for safekeeping or use else'
where. Cable Strain Relief included.
Net weight, 1 1b. Shipping weight,
11/; lbs. No cable furnished.

Model 70H-79AC. $25

Code: Rm'am. List Price. . . .

Model 73A Lapel

EDGEVIEVI Highly efficient and
faithful in voice repro'
duction. due to new
Shure diaphragm deSign
and improved mechanv
ical system. Frte from
background" noise and
' vibration pick'up. Diamr
cter only 2. Wei ht, less cord. under 2 oz.!
Baked ruhbcrvblack finish. Equipped with special
spring lapel clip and 25 feet of shielded single,
conductor black mercerized cotton'covcred cords
age. Shipping weight. 3/4 lb. 525
Model 73A. Code: Rulap. List Price .....

Model 113 Two-Button
Hand Microphone

High quality two'button "close'talkr
ing hand microphone. Especially
suitable wherever the level of
crowd" or background noise is
high. Modern chromefinished case;
rubberrblack handle. Suspension eye
at top. Case diameter 3115. Length
9. Net weight, 1% lb. Shipping
weight. 1% lbs. Complete with 6 ft.
colorcoded three/conductor cord.

Model 113. Code: Rudil. S I 5
List Price ..... . . -
Model 1185. Same as 11B. but with pushbutton

switch. Code: Ruhas. S 50
List Price ............ . . . . ...... '6

Model 11C. A non close'talking" type two'
button hand microphone. s I 500

Code: Rubom. List Price .............

Model llCS. Same as Model C, but with
press'totalk switch in handle. 3'650
Code: Robot. List Price. . . . . .

Model WIOA (formerly 124). Carbon Granules.

Recommended for experimental work only. Packed
in capsule or vial. Code: Rugun. List Price. .$1

Model 708

Commumcations-Type

Specially designed for high'efficiency
voice communication in Commercial
and Amateur radiophone systems.
Doubles siderband power on impor'
tant intelligibility speech frequen'
cies-clear. crisp. powerful signals-
cuts through noise and static. No
transmitter changes#connect as you ,
would an ordinary crystal micro, '

phone. Finished in polished chromium plate and
baked rubber black enamel. Complete with in-
tegral Desk Mount and 7 feet of shielded two-
conductor, rubber'jacketed cable. Net weight, 2
lbs. Shipping weight, 21/2 lbs. 325
Model 705. Code: Rurak. List Price. . . .

Model 7OSP. Same as 708, but without Desk
Mount. Includes 7 ft. Two'ConductUr shielded
cable and 4 Quickwav hooks. Code: Rural.

List Price ......................... $22.50

Model 7OSH-25PT. Same as 7|)SP but with 23
feet of singlevconductor shielded cable.

Code: Rurap. List Price ............. $24.30
Model 70D

Shure 70" Crystal Micrty
phone Head. with the added
utility of integral two'stage
preamplifier. Invaluable for
overhead use. Mounts on
standard Shure Stands. Height
11%. Complete with two
type 76 tubes, suspension
adapter, and 12 ft. of cable.
Shipping weight, 6% lbs.
Model 700. Code: Rurad.

List 365 ,.
Model 70C

Consists of Shure 70" Crystal
Microphone Head with integral
two'stage preamplifier in attrac'
.ive. modernistic "camera type"
case. Rubber/black finish. Height
73/3. Complete with two type
'76 tubes, suspension adapter.
md 12ft. cable. Shipping weight,
. z : /Model 70C. Code: Rurac.

" g. List Price .............. $70

Model 7 C. Crystal Microphone. 70H with
Flange Type mounting as used on model 70C.
Code: Rut-it. List Price ................ 2525

Model 70E(with Remote Preamplifier)

Shure 70" Crystal Microphone
Head on 8320 Modernistic Desk
Stand. with 70A Remote two-
stage Preamplifier. High qual-
ity reproduction. Beautiful ap-
pearance. Complete with tubes.
Shipping weight. 9 lbs.

Model 70E. Code: Rurag.

List $5650

Price ................

Model 70A Crystal Preamplifier

Two'Stage preamplifier .- "
flat within 2 db from 60
to 8.000 cycles. Approxi-
mate gain 5'5 db. Fur:
nished with two type 76
tubes. Neat. trim, black , .
japanncdsteelcase. Length ' V

8, Width 3. Height 4%,". Shipping weight.

3 lbs.
Mddel 70A. Code: Ruraf. List Price. . $2150
Model 41L Power Supply

Operates from 115 volt. 5'0 to
60 cycle A.C. line and sup:
plies all voltage requirements
for all Shurc Preamplifiers and
preamplifier model Micro'
phones except 40 Series. Free .
from hum. Length 8, width
3%. height 63/4". Complete
with 84 tube. plug for microphone cable, and
A.C. cord and plug. Shipping weight, 51/0 lbs.
Model 41L. Code: Ruwis. List Price ..... $20

Model 41LZ. Same as 41L, but for 220v.. 50,60
cycles. Code: Ruwip. List Price .......... $20

SHURE Cr}
phones are
der patents
Developmen
Shure peter

Use our unique Microphone Repair Service
Write for Data Sheet on All Items

SHURE BROTHERS 215 W. HURON STREET

Data Sheets are Available
