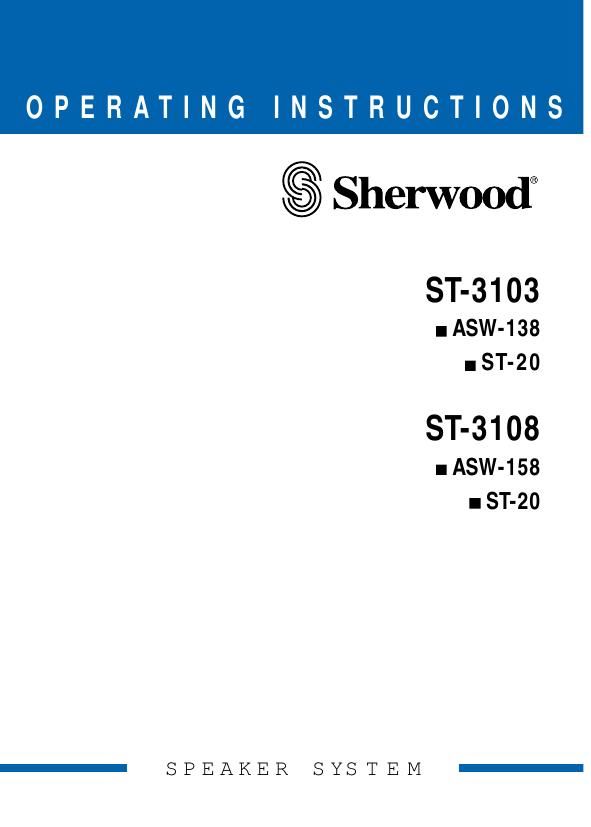

Sherwood ST 3103 ST 3108 Owners Manual
This is the 6 pages manual for Sherwood ST 3103 ST 3108 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sherwood ST 3103 ST 3108 Owners Manual (Ocr-read)
Page 1
Introduction 1 UNPACKING AND INSTALLATION READ THIS BEFORE OPERATING YOUR UNIT Congratulations on Your Purchase! Your new speaker-system is designed to deliver maximum enjoyment and years of trouble free service. Please take a few moments to read this manual thoroughly. It will explain the features and operation of your unit and help ensure a trouble free installation. Please unpack your unit carefully. We recommend that you save the carton and packing material. they will be helpful if you ever need to move your unit and may be required if you ever need to return it for service. Your unit is designed to be placed in an upright position and it is important to allow at least four inches of space behind your unit for adequate ventilation and cabling convenlence. To avoid interference with the TV picture, place this unit apart from the TV set. To avoid damage, never place the unit near radiators, in front of heating vents, in direct sunlight, or in excessively humid or dusty locations. Connect your complementary components as illustrated in the following section. CAUTION :TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol in intended to alert the user to the presence of uninsulated ¡°dangerous voltage¡±within the product¡¯s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol in intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance. WARNING To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Caution:Do not block ventilation openings and fan. FOR U.S.A. AND CANADA ¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤ 120V Units shipped to the U.S.A. and Canada are designde for operation in 120V AC only. Observe all, safety precaution with use of a polarized AC plug. However, some products may be supplied with a nonpolarized plug. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully Insert. ATTENTION : Pour eviter les choc electriques, introduire la lame la plug large de la borne correspondante de la prise et poussre jusqu¡¯au fond. FOR YOUR SAFETY FOR EUROPE AND AUSTRALIA ¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤¡¤ 230V/240V Units shipped to Australia are designed for operation on 240V AC only. To ensure safe operation, the three-pin plug supplied must be inserted only into a standard three-pin power point which is effectively earthed through the normal household wiring. Extension cords used with the equipment must be three-core and be correctly wired to provide connection to earth. Improper extension cords are a major cause of fatalities. The fact that the equipment operates satisfactorily dose not imply that the power point is earthed and that the installation is completely safe. For your safety, if in any doubt about the effective earthing of the power point, consult a qualified electrician. PAN-EUROPEAN UNIFIED VOLTAGE All units are suitable for use on supplies 230-240V AC. FOR YOUR SAFETY
Page 2
Rear Panel Controls 2 ¨çPOWER SWITCH ¡¤Press this switch to turn the power on, then this unit enters the operating mode. The color of LED turns green. ¡¤To turn the power off, press this switch again, then the power is cut off and this unit enters the power off mode. ¨èVOLUME CONTROL KNOB-FRONT Use this knob to adjust the volume level of the subwoofer ¡¤Increasing the volume level of the subwoofer excessively may impair the sound quality or damage the unit. For safe operation, set this knob to center position in general use. ¨éControl of PhaseAccording to phase, contol it from 0 to 180. If it dose not match, low sound range would be decreased. ¨êLow level Input Please connect low level input to Subwoofer input of receiver or amplifer. ¨ëAC INPUT CORD AC 220V/60Hz. Please check the voltage of yours. Plug this cord into a wall AC outlet. A S W-158 A S W-138 S T-20
