Extracted text from sherwood ax 4103 (Ocr-read)

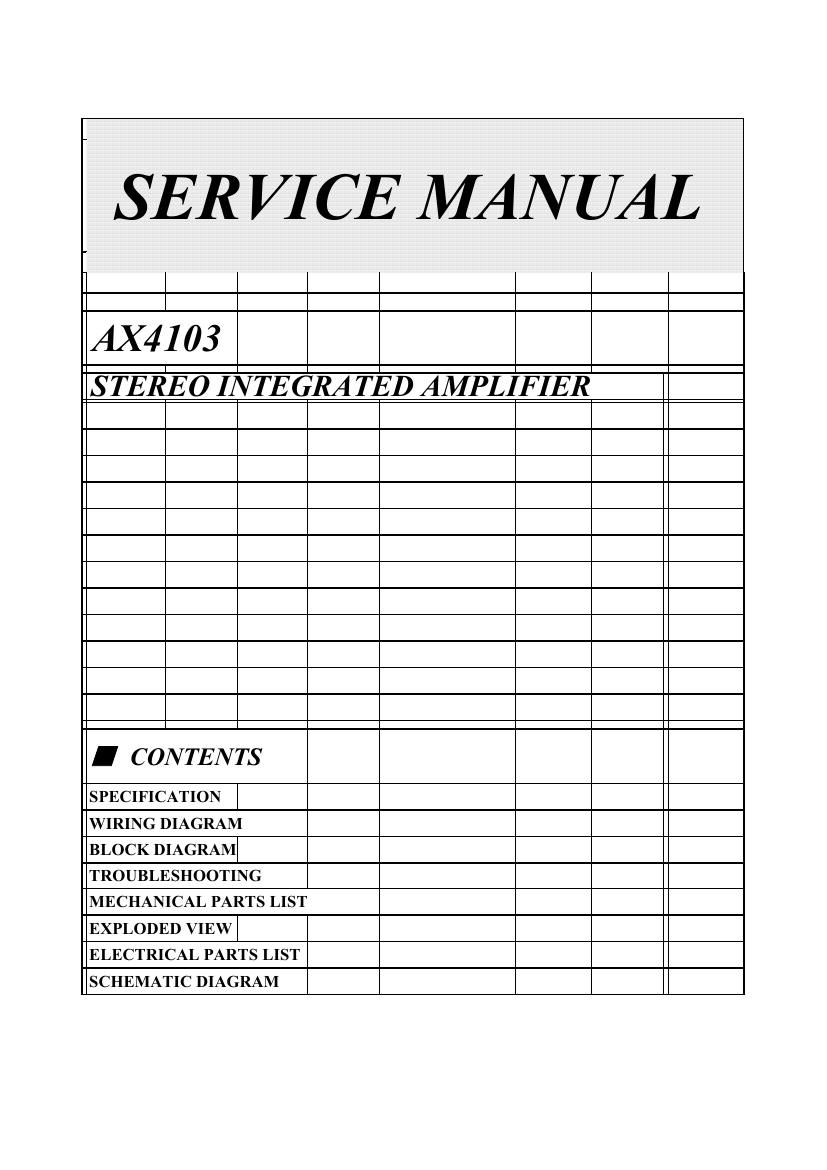

Page 1
I SER VICE MANUAL
AX4103
STEREO IN T E GRA TED AMPLIFIER
. CONTENTS
SPECIFICATION
WIRING DIAGRAM
BLOCK DIAGRAM
TROUBLESHOOTING
MECHANICAL PARTS LIST
EXPLODED VIEW
ELECTRICAL PARTS LIST
SCHEMATIC DIAGRAM
Page 2
* MECHANICAL PARTS LIST (AX4103)
4» Parts without Parts NO are not supplied.
Parts without version mentioned are common ones.
No. | DESCRIPTION | Q'TY | PARTS No.
PACKAGE
INSTRUCTION MANUAL 5707210550010
WARRANTY CARD 5727041620020
BOX, INNER CARTON 6017040120570
CUSHION, SNOW 6230043714010
FILM SOFT PE 6320040052010
POLY BAG, 330*240*0.05 6330040062010
REMOCON 8300102000010
BATTERY, DRY G67001 1 R50000
CABINET & CHASSIS
1 PANEL, FRONT 1 3067210721020
2 DECORATION, COVER 1 5127210201000
3 WINDOW, DISPLAY 1 5077210753000
4 BUTTON, 4-KEY 1 5090211461000
5 BUTTON, 3-KEY 2 5090211441000
7 BUTTON, SPKR 1 5090211451000
8 BADGE, SHERWOOD 1 5637210031010
9 INDICATOR, GUIDE LED 1 5160041003010
10 KNOB, VOLUME 1 5080210281000
11 CHASSIS, MAIN 1 3200200026010
12 CHASSIS, BACK 1 3207210866200
13 CABINET, TOP 1 3007041236060
14 FOOT PL (HS) 2 4007040201010
15 FOOT PL 2 4000040201010
16 CUSHION 1 4050044565010
17 SPACER, KNOB 6 4300040561010
21 BUTTON, POWER PUSH 1 5090211571000
A SW, ENCODER (EC16B24304) 1 G121162430400
B SW, TACT (SKQNAF) 17 G180000210030
C DISPLAY, FLT 1 K530073800010
D JACK, D65 1 G402040161330
E STOPPER CORD 1 4380040162010
F CORD ASS'Y 1 L06804009001C
G REMOCON MODULE, NJL64H380A 1 E940643800000
H 28D2390-Y, NPN 2 J5032390Y0000
I 2SD947F, NPN 2 J503947F00000
J 2SB1560-Y, PNP 2 J5011560Y0000
K TER.BOARD PUSH 8P 1 G598041680010
L TERRCA 6PIN 2 G603060046020
N POWER TRANS, 230V/50Hz 1 8200740530010
0 CABLE,FLAT CARD 1 L301181270010
P POWER SOCKET 1 G435040110000
Q TERRCA 2PIN 1 G601200430040
S POSISTOR 1 F320101020010
T SW, POWER PUSH 1 G000122006030
SCREWS
S1 SCREW, +28 3*8 B-TYPE ZNY/BH 35 B020030081B10
32 SCREW, +2S 3*8 B-TYPE BK/BH 12 B020030083B10
S3 SCREW, +2S 3*10 B-TYPE(DOT) BK/BH 8 B020030103B11
S4 SCREW, 3x18 B-TYPE ZNY/BH 6 B020030181B10
S5 SCREW, +38 4*10 P+S-WASHER ZNY/BH 4 B028940101B10
86 SCREW, +3S 4*8 BK/BH 4 B020940083B10
S7 SCREW, 3X18 B-TYPE ZNY/BH 6 B020030181B10
88 SCREW, +2S 3*8 B-TYPE ZNY/BH 1 B020030081B10
