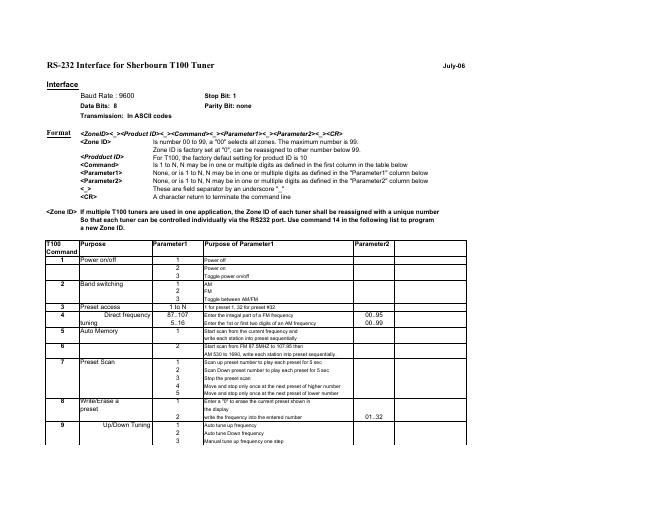

4 Manual tune down frequency one step 10Stereo/Mono mode 1 Let Tuner received signal controll the mode 2 Force the tuner into Mono mode reception (Stero mode is set each time the auto-tuning is engaged) 11* Get frequency 1 Output in ASCII, the band and frequency listening Get Preset number 2 Output in ASCII, the preset number that is displaying Get Tuning mode 3 Output in ASCII, the current tuning in "auto" or "manual" Get Receving mode 4 Output in ASCII, the current receiving mode in "Stereo" or "Mono" Get Operating Status 5 Output in ASCII, the Frequency,Preset number, Tuning Mode, Receiving Mode, Zone ID, IR ID, and Power status 12Purge EEPROM 111 Purge the EEPROM and restore it to the default setting 13MPU Reset 111 Reset the MPU to default settings 14Reserved for future use 15Program T100 Zone ID 888 Program T100 Zone ID "number" 222 return T100 Zone ID Examples: 01_10_1_1Instruct the Zone 1 T100 to power off 01_10_1_2Instruct the Zone 1 T100 to power on 01_10_1_3Instruct the zone 1 T100 to power on if it is off, or power off if it is on 12_10_3_21The Zone 12 T100 Tune into preset #21 03_10_4_107_50The Zone 3 T100 Tune to FM 107.50 MHZ 03_10_4_99_55The Zone 3 T100 Tune to FM 99.55 MHZ (The 2nd digit after the decimal is 50K/step tuning for Europe) 03_10_2_1Switch band to AM reception 03_10_4_05_80The Zone 3 T100 Tune to AM 580 KHZ 03_10_4_10_30The Zone 3 T100 Tune to AM 1030 KHZ 01_10_8_0Zone 1 T100 to empty the content of the preset currently displaying 01_10_8_15Zone 1 T100 to write the displayed frequency into preset 15 02_10_11_1When in FM 100.05 MHZ, Zone 2 T100 outputs FM10005 in ASCII string 02_10_11_5When in FM 100.05 MHZ, Zone 2 T100 outputs the following data IFM10005IIPRESET 02IITUNING AUTOIIMODE STEREOIIZONE 02IIIR 1IIPOWER ONI 2_10_11_2Simply output "21" in ASCII if the current preset listening is 21 00_10_15_888_12Program T100 Zone ID TO 12 00_10_15_222Read Zone ID 00_10_??_2Program T100 Zone IR ID to 2 00_10_??_2Read T100 Zone IR ID to 2 Notes for Programming: 1* Each time after sending a command to operate a T100, always pause for 0.5 sec then send command 11 to receive the update data feedbacks from the T100. 2 RS-232 Port Wiring Pin 2 shall be used for Rx RX Pin 3 shall be used for Tx TX CN12594837261 1 0
