Extracted text from sherbourn technologies lds 16 800 owners manual (Ocr-read)

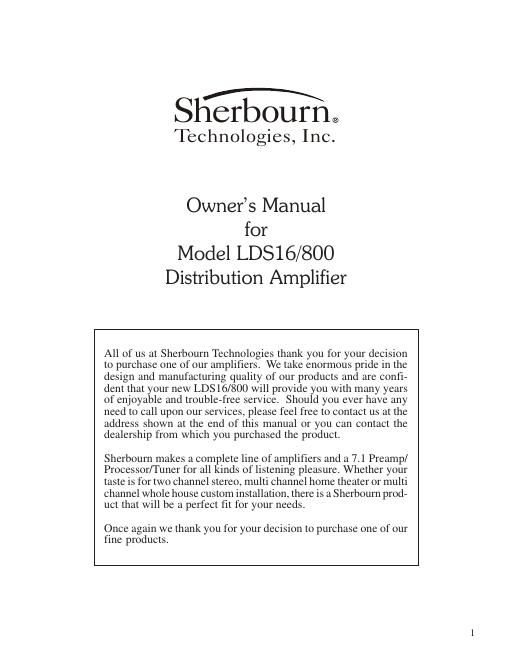

Page 1
2 Safety Instructions 1. Important Safety Instructions! Please read all the safety and operating instructions shown in this manual before operating this equipment. 2. The lightening flash within an equilateral triangle shown above is intended to alert you to the pres- ence of uninsulated dangerous voltage within the products enclosure that may be of sufficient mag- nitude to constitute an electric shock. 3. The exclamation point within an equilateral tri- angle shown above is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompa- nying this appliance. 4. Please retain this manual in a safe place for fu- ture reference about safety and operating matters. 5. Adhere to all warnings and follow all operating instructions. 6. Warning: To reduce the risk of fire or electrical shock, do not expose this equipment to rain or moisture. There are no user serviceable parts inside. Refer servicing to qualified personnel. 7. Caution: To prevent electrical shock do not use this (polarized) plug with an extension cord, re- ceptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. 8. For added protection for this product during a lightening storm or when it is left unattended and unused for long periods of time, it is recommended that you unplug the unit from the wall outlet. This will prevent damage to the product due to lighten- ing or power line surges. 9. Do not use attachments not recommended in this owners manual as they may cause hazards. 10. Locate the equipment for proper ventilation. For example, the product should never be allowed to operate while positioned on a bed, rug, sofa or any such surface where proper ventilation is not pos- sible. Nor should the unit be placed in a built-in installation such as a cabinet or armoire, etc. in such a way as to impede the air flow. Always ensure ad- equate ventilation openings - please see later com- ments regarding such an installation.11. Locate the product away from heat sources such as stoves, heat registers, radiators or other appliances including other amplifiers that produce heat. 12. Mount the equipment in a wall or cabinet only as described in this owners manual. 13. Do not use the equipment near water; for ex- ample near a bathtub, washbowl, kitchen sink, a swimming pool, a wet basement, etc. 14. Do not place the product on an unstable cart, stand tripod, bracket or table. The equipment is heavy and should it fall, it could cause serious in- jury to a person and/or serious damage to the equip- ment. Caution For Installation 1. Your Sherbourn amplifier can be placed on any table or shelf. It can also be custom installed in a rack, and/or in a piece of cabinetry or furniture of your choice. It is however, important that if the am- plifier is going to be housed in an enclosed environ- ment, that you allow for adequate ventilation. De- spite the adequately sized heatsinks built into the amplifier, it is still important that good ventilation be provided. Do not install the amplifier directly above another heat generating component such as another amplifier without adequate ventilation. 2. If your amplifier is going to be placed in an en- closed space such as an armoire, it is essential that adequate ventilation be provided. We strongly sug- gest that the shelf on which the product is being placed includes a cutout of at least twenty inches by twelve inches (50 cm by 30 cm) directly under the ventilation slots on the bottom of the amplifier. A similarly sized cutout should be made in the upper or rear wall behind the shelf so that free air can flow from beneath the unit to the outside atmosphere. Also allow a minimum of three inches (7.5 cm) free space above the product and two inches (5 cm) on either side of the product. This combination of space will allow for a free flow of circulating air to help keep the amplifier from overheating. If your cabinet in- cludes a number of products, it may be advisable to install a quiet fan to assist the cooling process. 3. The dealership from which you purchased the product is an expert on custom installation proce- dures and can provide invaluable advice to help you make an aesthetically pleasing and trouble free in- stallation.
Page 2
3 Caution For Connections 1. Connect this equipment only to the type of AC power source as marked on the unit. Always route AC power cords so they are not likely to be walked on, or tripped over, or where they may be pinched by items placed on or against them. Always pay particular attention to cords at plugs and/or conve- nience receptacles, and at the point where they exit from the product. 2. Do not defeat the inherent design features of the polarized plug. Non polarized line cord adapters will defeat the safety provided by the polarized AC plug. If the plug should fail to fit, contact your elec- trician to replace your obsolete outlet. Do not de- feat the safety purpose of the grounding-type plug. If you use this product in a country which only has two slotted receptacles in the house, you must use a three-pin adapter plug to earth ground which is the E (earth pin) of the power cord connected to this product. 3. Do not overload wall outlets, extension or inte- gral convenience receptacles, as this could result in a risk of fire or shock. Operating Voltage The LDS16/800 amplifier is factory-set for 110V, 120V or 230V AC operation at either 50 or 60 Hz, according to the country for which the unit was manufactured (230V in European Union countries, in compliance with CE regulations). The operating voltage cannot be changed by the user and any at- tempt to do so will void the warranty. Care of the Product Clean the product by dusting with a dry cloth. Do not permit objects of any kind to be pushed and/or fall into the product through the enclosure openings. Front Panel Description The front panel houses the main Power ON/OFF switch. A blue LED will illuminate when the LDS16/800 is ON and will remain illuminated re- gardless of the Standby mode of any of the six in- dividual stereo amplifiers; the LED will only extin- guish once the Power ON/OFF switch is in the OFF position or when the LDS16/800 is disconnected from its electrical outlet. Rear Panel Connections The LDS16/800 has been designed to provide mul- tiple stereo zones with identical performance and features. The following descriptions apply to all zones. The connections of the audio signal between your preamp/control center and your LDS16/800 will be made discretely via cables from the outputs of your preamp to the gold plated inputs of your LDS16/ 800. Please ensure that the cables are installed for each channel as described on the following pages.
