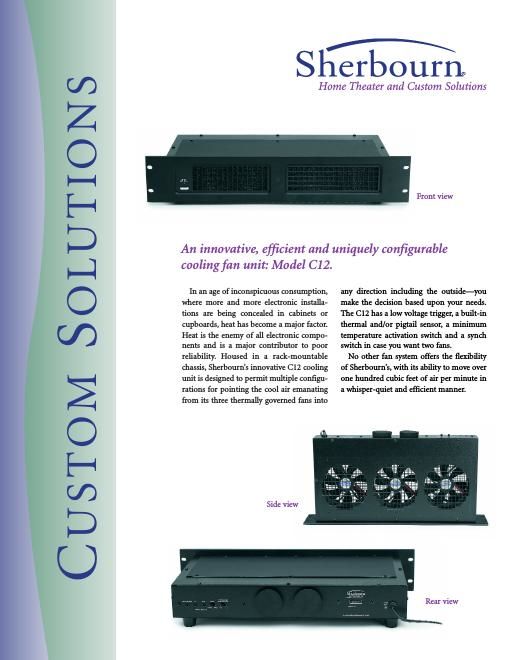

FEATURES AND SPECIFICATIONS: C-12 Cooling Unit - Housed in a 2" high rack-mountable chassis - Contains three whisper-quiet 4.75 inch fans - Features an embedded thermal sensor - Front panel has a master power switch and blue LED lights - Front panel contains an air filter to filter incoming air should a front intake be operational - Rear panel has a 12 volt trigger, a two-position switch for setting the minimum starting temperature switch, a synch switch should a particular installation require two fans, an input to accept the pig tail thermal sensor and two exhaust ports - Minimum temperature start switch can be set to either 95 or 194 degrees Fahrenheit - Includes a magnetic pig tail thermal sensor for use when one wants to measure the tempera- ture at the hot spot of the installation. When used, this sensor will over-ride the one embedded in the chassis - Can be mechanically configured to allow the air flow to be front exhaust, rear exhaust, top exhaust with a front entry or top exhaust with a bottom entry - Contains two exhaust ports should the hot air need to be directed to the outside - Optional exhaust hose kit for use in directing the air to the outside SPECIFICATIONS: Carton weight 9 lbs/4.1 kilograms Configuration Three 3.75" thermal sensing fans that can be configured to intake or exhaust 12 volt trigger Selectable Thermal Switch:The three fans can activate at two different ambient room temperatures Synch switch Allows two units to operate at similar speeds Pig-Tail remote temp. sensor Governs fan speed from the hot spot of the installation Optional exhaust hose kit Allows hot air to be drawn from the installation to an alternative location Chassis Dimensions 15.7" W x 8.75" D x 2.25" H 400mm W x 222mm D x 57mmH Rack mount panel dimensions 19"W x 3.75"H (attaches to front panel of fan chassis) 483mm W x 95mm H SHERBOURN TECHNOLOGIES INC. 19/3A Sterling Road - North Billerica, MA 01862 USA Tel: 978-663-7385 Fax: 978-663-7389 www. Sherbourn.com In accordance with our policy of continual improvement, we reserve the right to change the specifications without notice. Printed in U.S.A. S PECIFICATIONS
