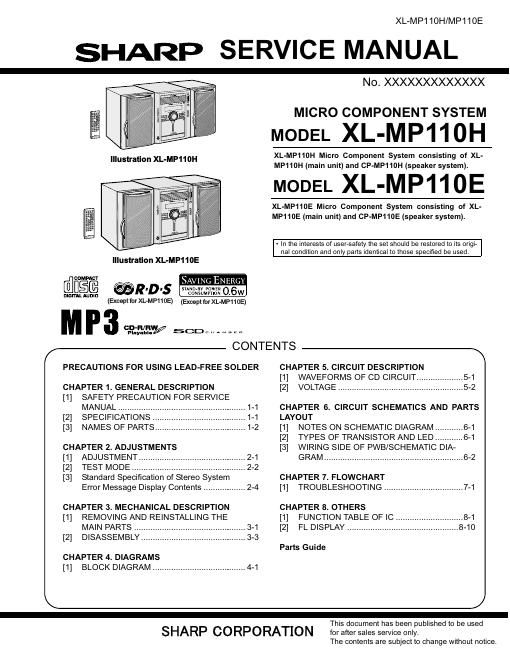

XL-MP11OH/MP11OE

SHARP SERVICE MANUAL

Illustration XL-MP11OE

@IEIE @R-D-s

DIGITAL AunIn
(Except for XL-MP110E)

SAVING ENERGY
"Ac,ééé'mlfité't 0.6w

(Except for XL-MP110E)

cififiéfi'ew/ 5CD .. A N ..

/

-
SHARP CORPORATION

PRECAUTIONS FOR USING LEAD-FREE SOLDER

CHAPTER 1. GENERAL DESCRIPTION

[1] SAFETY PRECAUTION FOR SERVICE
MANUAL ....................

[2] SPECIFICATIONS ..

[3] NAMES OF PARTS...

CHAPTER 2. ADJUSTMENTS
[1] ADJUSTMENT ..
[2] TEST MODE .....
[3] Standard Specification of Stereo System

Error Message Display Contents .................. 2-4

CHAPTER 3. MECHANICAL DESCRIPTION
[1] REMOVING AND REINSTALLING THE
MAIN PARTS .......
[2] DISASSEMBLYM
CHAPTER 4. DIAGRAMS
[1] BLOCK DIAGRAM .....

N0. XXXXXXXXXXXXX

MICRO COMPONENT SYSTEM

MODEL XL-MP110H

XL-MP110H Micro Component System consisting of XL-
MP110H (main unit) and CP-MP110H (speaker system).

MODEL XL-MP110E

CONTENTS

XL-MP110E Micro Component System consisting of XL-
MP110E (main unit) and CP-MP110E (speaker system).

- In the interests of user-safety the set should be restored to its origi-
nal condition and only parts identical to those specified be used.

CHAPTER 5. CIRCUIT DESCRIPTION
[1] WAVEFORMS OF CD CIRCUIT.
[2] VOLTAGE

CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS
LAYOUT

[1] NOTES ON SCHEMATIC DIAGRAM
[2] TYPES OF TRANSISTOR AND LED
[3] WIRING SIDE OF PWB/SCHEMATIC DIA-

..6-1
..6-1

GRAM ............................................................ 6-2
CHAPTER 7. FLOWCHART
[1] TROUBLESHOOTING .................................. 7-1
CHAPTER 8. OTHERS
[1] FUNCTION TABLE OF IC ...... 8-1
[2] FL DISPLAY ......................... ....8-10
Parts Guide

/

This document has been published to be used
for after sales service only.

The contents are subject to change without notice.

Page 2

XL-MP110H/MP110E
PRECAUTIONS FOR USING LEAD-FREE SOLDER

1. Employing lead-free solder

"MAIN,D|SPLAY,TERM|NAL,SWITCH,POWER,JACK,TUNER,CD MP3,CD MOTOR (PWB ONLY),

CD CHANGER MOTOR (PWB ONLY) PWB" of this model employs lead-free solder.

The LF symbol indicates lead-free solder, and is attached on the PWB and service manuals. The alphabetical character
following LF shows the type of lead-free solder.

IEa

S n-Ag-CU Indicates lead-free solder of tin, silver and copper.

2. Using lead-free wire solder
When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder
may cause damage or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 °C, we recommend you to use a
dedicated soldering bit, ifyou are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station
or service branch in your area.

Example:

3. Soldering
As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 °C which is higher than the conventional lead solder by 40 °C,
and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of
time. However, Since the land may be peeled off or the maximum heat-resistance temperature of parts may be exceeded,
remove the bit from the PWB as soon as you confirm the steady soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corrected. Make sure to turn on and off the
power of the bit as required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use
of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

Be careful when replacing parts with polarity indication on the PWB silk.
Lead-free wire solder for servicing

Ref No. Parts No. Description
PWB-A 92LPWB6289MANS MAlN (A1),D|SPLAY (A2),TERMlNAL (A3),SWITCH (A4) [XL-MP1 10H]
PWB-A 92LPWB6291MANS MAIN (A1),DISPLAY (A2),TERMlNAL (A3),SWITCH (A4) [XL-MP1 10E]
PWB-B 92LPW86289PWRS POWER (B1),JACK (BZ) [XL-MP1 10H]
PWB-B 92LPW36291PWRS POWER (B1),JACK (BZ) [XL-MP1 10E]
PWB-C 92LPWB6289TUNS TUNER [XL-MP110H]
PWB-C 92LPW86291TUNS TUNER [XL-MP110E]
PWB-D 92LPWBGZSOCDUS CD MP3

PWB-E QPWBF0027AWZZ CD MOTOR (PWB ONLY)
PWB-F QPWBF1055AWZZ CD CHANGER MOTOR (PWB ONLY)
