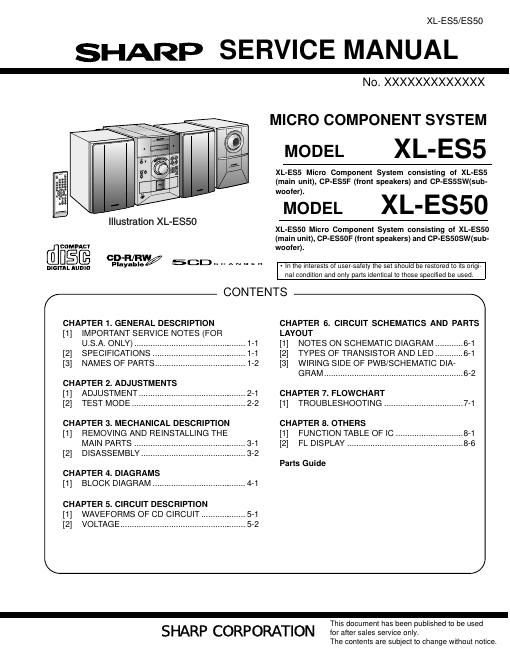

SHARP SERVICE MANUAL

No. XXXXXXXXXXXXX

MICRO COMPONENT SYSTEM

. "r .8 @ MODEL XL-ES5

8: «as;

39 @ XL-ES5 Micro Component System consisting of XL-ESS
E _ . (main unit), CP-ESSF (front speakers) and CP-ESSSW(sub-
@ woofer).

MODEL XL-ES50

XL-ESSO Micro Component System consisting of XL-ESSO
(main unit), CP-E850F (front speakers) and CP-ESSOSW(sub-

3 y
%

Illustration XL-ESSO

COMPACT

woofer).
CD-R/RW
DIGITAL AUDIO Playable/ 50D C H A N G K " - Inthe interests of user-safety the setshould be restored to its origi-
nal condition and only parts identical to those specified be used.

/ CONTENTS \

CHAPTER 1. GENERAL DESCRIPTION CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS

[1] IMPORTANT SERVICE NOTES (FOR LAYOUT

U.S.A. ONLY) ............ [1] NOTES ON SCHEMATIC DIAGRAM

....6-1
[2] SPECIFICATIONS. .6-1
[3] NAMES OF PARTS...

[2] TYPES OF TRANSISTOR AND LED
[3] WIRING SIDE OF PWB/SCHEMATIC DIA-
GRAM... ....6»2

CHAPTER 2. ADJUSTMENTS

[1] ADJUSTMENT... CHAPTER 7. FLOWCHART

[2] TEST MODE ...... [1] TROUBLESHOOTING .................................. 7-1
CHAPTER 3. MECHANICAL DESCRIPTION CHAPTER 8. OTHERS
[1] REMOVING AND REINSTALLING THE [1] FUNCTION TABLE OF IC

MAIN PARTS ......... [2] FL DISPLAY .........................

[2] DISASSEMBLY .....
Parts Guide

CHAPTER 4. DIAGRAMS
[1] BLOCK DIAGRAM ........................................ 41
CHAPTER 5. CIRCUIT DESCRIPTION
[1] WAVEFORMS OF CD CIRCUIT ..... 51
[2] VOLTAGE ............................................ 5»2

\ /

This document has been published to be used
SHARP CORPORATION for after sales service only.

The contents are subject to change without notice.

Page 2

XL-ESS/ESSO

CHAPTER 1. GENERAL DESCRIPTION

I FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER TO THE OPERATION MANUAL. I

[1] IMPORTANT SERVICE NOTES (FOR
U.s.A. ONLY)

BEFORE RETURNING THE AUDIO PRODUCT

(Fire & Shock Hazard)

Before returning the audio product to the user, perform the following
safety checks.

1 .

Inspect all lead dress to make certain that leads are not pinched or
that hardware is not lodged between the chassis and other metal
parts in the audio product.

. Inspect all protective devices such as insulating materials, cabinet,

terminal board, adjustment and compartment covers or shields,
mechanical insulators etc.

. To be sure that no shock hazard exists, check for leakage current in

the following manner.
Plug the AC line cord directly into a 120 volt AC outlet.

Using two clip leads, connect a 1.5k ohm, 10 watt resistor paral-
leled by a 0.15pF capacitor in series with all exposed metal cabinet
parts and a known earth ground, such as conduit or electrical
ground connected to eanh ground.

Use a VTVM or VOM with 1000 ohm per volt, or higher, sensitivity
to measure the AC voltage drop across the resistor (See diagram).

Connect the resistor connection to all exposed metal parts having a
return path to the chassis (antenna, metal cabinet, screw heads,
knobs and control shafts, escutcheon, etc.) and measure the AC
voltage drop across the resistor.

[21 SPECIFICATIONS

I General

Power source AC 120 V, 60 Hz

Power consumption 98 W

Dimensions Width: 6-5/16" (160 mm)
Height: 9-7/16" (240mm)
Depth: 11-13/16" (300 mm)

Weight 10.8 lbs. (4.9 kg)

I Amplifier

TO EXPOSED

METAL PARTS

All check must be repeated with the AC line cord plug connection

reversed.

Any reading 010.3 volt FIMS (this corresponds to 0.2 milliamp. AC.) or
more is excessive and indicates a potential shock hazard which must

9%

VTVM
-OAC SCALEO-

1.5k ohms
10W

0.15pF

TEST PROBE CONNECT TO

GROUND

be corrected before returning the audio product to the owner.

I Tuner

Frequency range

FM: 87.5 - 108 MHZ
AM: 530 - 1,720 kHZ

I Front speaker

Type

2-way type speaker system (Magnetic
shield)

Super Tweeter
4" (10 cm) woofer

I Specifications for this model are subject to change without prior notice.

Output power Front speakers: 30 watts minimum FI'C Maximum input 60 W
per channel into 6 ohms from 100 Hz to 20 power
kHz, 10% total harmonic distortion Rated input power 30 W
Subwoofer: 40 watts minimum RMS into 6
I d h
ohms from 70 Hz to 130 Hz, 10% total har- mpe ance 6? ms H
monic distortion DimenSIons nVIdtrrI;_6é17/21él16254gm)
Output terminals Front speakers and subwoofer: 6 ohms ngh:'6_-1/ .. (1(65 mag)
Headphones: 16 - 50 ohms (recommend- W - ht 4 4 lb 2 0 k / h
ed: 32 ohms) eIg ' S' I ' g) eac
Input terminals Video/Auxiliary (audio signal): 500 mV/47 k I Subwoofer
ohms Type 5-1/ " (13 cm) subwoofer system (Magnet-
. CD player Ic shield)
Type S-disc multi-play compact disc player r:;:lum Input 80 W
Signal readout Non-contact, 3-beam semiconductor laser Rated input power 40 W
pickup
I d 6 h
DIA converter 1-bit D/A converter mpe ance I) ms
DimenSIons Width: 6-5/16" (160 mm)
Frequency response 20 - 20,000 Hz Height: 9-7/16" (240 mm)
Dynamic range 90 dB (1 kHz) Depth: 9-7/16" (240 mm)
Weight 6.2 lbs. (2.8 kg)/each

KNOWN EARTH
