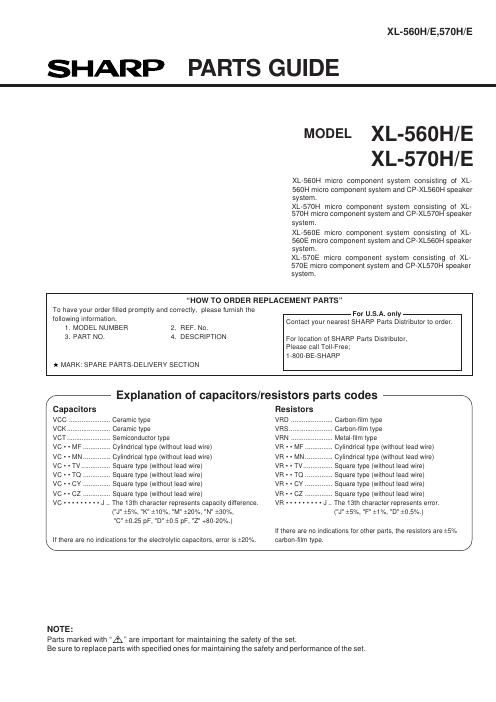

Page 1

XL-560H/E,570H/E

SHARP PARTS GUIDE

MODEL XL-560H/E
XL-570H/E

XL-560H micro component system consisting of XLA
560H micro component system and CP-XL560H speaker
system.
XL»570H micro component system consisting of XL-
570H micro component system and CP-XL570H speaker
system
XL-560E micro component system consisting of XLA
560E micro component system and CP-XL560H speaker
system.
XL-570E micro component system consisting of XL-
570E micro component system and CP-XL570H speaker
system.

HOW TO ORDER REPLACEMENT PARTS"

To have your order tilled promptly and correctly, please furnish the For U S A only

following information. Contact your nearest SHARP Parts Distributor to order.
1. MODEL NUMBER 2. REF. No.
3- PART NO- 4- DESCRIPTION For location of SHARP Parts Distributor,

Please call Toll-Free;
1-800-BE-SHARP

k MARK: SPARE PARTS-DELIVERY SECTION

/- Explanation of capacitors/resistors parts codes -\

Capacitors Resistors

VCC Carbon-film type

Carbon-film type
Metal-film type
Cylindrical type (without lead wire)
Cylindrical type (without lead wire)
.. Square type (without lead wire)
Square type (without lead wire)
.. Square type (without lead wire)

l

Semiconductor type

.. Cylindrical type (without lead wire)
.. Cylindrical type (without lead wire)
.. Square type (without lead wire)

.. Square type (without lead wtre)

.. Square type (without lead wire) .
.. Square type (without lead wire) .. Square type (without lead wtre

.. The 13th character represents capacity difference. .. The 13th character represents error.
("J" i5°/n, "K" i10%, "M" :20%, "N" i30%, ("J" 15%, F" 11%, "D" i0.5%.)

"C" i025 pF, "D" i0.5 pF, "Z" +80-20%.)

If there are no indications for other parts, the resistors are 15%
If there are no indications for the electrolytic capacitors, error is i20%. carbon-film type. /

\

NOTE:
Parts marked with A are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.
