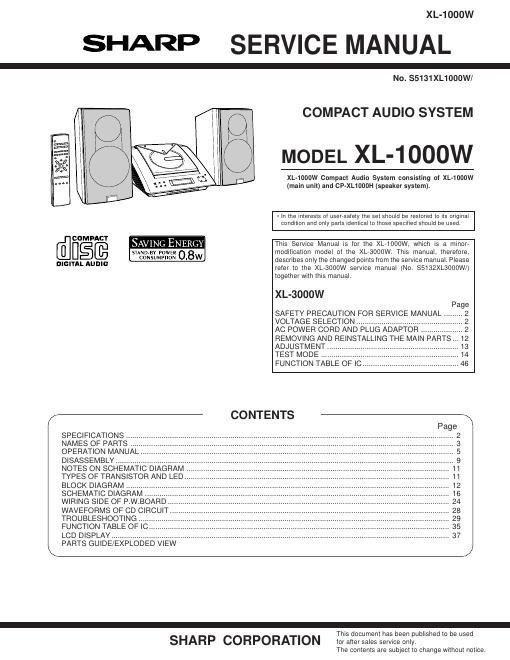

Sharp xl 1000 w service manual

Page 2

XL-1000W

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

I General

SPECIFICATIONS

I CD player

Power source

AC 110, 127, 220, 230 - 240 V, 50/60 Hz

Type

Compact disc player

Power
consumption

30W

Signal readout

Non-contact, 3-beam semiconductor laser
pickup

Dimensions Width: 230 mm (9-1/16")
Height: 128 mm (5-1/16")
Depth: 293 mm (11-9/16")

Weight 3.0 kg (6.6 lbs.)

I Amplifier

Output power

MP0: 30 w (15 w +15 W) (10 % T.H.D.)
RMS: 20 w (10 w +10 W) (10 % T.H.D.)

Output terminals

Speakers: 8 ohms

Headphones: 16 - 50 ohms (recommended:

32 ohms)
CD digital output (optical)

Input terminals

Video/Auxiliary (audio signal): 500 mV/47
kohms

prior notice.

Specifications for this model are subject to change without

D/A converter

1-bit D/A converter

Frequency 20 - 20,000 Hz
response
Dynamic range 90 dB (1 kHz)

I Tuner

Frequency range

FM: 88 - 108 MHz
AM: 531 - 1,602 kHz

l Speaker

Type 2-way type speaker system
Tweeter
10 cm (4") Woofer

Maximum input 20 W

power

Rated input power 10 W

Impedance 8 ohms

Dimensions Width: 140 mm (5-9/16")
Height: 263 mm (10-3/8")
Depth: 187 mm (7-3/8")

Weight 1.5 kg (3.3 lbs.)/each
