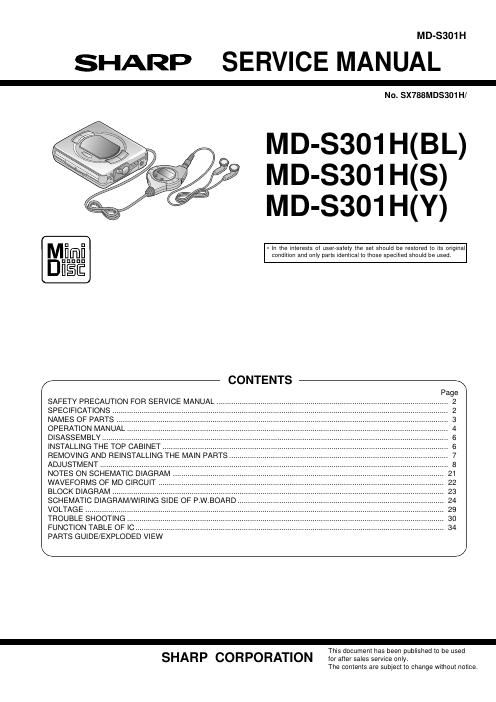

Sharp md s 301 h service manual
This is the 75 pages manual for sharp md s 301 h service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sharp md s 301 h service manual (Ocr-read)
Page 1
MD-S301H Ð 2 Ð Headphones Ñ 5 mW + 5 mW 32 ohms LINE 250 mV (-12 dB) Ñ 50 kohms Output level: Dimensions:Width: 87 mm (3-7/16") Height: 24 mm (31/32") Depth: 78 mm (3-3/32") Weight:184 g (0.41 lbs.) with rechargeable battery Output socket:Headphones (impedance: 32 ohms)/ remote control unit Mini Disc Player Type:Portable MiniDisc player Signal readout:Non-contact, 3-beam semi-coductor laser pick-up Audio channels:2 Frequency response:20 - 20,000 Hz (± 3 dB) Rotation speed:Approx. 400 - 900 rpm Error correction:ACIRC (Advanced Cross Interleave Reed-Solomon Code) Coding:ATRAC (Adaptive TRansform Acoustic Coding) D/A converter:1 bit Sampling frequency:44.1kHz Modulation system:EFM (Eight to Fourteen Modulation) Wow and flutter:Unmeasurable (less than ±0.001% W.peek) SAFETY PRECAUTION FOR SERVICE MANUAL Precaution to be taken when replacing and servicing the Laser Pickup. The AEL (Accessible Emission Level) of Laser Power Output for this model is specified to be lower than Class I Requirements. However, the following precautions must be observed during servicing to protect your eyes against exposure to the Laser:- (1) When the cabinet has been removed, the power is turned on without a compact disc, and the Pickup is on a position outer than the lead-in position, the Laser will light for several seconds to detect a disc. Do not look into the Pickup Lens. (2) The Laser Power Output of the Pickup inside the unit and replacement service parts have already been adjusted prior to shipping. (3) No adjustment to the Laser Power should be attempted when replacing or servicing the Pickup. (4) Under no circumstances look directly into the Pickup Lens at any time. (5) CAUTION - Use of controls or adjustments, or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser Diode Properties Material: GaAIAs Wavelength: 785 nm Emission Duration: continuous Laser Output: max. 0.73 mW SPECIFICATIONS General Power source: DC 3.6 V (rechargeable lithium-ion battery x 1)DC 5 V (AC adaptor) AC 110 - 240 V, 50/60 Hz DC 1.5 V: Separately available battery case, AD-S30BC (commercially available, "AA" size, alkaline battery x 1) DC 4.5 V: Separately available car adaptor, AD-CA20X ( for cars with a 12-24V DC negativeearth electrical system) Power consumption:0.15 A (AC adaptor) 4 W Output power:RMS; 10 mW (5 mW + 5 mW) (0.2 % T.H.D.) Charging time:Approx. 3 hours (When using the AC adaptor included with the unit) Battery life: Volume level: "VOL 15" The above values are the standard values when the unit is charged and used at an ambient temperature of 20 ûC. The playing time when using an alkaline battery may be different, depending on the type and manufacturer of the battery and on the operating temperature. FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER TO THE OPERATION MANUAL. Specifications for this model are subject to change without prior notice. LASER KLASSE 1 LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA BRUKSANVISNING SPECIFICERAS. KAN ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1. CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT. ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER. VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE. ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI. VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT INSTRUMENT. ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER. Approx. 6 hours Approx. 4 hours Approx. 10 hours When using the rechargeable battery (fully charged) included with the unit When using one, commer- cially available, high capacity, "AA" size, alkaline battery (in the separately available battery case)When using one, commer- cially available, high capacity, "AA" size, battery with the rechargeable battery (fully charged) Maximum output levelLoad impedance Specified output
Page 1
MD-S301H Ð 2 Ð Headphones Ñ 5 mW + 5 mW 32 ohms LINE 250 mV (-12 dB) Ñ 50 kohms Output level: Dimensions:Width: 87 mm (3-7/16") Height: 24 mm (31/32") Depth: 78 mm (3-3/32") Weight:184 g (0.41 lbs.) with rechargeable battery Output socket:Headphones (impedance: 32 ohms)/ remote control unit Mini Disc Player Type:Portable MiniDisc player Signal readout:Non-contact, 3-beam semi-coductor laser pick-up Audio channels:2 Frequency response:20 - 20,000 Hz (± 3 dB) Rotation speed:Approx. 400 - 900 rpm Error correction:ACIRC (Advanced Cross Interleave Reed-Solomon Code) Coding:ATRAC (Adaptive TRansform Acoustic Coding) D/A converter:1 bit Sampling frequency:44.1kHz Modulation system:EFM (Eight to Fourteen Modulation) Wow and flutter:Unmeasurable (less than ±0.001% W.peek) SAFETY PRECAUTION FOR SERVICE MANUAL Precaution to be taken when replacing and servicing the Laser Pickup. The AEL (Accessible Emission Level) of Laser Power Output for this model is specified to be lower than Class I Requirements. However, the following precautions must be observed during servicing to protect your eyes against exposure to the Laser:- (1) When the cabinet has been removed, the power is turned on without a compact disc, and the Pickup is on a position outer than the lead-in position, the Laser will light for several seconds to detect a disc. Do not look into the Pickup Lens. (2) The Laser Power Output of the Pickup inside the unit and replacement service parts have already been adjusted prior to shipping. (3) No adjustment to the Laser Power should be attempted when replacing or servicing the Pickup. (4) Under no circumstances look directly into the Pickup Lens at any time. (5) CAUTION - Use of controls or adjustments, or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser Diode Properties Material: GaAIAs Wavelength: 785 nm Emission Duration: continuous Laser Output: max. 0.73 mW SPECIFICATIONS General Power source: DC 3.6 V (rechargeable lithium-ion battery x 1)DC 5 V (AC adaptor) AC 110 - 240 V, 50/60 Hz DC 1.5 V: Separately available battery case, AD-S30BC (commercially available, "AA" size, alkaline battery x 1) DC 4.5 V: Separately available car adaptor, AD-CA20X ( for cars with a 12-24V DC negativeearth electrical system) Power consumption:0.15 A (AC adaptor) 4 W Output power:RMS; 10 mW (5 mW + 5 mW) (0.2 % T.H.D.) Charging time:Approx. 3 hours (When using the AC adaptor included with the unit) Battery life: Volume level: "VOL 15" The above values are the standard values when the unit is charged and used at an ambient temperature of 20 ûC. The playing time when using an alkaline battery may be different, depending on the type and manufacturer of the battery and on the operating temperature. FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER TO THE OPERATION MANUAL. Specifications for this model are subject to change without prior notice. LASER KLASSE 1 LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA BRUKSANVISNING SPECIFICERAS. KAN ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1. CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT. ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER. VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE. ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI. VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT INSTRUMENT. ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER. Approx. 6 hours Approx. 4 hours Approx. 10 hours When using the rechargeable battery (fully charged) included with the unit When using one, commer- cially available, high capacity, "AA" size, alkaline battery (in the separately available battery case)When using one, commer- cially available, high capacity, "AA" size, battery with the rechargeable battery (fully charged) Maximum output levelLoad impedance Specified output
Page 1
MD-S301H Ð 2 Ð Headphones Ñ 5 mW + 5 mW 32 ohms LINE 250 mV (-12 dB) Ñ 50 kohms Output level: Dimensions:Width: 87 mm (3-7/16") Height: 24 mm (31/32") Depth: 78 mm (3-3/32") Weight:184 g (0.41 lbs.) with rechargeable battery Output socket:Headphones (impedance: 32 ohms)/ remote control unit Mini Disc Player Type:Portable MiniDisc player Signal readout:Non-contact, 3-beam semi-coductor laser pick-up Audio channels:2 Frequency response:20 - 20,000 Hz (± 3 dB) Rotation speed:Approx. 400 - 900 rpm Error correction:ACIRC (Advanced Cross Interleave Reed-Solomon Code) Coding:ATRAC (Adaptive TRansform Acoustic Coding) D/A converter:1 bit Sampling frequency:44.1kHz Modulation system:EFM (Eight to Fourteen Modulation) Wow and flutter:Unmeasurable (less than ±0.001% W.peek) SAFETY PRECAUTION FOR SERVICE MANUAL Precaution to be taken when replacing and servicing the Laser Pickup. The AEL (Accessible Emission Level) of Laser Power Output for this model is specified to be lower than Class I Requirements. However, the following precautions must be observed during servicing to protect your eyes against exposure to the Laser:- (1) When the cabinet has been removed, the power is turned on without a compact disc, and the Pickup is on a position outer than the lead-in position, the Laser will light for several seconds to detect a disc. Do not look into the Pickup Lens. (2) The Laser Power Output of the Pickup inside the unit and replacement service parts have already been adjusted prior to shipping. (3) No adjustment to the Laser Power should be attempted when replacing or servicing the Pickup. (4) Under no circumstances look directly into the Pickup Lens at any time. (5) CAUTION - Use of controls or adjustments, or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser Diode Properties Material: GaAIAs Wavelength: 785 nm Emission Duration: continuous Laser Output: max. 0.73 mW SPECIFICATIONS General Power source: DC 3.6 V (rechargeable lithium-ion battery x 1)DC 5 V (AC adaptor) AC 110 - 240 V, 50/60 Hz DC 1.5 V: Separately available battery case, AD-S30BC (commercially available, "AA" size, alkaline battery x 1) DC 4.5 V: Separately available car adaptor, AD-CA20X ( for cars with a 12-24V DC negativeearth electrical system) Power consumption:0.15 A (AC adaptor) 4 W Output power:RMS; 10 mW (5 mW + 5 mW) (0.2 % T.H.D.) Charging time:Approx. 3 hours (When using the AC adaptor included with the unit) Battery life: Volume level: "VOL 15" The above values are the standard values when the unit is charged and used at an ambient temperature of 20 ûC. The playing time when using an alkaline battery may be different, depending on the type and manufacturer of the battery and on the operating temperature. FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER TO THE OPERATION MANUAL. Specifications for this model are subject to change without prior notice. LASER KLASSE 1 LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA BRUKSANVISNING SPECIFICERAS. KAN ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1. CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT. ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER. VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE. ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI. VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT INSTRUMENT. ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER. Approx. 6 hours Approx. 4 hours Approx. 10 hours When using the rechargeable battery (fully charged) included with the unit When using one, commer- cially available, high capacity, "AA" size, alkaline battery (in the separately available battery case)When using one, commer- cially available, high capacity, "AA" size, battery with the rechargeable battery (fully charged) Maximum output levelLoad impedance Specified output
Page 2
MD-S301H Ð 3 Ð NAME OF PARTS Main unit 1. Volume Buttons: +, Ð 2. Stop/Power Off/Charge Button: :OFF 3. Power Indicator 4. Fast Reverse Button: 5. Play/Fast Forward Button: 6. 5V DC Input Socket 7. Eject Lever 8. Hold Switch 9. Battery Case Connection Terminals 10. Headphones Socket 11. Rechargeable Lithium-lon Battery Compartment Remote control unit 1. Character/Time Information Display 2. Disc Mode Indicator 3. Total Track Number Display 4. Track Number Indicator 5. Battery Indicator: 6. Repeat Indicator: 7. Random Indicator 8. Headphones Socket 9. Hold Switch 10. Play Mode Button 11. Volume Buttons: +, Ð 12. Bass Button 13. Display Button 14. Play/Pause Button: 15. Stop/Power Off Button: 16. Fast Reverse/Fast Foward Buttons: 14 5 6 7 2 3 10 11 8 9 RANDOM TOTAL 1 10 11 129 13 14 15 16 81 26 7 45 3
Page 2
MD-S301H Ð 3 Ð NAME OF PARTS Main unit 1. Volume Buttons: +, Ð 2. Stop/Power Off/Charge Button: :OFF 3. Power Indicator 4. Fast Reverse Button: 5. Play/Fast Forward Button: 6. 5V DC Input Socket 7. Eject Lever 8. Hold Switch 9. Battery Case Connection Terminals 10. Headphones Socket 11. Rechargeable Lithium-lon Battery Compartment Remote control unit 1. Character/Time Information Display 2. Disc Mode Indicator 3. Total Track Number Display 4. Track Number Indicator 5. Battery Indicator: 6. Repeat Indicator: 7. Random Indicator 8. Headphones Socket 9. Hold Switch 10. Play Mode Button 11. Volume Buttons: +, Ð 12. Bass Button 13. Display Button 14. Play/Pause Button: 15. Stop/Power Off Button: 16. Fast Reverse/Fast Foward Buttons: 14 5 6 7 2 3 10 11 8 9 RANDOM TOTAL 1 10 11 129 13 14 15 16 81 26 7 45 3
