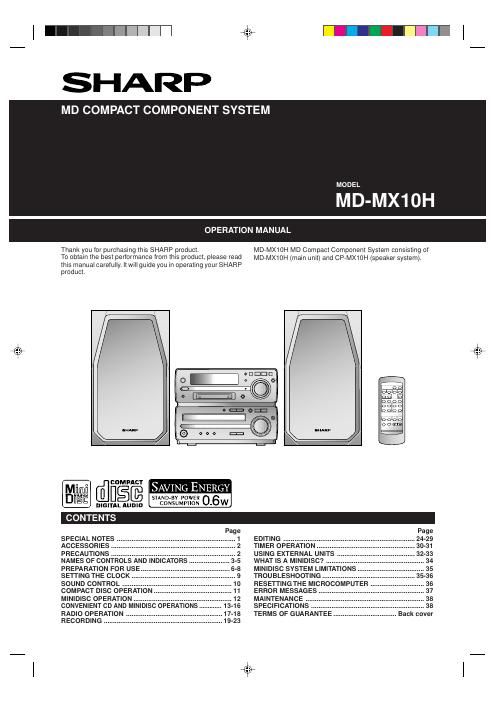

Sharp md mx 10 h owners manual
This is the 40 pages manual for sharp md mx 10 h owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sharp md mx 10 h owners manual (Ocr-read)
Page 1
1 NOTE FOR USERS IN THE U.K. The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 3A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or and of the same rating as above, which is also indicated on the pin face of the plug must be used. Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut-off the mains plug and fit an appropriate type. DANGER: The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner. Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet as a serious electric shock may occur. To fit an appropriate plug to the mains lead, follow the in- structions below: IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue : Neutral Brown : Live As the colours of the wires in the mains lead of this product may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: lThe wire which is coloured blue must be connected to the plug terminal which is marked N or coloured black. lThe wire which is coloured brown must be connected to the plug terminal which is marked L or coloured red.Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three pin plug. Before replacing the plug cover, make sure that: lIf the new fitted plug contains a fuse, its value is the same as that removed from the cut-off plug. lThe cord grip is clamped over the sheath of the mains lead and not simply over the lead wires. IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELEC- TRICIAN. SERVICE INFORMATION In the unlikely event of your equipment requiring repair, please contact the dealer or supplier from whom it was pur- chased. Where this is not possible, please contact the tel- ephone number listed below. You will then be given details of how to obtain service. - 0345-125387 - Please note; all calls will be charged at local rate. Certain replacement parts and accessories may be obtained from our main parts distributor. WILLOW VALE ELECTRONICS LTD. MANCHESTER 0161-682-1415 READING 01189-876444 In the unlikely event of this equipment requiring repair dur- ing the guarantee period, you will need to provide proof of the date of purchase to the repairing company. Please keep your invoice or receipt, which is supplied at the time of purchase. lRecording and playback of any material may require con- sent, which SHARP is unable to give. Please refer par ticu- larly to the provisions of the Copyright Act 1956, the Dra- matic and Musical Performers Protection Act 1958, the Performers Protection Acts 1963 and 1972 and to any sub- sequent statutory enactments and orders. lThis equipment complies with the requirements of Direc- tives 89/336/EEC and 73/23/EEC as amended by 93/68/ EEC. lUS and foreign patents licensed from Dolby Laboratories Licensing Corporation. lWhen the ON/STAND-BY button is set at STAND-BY posi- tion, mains voltage is still present inside the unit. When the ON/STAND-BY button is set at STAND-BY posi- tion, the unit may be brought into operation by the timer mode or remote control. Warning: lThis unit contains no user serviceable parts. Never remove covers unless qualified to do so. This unit contains danger- ous voltages, always remove mains plug from the socket before any service operation and when not in use for a long period. Warning: lTo prevent fire or shock hazard, do not expose this appli- ance to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.CAUTION Use the MD compact component system only in accordance with the instructions given in this manual and do not attempt to interfere with the interlock switch or make any other adjust- ment as this may result in exposure to hazardous radiation. SPECIAL NOTES
Page 2
2 AM loopaerial ´ 1 n General lPlease ensure that the equipment is positioned in a well ventilated area and ensure that there is at least 10cm (4") of free space along the sides and back. There must also be a minimum of 10cm (4") of free space on the top of the unit. lDo not use oil, solvents, petrol, paint thinners or insecti- cides on the unit. lDo not expose the unit to moisture, to temperatures higher than 60°C (140°F) or to extreme low temperatures. lKeep the unit away from direct sunlight, strong magnetic fields, excessive dust, humidity and electronic/electrical equipment (home computers, facsimiles, etc.) which gen- erate electrical noise. lHold the AC power plug by the head when removing it from the AC socket, since pulling the lead can damage internal wires. lDo not remove the outer cover, as this may result in elec- tric shock. Refer internal service to your local SHARP service facility. lUse the unit on a firm, level surface free from vibration, and do not place anything on the top of the unit. lIf the unit malfunctions whilst in use, press the ON/STAND- BY button to enter the stand-by mode, then disconnect the AC power lead from the AC socket. Plug the AC power lead back in, and then press the ON/STAND-BY button to turn the power on. lIf an electrical storm is taking place near you, it is sug- gested that you disconnect the AC power lead from the AC socket for safety. lThe ventilation should not be impeded by covering the ven- tilation openings with items, such as newspapers, table- cloths, curtains, etc. lNo naked flame sources, such as lighted candles, should be placed on the apparatus. lAttention should be drawn to the environmental aspects of battery disposal. lThe apparatus is designed for use in moderate climate. Warning: lThe voltage used must be the same as that specified on this unit. Using this product with a higher voltage other than which is specified is dangerous and may result in a fire or other type of accident causing damage. SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is specified. nCare of compact discs Compact discs are fairly resistant to damage, however mistracking can occur due to an accumulation of dirt on the disc surface. Follow the guidelines below for maximum enjoyment from your CD collection and player. lDo not write on either side of the disc, particularly the non- label side. Signals are read from the non-label side. Do not mark this surface. lKeep your discs away from direct sunlight, heat, and ex- cessive moisture. lAlways hold the CDs by the edges. Fingerprints, dirt, or water on the CDs can cause noise or mistracking. If a CD is dirty or does not play properly, clean it with a soft, dry cloth, wiping straight out from the centre, along the radius. ACCESSORIES PRECAUTIONS "AA" size battery (UM/SUM-3, R6, HP-7 or similar) ´ 2 FM aerial ´ 1 Remote control´ 1 AC power lead´ 1 Note: Parts and accessories mentioned in this operation manual other than those in the drawing are not included. nVolume control The sound level at a given volume setting depends on a com- bination of speaker efficiency, location and various other fac- tors. It is advisable to avoid exposure to high volume levels, which occur whilst turning the unit on with the volume control set- ting up high, or whilst continually listening at high volumes. n Condensation Sudden temperature changes, storage or operation in an ex- tremely humid environment may cause condensation inside the cabinet (CD pickup, MiniDisc pickup, etc.) or on the trans- mitter LED on the remote control. Condensation can cause the unit to malfunction. If this happens, leave the power on with no disc in the unit until normal playback is possible (about 1 hour). Wipe off any condensation on the remote control transmitter LED with a soft cloth before operating the unit.NO YES Correct
