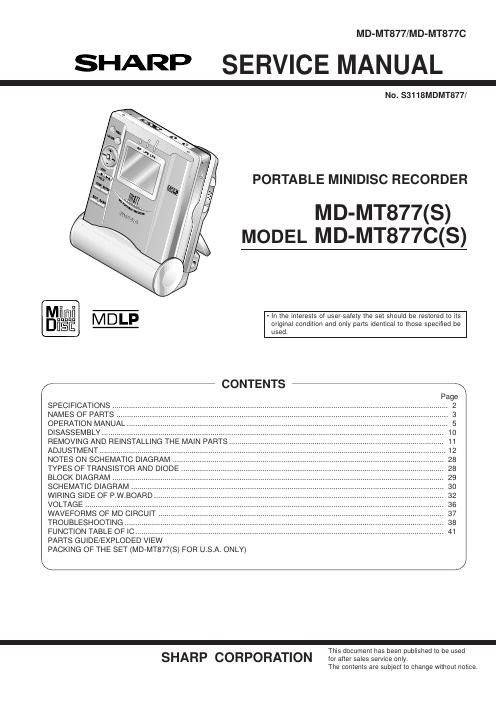

Sharp md mt 877 c service manual
This is the 56 pages manual for sharp md mt 877 c service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sharp md mt 877 c service manual (Ocr-read)
Page 1
Ð 2 Ð MD-MT877/MD-MT877C FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER TO THE OPERATION MANUAL. Specifications for this model are subject to change without prior notice SPECIFICATIONS Power sourceDC 1.2V: Rechargeable Nickel-Metal Hydride battery (AD-N55BT) x 1 DC 5V: AC adaptor (AC 120V, 60 Hz) DC 1.5V: Commercially available, ÒAAÓ size (LR6), alkaline battery x 1 DC 1.5V: Separately available car adaptor, AD-CA55X (for cars with a 12-24V DC negative ground electrical sys- tem) (Used with separately available plug adaptor (AD-M66PA)) Power consumption7 W (AC adaptor) Output powerRMS; 10 mW (5 mW + 5 mW) (0.2% T.H.D.) Charging timeApprox. 3.5 hours Input sensitivityMIC H: reference input level 0.25 mV input impedance 10 k ohms MIC L: reference input level 2.5 mV input impedance 10 k ohms LINE: reference input level 100 mV input impedance 20 k ohms Output levelEarphones :maximum output level 5 mW + 5 mW load impedance 32 ohms LINE: specified output 250 mV (-12 dB) load impedance 10 k ohms DimensionsWidth: 2-27/32Ó (71.9 mm) Height: 11/16Ó (16.8 mm) Depth: 3-1/8Ó (78.7 mm) Weight0.29 lbs. (131 g) with rechargeable battery Input jackLine/optical digital, microphone (powered by the main unit) Output jackEarphones (impedance: 32 ohms)/remote control unit TypePortable MiniDisc recorder Signal readoutNon-contact, 3-beam semiconductor laser pickup Audio channelsStereo 2 channels/monaural (long-play mode) 1 channel Frequency response 20 Ð 20,000 Hz (± 3 dB) Rotation speedApprox. 400 Ð 1,350 rpm Error correctionACIRC (Advanced Cross Interleave Reed-Solomon Code) CodingATRAC/ATRAC3 (Adaptive TRansform Acoustic Coding), 24-bit computed type Recording methodMagnetic modulation overwrite method Sampling frequency 44.1 kHz (32 kHz and 48 kHz signals are converted to 44.1 kHz, and then recorded.) Wow and flutterUnmeasurable (less than ±0.001% W. peak) Battery life lThe above values are the standard values when the unit is operated hori- zontally and charged at an ambient temperature of 77°F (25°C). (The operable duration with the rechargeable battery will be shorter when the unit is carried around.) lThe volume level is set at ÒVOL 15Ó. lThe LED is set at ÒLIGHT OFFÓ.lOperable duration with a commercially available battery varies depend- ing on its maker, type, and conditions of use. lÒFully chargedÓ means that the charging is complete after approximately 3.5 hours since the remaining amount of the battery is reduced to Ò Ó (1 bar). When using the rechargeable battery (fully charged) included with the unit When using one, commercially avail- able, high capacity, ÒAAÓ size (LR6), al- kaline battery (The rechargeable bat- tery is in the unit, discharged.) When using one, commercially avail- able, high capacity, ÒAAÓ size (LR6), al- kaline battery with the rechargeable bat- tery (fully charged) Stereo 2 times long 4 times long Continuous Continuous Continuous Continuous Continuous Continuous recording: play: recording: play: recording: play: Approx. Approx. Approx. Approx. Approx. Approx. 6.5 hours 12 hours 9 hours 13.5 hours 11.5 hours 15 hours Continuous Continuous Continuous Continuous Continuous Continuous recording: play: recording: play: recording: play: Approx. Approx. Approx. Approx. Approx. Approx. 6 hours 16 hours 10 hours 19.5 hours 13 hours 22 hours Continuous Continuous Continuous Continuous Continuous Continuous recording: play: recording: play: recording: play: Approx. Approx. Approx. Approx. Approx. Approx. 15 hours 29 hours 22 hours 33 hours 30 hours 40 hours
Page 2
Ð 3 Ð MD-MT877/MD-MT877C NAMES OF PARTS Main unit 1. Record/Track Mark Button 2. Mode Button 3. Volume/Cursor/Fast Forward/Fast Reverse/ Recording Level/Name Select Button 4. Stop/Power Off/Hold Button 5. Open Lever 6. Display/Character Select Button 7. Edit/Auto Mark/Time Mark Button 8. Play/Pause Button 9. Enter/Fast Play/Synchro Button 10. Bass/Delete Button 11. Rechargeable Battery Cover 12. Handstrap Holder 13. Optical/Line Input Jack 14. Microphone Input Jack 15. Remote Control/Earphones/Line Output Jack 1. Level Meter 02. Record Indicator 03. Synchro Recording Indicator 04. Operation Indicator 05. Long-play/Recording Mode Indicator 6. Character/Time Information Indicator 7. Repeat Indicator 8. Battery Indicator 9. Random Indicator 10. Track Number Indicator 11. TOC Indicator 12. Disc Name Indicator Main unit display panel 3-color LED Various modes are indicated with three colors of lights. ChargingLight ing starting with yellow-green light. RefreshExtinguishing starting with orange light after all the lights are lit. PlaybackFlashing the color of the activated play- back mode. RecordingFlashing the color of the activated re- cording mode. Fast Forward Flashing starting with yellow-green light. Fast ReverseFlashing starting with orange light. Volume (+)Lighting starting with yellow-green light. Volume (Ð)Extinguishing instantly starting with or- ange light after all the lights are lit. TOCReading: flashing at random. 131415 12 2 134 5 6 78 9 10 11 1 2 3 4 5 67 8 9 10 11 12 Blue Yellow- greenOrange
