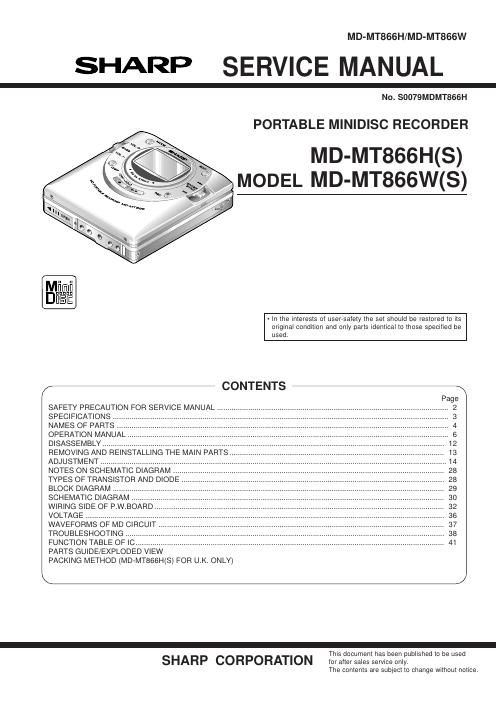

MD-MT866H/MD-MT866W
SAFETY PRECAUTION FOR SERVICE MANUAL

Precaution to be taken when replacing and servicing the
Laser Pickup. Laser Diode Properties
0 Material: GaAlAs

The AEL (Accessible Emission Level) of Laser Power Output ° Wavelength? 785 m
0 Pulse time:

for this model is specified to be lower-than Class | Require- Read mode' 0 8 mW Continuous

ments. However, the followmg precaution-s must be observed Write mode; max. 10 mW 0.58

during servtcmg to protect your eyes against exposure to the min cycle 1 58

laser beam. ' . . '

. . Repetition

(1) When the cabinet has been removed, the power is
turned on without a compact disc, and the Pickup is on
a position cuter than the lead-in position, the Laser will
light for several seconds to detect a disc. Do not look
into the Pickup Lens.

(2) The Laser Power Output of the Pickup inside the unit
and replacement service parts have already been
adjusted prior to shipping.

(3) No adiustment to the Laser Power should be attempted
when replacing or servicing the Pickup.

(4) Under no circumstances look directly into the Pickup
Lens at any time.

(5) CAUTION - Use of controls or adjustments, or
performance of procedures other than those specified

i ism a Asrkswéiwn in mm rims an millet; ilrts

herein may result in hazardous radiation exposure. WWWWSJW-W

Wit; u lcASFRSYRAllN mu m ti damn m 5P
5W-
iimscismtia Jsmsmlxurlo vtnjamm. VAR smmwmm m m A.
HAW 0N imam tlItSklltLS: FOR slMlea

MD-MT866W(S)
MD-MT866H(S) Except for U.K.

CLASS I LASER FRUDUBT
APPAREIL A LASER DE CLASSE l
PRODUCTU LASER DE CLASE 1

CLASS 1 LASER PRODUCT
APPAREIL A LASER DE CLASSE l
PRODUCTU LASER DE BLASE l

LASER KLASSE1
LUOKAN1 LASERLAITE
KLASSt LASERAPPARA
LASER TRiDY 1

LASER TRIEDY1

MD-MT866H(S) Except for U.K. MD-MT866W(S)
MD-MT866H(S) for U.K.

Precaution to be taken when replacing and servicing the laser pickup.
The following precautions must be observed during servicing to protect your eyes against exposure to the laser.

Warning of possible eye damage when repairing:

It the AC adaptor or batteries are connected when the top housing (disc cover) of the unit is removed, and the PLAY key is
pressed, the laser will light up during focus access (23 seconds). (Fig. 3-1) During the operation, the laser will leak from the
opening between the magnetic head and the mechanical chassis (Fig. 3-2). In order to protect your eyes, you must not look
at the laser during repair. Before repairing be sure to disconnect the AC adaptor and remove the batteries.
