Sharp md mt 20 h service manual
This is the 151 pages manual for sharp md mt 20 h service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sharp md mt 20 h service manual (Ocr-read)
Page 1

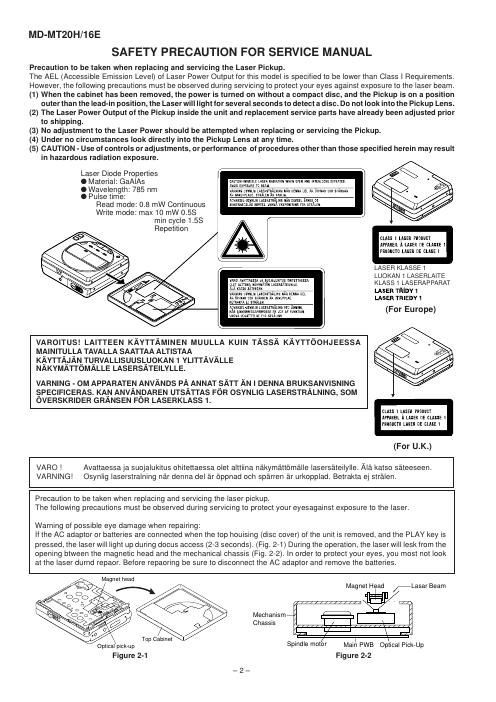

MD-MT20H/16E Ð 2 Ð Figure 2-1 Figure 2-2 Precaution to be taken when replacing and servicing the Laser Pickup. The AEL (Accessible Emission Level) of Laser Power Output for this model is specified to be lower than Class I Requirements. However, the following precautions must be observed during servicing to protect your eyes against exposure to the laser beam. (1) When the cabinet has been removed, the power is turned on without a compact disc, and the Pickup is on a position outer than the lead-in position, the Laser will light for several seconds to detect a disc. Do not look into the Pickup Lens. (2) The Laser Power Output of the Pickup inside the unit and replacement service parts have already been adjusted prior to shipping. (3) No adjustment to the Laser Power should be attempted when replacing or servicing the Pickup. (4) Under no circumstances look directly into the Pickup Lens at any time. (5) CAUTION - Use of controls or adjustments, or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY PRECAUTION FOR SERVICE MANUAL VARO ! Avattaessa ja suojalukitus ohitettaessa olet alttiina nŠkymŠttšmŠlle lasersŠteilylle. €lŠ katso sŠteeseen. VARNING! Osynlig laserstralning nŠr denna del Šr šppnad och spŠrren Šr urkopplad. Betrakta ej strŠlen. Precaution to be taken when replacing and servicing the laser pickup. The following precautions must be observed during servicing to protect your eyesagainst exposure to the laser. Warning of possible eye damage when repairing: If the AC adaptor or batteries are connected when the top houising (disc cover) of the unit is removed, and the PLAY key is pressed, the laser will light up during docus access (2-3 seconds). (Fig. 2-1) During the operation, the laser will lesk from the opening btween the magnetic head and the mechanical chassis (Fig. 2-2). In order to protect your eyes, you most not look at the laser durnd repaor. Before repaoring be sure to disconnect the AC adaptor and remove the batteries. (For U.K.) (For Europe) Laser Diode Properties lMaterial: GaAlAs lWavelength: 785 nm lPulse time: Read mode: 0.8 mW Continuous Write mode: max 10 mW 0.5S min cycle 1.5S Repetition VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA BRUKSANVISNING SPECIFICERAS. KAN ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1. LASER KLASSE 1 LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT Magnet Head Lasar Beam Optical Pick-Up Main PWB Spindle motor Mechanism Chassis Magnet head Optical pick-upTop Cabinet
Page 2
MD-MT20H/16E Ð 3 Ð FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER TO THE OPERATION MANUAL. SPECIFICATIONS Specifications for this model are subject to change without prior notice nGeneral Power source: (MD-MT20H for U.K.)DC 2.4V: Rechargeable Nickel-Metal Hydride battery x 1 DC 5V: AC adaptor (AC 230 - 240V, 50/60 Hz) DC 3.0V: Commercially available, AA size, alkaline bat- tery x 2 DC 4.5V: Separately available car adaptor, AD-CA20X ( for cars with a 12-24V DC negative earth electricalsystem) Power consumption:7 W (AC adaptor) Output power:RMS; 20 mW (10 mW + 10 mW) (0.2% T.H.D.) Charging time:Approx. 4 hours (90 %) Approx. 6 hours (fully charged) (When using the AC adaptor included with the unit) Battery life: When using the rechargeable battery (fully charged) included with the unitWhen using two, commercially available, high capacity, AA size, alkaline batteries Continuous recording: Approx. 7.5 hoursContinuous recording: Approx. 7.5hours Continuous play: Approx. 12 hoursContinuous play: Approx. 15 hours Power source: (MD-MT20H for Europe)DC 2.4V: Rechargeable Nickel-Metal Hydride battery x 1 DC 5V: AC adaptor (AC 220 - 230V, 50/60 Hz) DC 3.0V: Commercially available, AA size, alkaline bat- tery x 2 DC 4.5V: Separately available car adaptor, AD-CA20X ( for cars with a 12-24V DC negative earth electricalsystem) Power source: (MD-MT16E)DC 2.4V: Optional Rechargeable Nickel-Metal Hydride bat- tery (AD-T20BT) x 1 DC 3.0V: Commercially available, AA size, alkaline bat- tery x 2 DC 4.5V: Optional car adaptor, AD-CA20X ( for cars with a 12-24V DC negative earth electricalsystem) DC 5V: Optional AC adaptor (AD-T20APE, AC 230 - 240V, 50/60 Hz) Power consumption: (MD-MT16E)7 W (Optional AC adaptor) Output power: (MD-MT16E)RMS; 20 mW (10 mW + 10 mW) (0.2% T.H.D.) Charging time: (MD-MT16E)Approx. 4 hours (90 %) Approx. 6 hours (fully charged) (When using the AC adaptor) Battery life: (MD-MT16E) When using the optional re- chargeable battery AD-T20BT (fully charged) When using two, commercially available, high capacity, AA size, alkaline batteries Continuous recording: Approx. 7.5 hours Continuous recording: Approx. 7.5 hours Continuous play: Approx. 12 hours Continuous play: Approx. 15 hours Unmeasurable (less than ±0.001% W. peak) lThe continuous recording time is for analogue inputs when the volume level is set to VOL 0. lThe continuous play time shows the value when the volume level is set to VOL 15. lThe above values are the standard values when the unit is charged and used at an ambient temperature of 20°C (68°F). lThe operating time when using an alkaline batteries may be different, depending on the type and manufacturer of the battery, and on the operating temperature. Input sensitivity: Recording level Reference input level Input impedance MIC H 0.25 mV 10 k ohms MIC L 2.5 mV 10 k ohms LINE 100 mV 20 k ohms Output level: Specified outputMaximum output levelLoad impedance Earphones - 10 mW + 10 mW 32 ohms LINE250 mV (-12dB)- 10 k ohms Dimensions:Width: 87.9 mm (3-7/16") Height: 29.8 mm (1-3/16") Depth: 79.7 mm (3-1/8") Weight: (MD-MT20H)235 g (0.52 lbs.) with rechargeable battery Input socket:Line/optical digital, microphone (powered by the main unit) Output socket:Earphones (impedance: 32 ohms)/remote control unit nMiniDisc Recorder Type:Portable MiniDisc recorder Signal readout:Non-contact, 3-beam semi-conductor laser pick-up Audio channels:Stereo 2 channels/monaural (long-play mode) 1 channel Frequency response:20 – 20,000 Hz (± 3 dB) Rotation speed:Approx. 400 – 900 rpm Error correction:ACIRC (Advanced Cross Interleave Reed-Solomon Code) Coding:ATRAC (Adaptive Transform Acoustic Coding), 24-bit computed type Recording method:Magnetic modulation overwrite method Sampling frequency: 44.1 kHz (32 kHz and 48 kHz signals are converted to 44.1 kHz , and then recorded.) Wow and flutter: Weight: (MD-MT16E)180 g (0.40 lbs.) without battery
