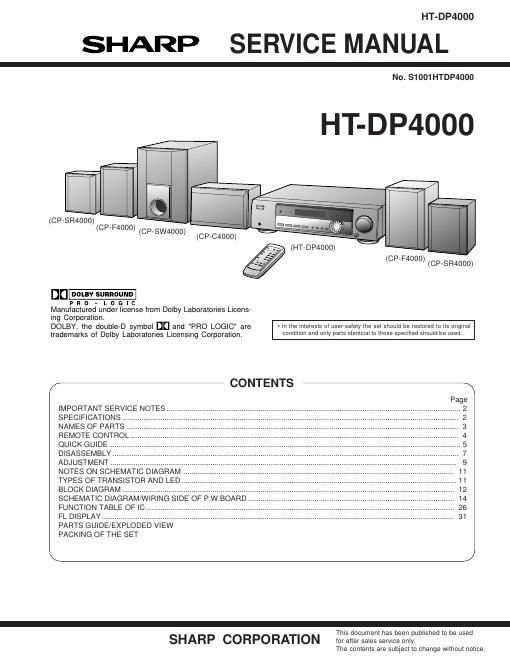

Page 1

HT-DP4000

SHARP SERVICE MANUAL

No. S1 001 HTD P4000

HT-DP4000

(CP»SR4000)

(CP'F4000) (CP-SW4000)

P-F4
(C 000) (CP-SR4000)

o_

P R 0 ~ L o G I c
Manufactured under license from Dolby Laboratories Licens-
ing Corporation.

DOLBY, the double-D symbol DD and PRO LOGIC" are - In the interests of userrsaiety the set should be restored to Its original
trademarks of Dolby Laboratories Licensing Corporation, condition and only pans identical to those speciiied should be used.

/ CONTENTS \

IMPORTANT SERVICE NOTES
SPECIFICATIONS
NAMES OF PARTS .
REMOTE CONTROL
QUICK GUIDE ......
DISASSEMBLY.
ADJUSTMENT ......
NOTES ON SCHEMATIC DIAGRAM ..
TYPES OF TRANSISTOR AND LED
BLOCK DIAGRAM ...............................
SCHEMATIC DIAGRAM/WIRING SIDE OF P.W.BOARD ..
FUNCTION TABLE OF IC
FL DISPLAY ....................
PARTS GUIDE/EXPLODED VIEW
PACKING OF THE SET

\ /

This document has been published to be used

SHARP CORPORATION for after sales service only.

The contents are subject to change without notice.

Page 2

HT-DP4000

TO THE OPERATION MANUAL.

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

IMPORTANT SERVICE NOTES

BEFORE RETURNING THE AUDIO PRODUCT

(Fire & Shock Hazard)

Before returning the audio product to the user, perform the

following safety checks.

1. Inspect all lead dress to make certain that leads are not
pinched or that hardware is not lodged between the chas»
sis and other metal parts in the audio product.

2. Inspect all protective devices such as insulating materials,
cabinet, terminal board, adjustment and compartment cov-
ers or shields, mechanical insulators etc.

3. To be sure that no shock hazard exists, check for leakage

current in the following manner.

Plug the AC line cord directly into a 120 volt AC outlet.

Using two clip leads, connect a 1.5k ohm, 10 watt resistor
paralleled by a 0.15uF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.
Use a VTVM or VOM with 1000 ohm per volt, or higher,
sensitivity to measure the AC voltage drop across the
resistor (See diagram).

Connect the resistor connection to all exposed metal parts
having a return path to thechassis (antenna, metal cabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.

w

a

5%

VTVM
-OAC SCALEO-

1.5k ohms
10W

0.15 p F
TEST PROBE
TO EXPOSED CONNECT TO
METAL PARTS KNOWN EARTH
GROUND

All check must be repeated with the AC line cord plug connec-
tion reversed.

Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.

HT-DP4000
. General Dimensions: Width; 5-15/16" (150 mm)
Type: Home theater receiver Height; 7-7/8" (200 mm)
Power source: AC 120 V, 60 Hz Depth; 4-15/16" (125 mm)
Power consumption: 120 W Weight: 3.3 lbs. (1.5 kg)/each

Dimenslons: Width; 16-15/16" (430 mm)
Height; 4-5/8" (116 mm)
Depth; 12-11/16"

Weight: 14.8 lbs. (6.7 kg)

Output power: (Front)

30 watts minimum RMS per channel into 8
ohms from 100 Hz to 20 kHz, 10 % total
harmonic distortion.

(Center)

RMS; 30 W (10 % T.H.D.)

(Surround)

HMS; 30 w (total) (10 % T.H.D.)

(Sub woofer)

RMS; 30 W (10 °/o T.H.D.)

Front speakers; 8 ohms

Center speaker; 8 ohms

Surround speakers; 16 ohms

Sub woofer; 8 ohms

Headphones; 16-50 ohms
(recommended; 32 ohms)

VCR-1, VCR-2, AUX (Audio signal);

500 mV/47 kohms

Output terminals:

Input terminals:

0 Tuner section
Frequency range: FM; 87.5 - 108 MHz

AM; 530 - 1,720 kHz

CP-F4000

0 Front speaker section

Type: 2-way, 4" (10 cm) woofer, and 2" (5 cm)
tweeter

Maximum Input power: 60 W

Impedance: 8 ohms

CP-C4000

0 Center speaker section

Type: 4" (10 cm) full-range speaker

Maximum Input power: 60 W

Impedance: 8 ohms

Dimensions: Width; 7-7/8" (200 mm)
Height; 5-15/16" (150 mm)
Depth; 4-15/16" (125 mm)

Weight: 1.5 kg

CP-SR4000

O Surround speaker section

Type: 4" (10 cm) full-range speaker

Maximum Input power: 30 W

Impedance: 16 ohms

Dimensions: Width; 5-15/16" (150 mm)
Height; 6-3/4" (170 mm)
Depth; 4-3/16" (105 mm)

Weight: 2.2 lbs. (1.0 kg)/each

CP-SW4000

0 Sub woofer section

Type: 5-1/8" (13 cm) full-range speaker
Maximum Input power: 60 W
Impedance: 8 ohms
Dimensions: Width; 8-5/16" (210 mm)

Height; 12-1/4" (310 mm)

Depth; 12-3/16" (310 mm)
Weight: 4.0 kg

Specifications for this model are subject to change without
prior notice.
