Sharp gf 9292x radio cassette recorder

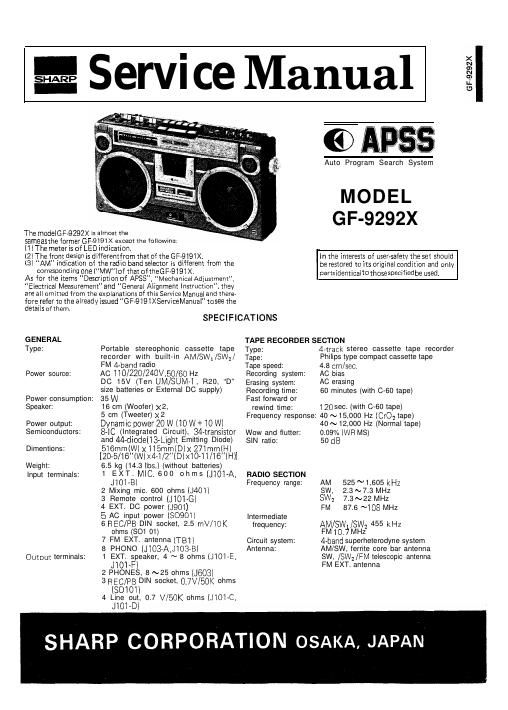

This is the 5 pages manual for sharp gf 9292x radio cassette recorder.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sharp gf 9292x radio cassette recorder (Ocr-read)
Page 1
NAMES OF PARTS :ernal DC power jack TunmglR-ch record andplayback level meter-1 1 FM stereo indicator Battery condition/L-ch record and playback level I Ii i APSS lndvzator Playback key Fast forward/Cue key Editor switch Loudness switch Meter selector/Dial light switch Mains socket Treble control Volume control Forward APSS key Stop keyDigital tape counter Earth terminal Record key Rewind/Review key Eject key 7 Power switCh m Function selector Mode selectori FM muting switch Fader control Mixing microphone jack Revers APSS key Figure 1 -2-
Page 2
DISASSEMBLY q FRONT CABINET REMOVAL (Refer to Figures 2 and 3) I. Pull out the power cord plug or adaptor plug from the unit. 2. Take out the cassette tape from the cassette holder. 3. Remove eight (8) screws retaining the front cabinet. 4. Gently pull out the front cabinet and disconnect four (4) tros (Soeaker) connected to the main P.W. board q OPERATION PANEL REMOVAL (Refer to Figure 3) 1. Remove the front cabinet as described in front cabinet removal. 2. Remove seven (7) knobs (record level, bass, treble, volume Figure 2 and fader). 3. Gently lift up the operation panel from the back cabinet. a DIAL SCALE PLATE REMOVAL (Refer to Figure 3) I. Remove the operation panel as described in operation panel removal. 2. Remove four (4) screws retaining the dial scale plate. 3. Gently pull out the dial scale plate from the chassis. @ MECHANISM BLOCK REMOVAL (Refer to Figure 4) 1. Remove the dial scale plate as described in dial scale plate removal. 2. Disconnect the tip (muting) and two (2) sockets (Sol, SOZ) connected to the main P.W. board and the motor P.W. board. 3. Remove four (4) screws retaining the mechanism block. 4. Gently pull out the mechanism block from the main P.W. board holder. q PHONO JACK PLATE REMOVAL (Refer to Figure 5) 1. Remove the mechanism block as described in mechanism block removal. 2. Remove two (2) screws retaining the phono jack plate. 3. Gently pull out the phono jack plate from the back cabinet. a CHASSIS (P.W.B.) REMOVAL (Refer to Figure 5) 1. Remove the phono jack plate as described in phono jack plate removal. 2. Remove two (2) knobs (tuning and fine tuning). 3. Disconnect three (3) tips (Antenna) and two (2) tips (DC supply) connected to the main P.W. board. 4. Remove seven (7) screws retarning the chassis (P.W.B.). 5. Gently pull out the chassis (P.W.B.) from the back cabinet. L Figure 3 Figure 4 Figure 5 -3
