Sharp cp c 606 service manual

Page 1

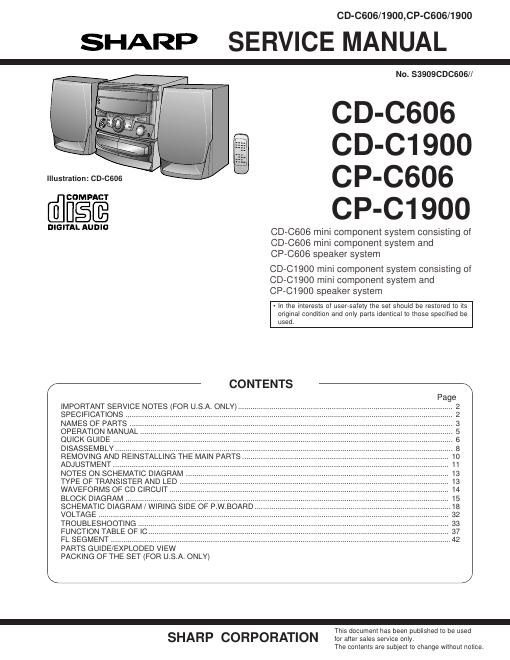

CD-C606/1900,CP-C606/1900

SHARP SERVICE MANUAL

No. S3909CDC606/l

CD-C606
CD-C1900
CP-CGOB
wise CP-C1900

DIGITAL AUDIO

Illustration: CD-CGOG

CD-CGOS mini component system consisting of
CD-CGOS mini component system and
CP-CBOG speaker system

CD-C1900 mini component system consisting of
CD-C1900 mini component system and
CP-C1900 speaker system

' In the interests oi user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.

/- CONTENTS -\

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY
SPECIFICATIONS
NAMES OF PARTS .
OPERATION MANUAL
QUICK GUIDE ..
DISASSEMBLY .....
REMOVING AND R
ADJUSTMENT .......................................
NOTES ON SCHEMATIC DIAGRAM .
TYPE OF TRANSISTER AND LED
WAVEFORMS OF CD CIRCUIT.
BLOCK DIAGRAM ..........................
SCHEMATIC DIAGRAM /W|R|NG SIDE OF P.W.BOARD.
VOLTAGE ........................
TROUBLESHOOTING.
FUNCTION TABLE OF IC
FL SEGMENT ..................
PARTS GUIDE/EXPLODED VIEW

PACKING OF THE SET (FOR U.S.A. ONLY)

)..

/

This document has been published to be used

SHARP CORPORATION for alter sales service only.

The contents are subject to change without notice.

Page 2

CD-C606/1900,CP-C606/1900

TO THE OPERATION MANUAL.

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)

BEFORE RETURNING THE AUDIO PRODUCT

(Fire & Shock Hazard)

Before returning the audio product to the user, perform the

following safety checks.

1. Inspect all lead dress to make certain that leads are not
pinched orthat hardware is not lodged between the chassis
and other metal parts in the audio product.

. Inspect all protective devices such as insulating materials;
cabinet, terminal board; adjustment and compartment
covers or shields, mechanical insulators etc.

. To be sure that no shock hazard exists, check for leakage
current in the following manner.

Plug the AC line cord directly into a 120 volt AC outlet.
Using two clip leads, connect a 15K ohm, 10 watt resistor
paralleled by a 0.15uF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.
Use a VTVM or VOM with 1000 ohm per volt, or higher,
sensitivity to measure the AC voltage drop across the
resistor (See diagram).

VTVM

-0 AC SCALE 0-

1.5k ohms
10W

0.15m:

TEST PROBE CONNECT T0

KNOWN EARTH

To EXPOSED GROUND

METAL PARTS
Connect the resistor connection to all exposed metal parts
having a return path to the chassis (antenna, metal cabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.
Allcheckmust be repeated with theACline cord plug connection
reversed.
Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.

SPECIFICATIONS

CD-0606/1900

0 General
Power source:

Power consumption:

AC 120 V; 60 HZ

Stand-by; 0.3 W
Power on; 40 W

Dimensions: Width; 10-5/8" (270 mm)

(For U.S.A.) Height; 11-13/16 (300 mm)
Depth; 13-7/8" (353 mm)

Dimensions: Width; 270 mm (10-5/8)

(For Canada) Height; 300 mm (11-13/16)
Depth; 353 mm (13-7/8")

Weight: 10.3 lbs (4.7 kg)

(For U.S.A.)

Weight: 4.7 kg (10.3 lbs)

(For Canada)

0 Amplifier section
Output power:
(For U.S.A.)

10 watts minimum RMS per
channel into 8 ohms from 80 Hz to
20 kHz; 10% total harmonic
distortion

MPO;36W 18 W+ 18W)

Output power: (
(10% T.H.D.)

(

)

(For Canada)
RMS; 20 W
(10% T.H.D.

1OW+1OW)

Output terminals: Speakers; 8 ohms
Headphones; 16-50 ohms

(recommended; 32 ohms)

OTuner section
Frequency range: FM; 87.5-108 MHz

AM; 530-1720 kHz

0 Cassette deck section
Frequency response: 50-14000 H2 (Normal tape)

Signal/noise ratio: 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)

Wow and flutter: 0.15 % (WRMS)

0 Compact disc player section

Type: 3-disc multi-play compact disc player
Signal readout: Non-contact, 3-beam semiconductor
laser pickup
D/A converter: 1-bit D/A converter

Frequency response: 20 -20,000 Hz

Dynamic range:

CP-0606/1900

0 Speaker section

90 dB (1 kHz)

Type: 2-way [4" (10cm) woofer and
super tweeter]

Maximum input

power: 20 W

Rated input power: 10 W

Impedance: 8 ohms

Dimensions: Width; 8-11/16" (220 mm)

(For U.S.A.) Height; 11-13/16 (300 mm)
Depth; 7-1/16 (180 mm)

Dimensions: Width; 220 mm (8-11/16)

(For Canada) Height; 300 mm (11-13/16")

Depth; 180 mm (7-1/16)
Weight:(For U.S.A.) 4.4 lbs. (2.0 kg)/each
Weight:(For Canada) 2.0 kg (4.4 lbs.)/each

Specifications for this model are subject to change without prior
notice.
