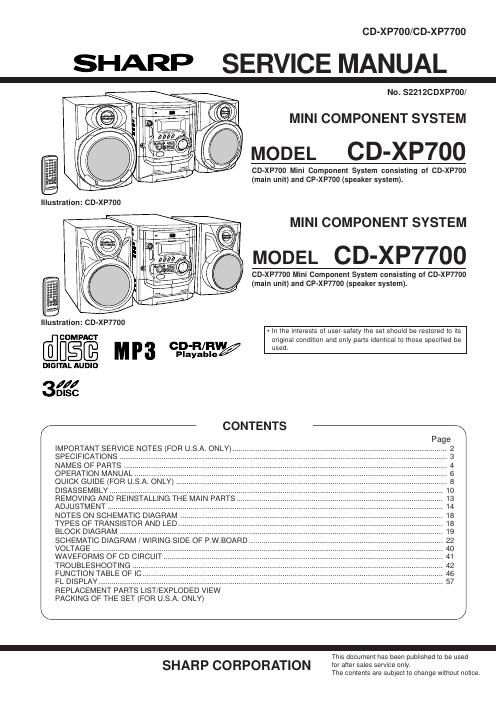

CD-XP700/CD-XP7700

SHARP SERVICE MANUAL

No. $2212CDXP700/

MINI COMPONENT SYSTEM

MODEL CD-XP700

CD-XP700 Mini Component System consisting of CD-XP700
(main unit) and CP-XP700 (speaker system).

MINI COMPONENT SYSTEM

MODEL CD-XP7700

CD-XP7700 Mini Component System consisting of CD-XP7700
(main unit) and CP-XP7700 (speaker system).

Illustration: CD-XP7700

- In the interests of user-safety the set should be restored to its
@CDMPACT original condition and only parts identical to those specified be

use up may

DIGITAL AUDIO

AMI
DISC

CONTENTS

IMPORTANT SERVICE NOTES (FOR UIS.A. ONLY)
SPECIFICATIONS
NAMES OF PARTS H
OPERATION MANUAL
QUICK GUIDE (FOR U.SIA. ONLY) ..
DISASSEMBLY ..................................
REMOVING AND REINSTALLING TH
ADJUSTMENT ...................................
NOTES ON SCHEMATIC DIAGRAM
TYPES OF TRANSISTOR AND LED.
BLOCK DIAGRAM .............................
SCHEMATIC DIAGRAM /W|R|NG SIDE OF P.W.BOARD
VOLTAGE ...................................
WAVEFORMS OF CD CIRCUIT.
TROUBLESHOOTING .....
FUNCTION TABLE OF IC
FL DISPLAY .....................
REPLACEMENT PARTS LIST/EXPLODED VIEW
PACKING OF THE SET (FOR U.S.At ONLY)

\ /
