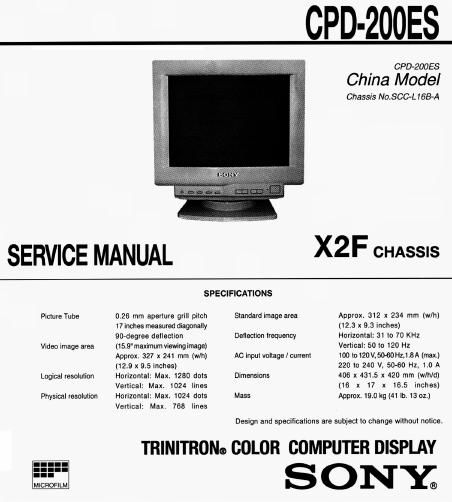

Page 1

SERVICE MANUAL

CPD-200ES

CPD-200ES

China Model

Chassis No.SCC-L16B-A

X2F CHASSIS

Picture Tube

Video image area

Logical resolution

Physical resolution

MlCFIOFILM

SPECIFICATIONS

0.26 mm aperture grill pitch
17 inches measured diagonally
Bil-degree dellection

(15.9" maximum viewing image)
Approx. 327 x 241 mm (w/h)
(12.9 x 9.5 inches)
Horizontal: Max. 1280 dots
Vertical: Max. 1024 lines
Horizontal: Max. 1024 dots
Vertical: Max. 768 lines

Standard image area
Deflection Irequency

AC input voltage / current
Dimensions

Mass

Approx. 312 x 234 mm (w/h)
(12.3 x 9.3 inches)

Horizontal: 31 to 70 KHz
Vertical: 50 to 120 Hz

100 to 120 V, 50-60 Hz,1.8A (max)
220 to 240 V. 50-60 Hz, 1.0 A
406 x 431.5 x 420 mm (w/h/d)
(16 x 17 x 16.5 inches)
Approx. 19.0 kg (41 lb. 13 02.)

Design and specifications are subject to change without notice.

TRINITRONo COLOR COMPUTER DISPLAY

SONY.

Page 2

CPD-200ES

POWER SAVING FUNCTION

This monitor meets the power saving guidelines set
by the EPA Energy Star Program as well as the more
stringent TCO92 guidelines (NUTEK). It is capable of
reduced power consumption when used with a com-
puter equipped with Display Power Management Sig-
naling (DPMS). By sensing the absence of the sync
signal coming from the computer, it will reduce the
power consumption as follows:

CAUTION: The Power Saving function will automati-
cally put the monitor into Active-off state
if the power switch is turned on without
any video signal input. Once the horizon-
tal and vertical syncs are sensed, the moni-
tor will automatically return to its Normal
operation state.

State Power Required 0 Power indicator
consumption resumption time
1 Normal Operation 51 10 W green on
Suspend orange and green
, 515 W a rox. 3 sec.
2 (1 st step of power savmg) pp flaShGS alternately
Active-off oran e and res
3 _ 15 w a rox. 1 . 9 9 "
(2nd step of power savmg) S pp 0 sec flashes alternately
4 Active-off 58 W approx. 10 sec. orange on
(3rd step of power saving)
5 Power - Off 0 W off
TIMING SPECIFICATION
Mode 1 2 3 4 5 6 7 B
Resolution(H x V) 640 X 480 640 x 480 800 x 600 800 x 600 832 X 624 1024 x 768 1280 x 1024 1024 x 768
1301 ClocklMHz) 25.175 36.000 49.500 56.250 57.288 78.750 108.000 94.500
Horizontal
Hm. Freq. (kHz) 31.469 43.269 46.875 53.674 49.725 60.023 63.961 68.677
14.13131 31.778 23.111 21.333 18.631 20.111 16.660 15.630 14.561
H-Blanking 6.356 5.333 5.172 4.409 5.586 3.657 3.778 3.725
14.me porch 0.636 1.556 0.323 0.569 0.559 0.203 0.444 0.508
H-Sync. 3.813 1.556 1.616 1.138 1.117 1.219 1.037 1016
11.3391. porch 1.907 2.222 3.232 2.702 3.910 2.235 2.296 2.201
H.Acnve 25.422 17.778 16.162 14.222 14.524 13.003 11.852 10.836
(uses)
Vertical
Ve,_ Freq, (HZ) 59.940 85.008 75.000 85.061 74.550 75.029 60.020 84.997
V_Tota| 525 509 625 631 667 800 1066 808
V_Blanking 45 29 25 31 43 32 42 40
V-Front Porch 10 1 1 1 1 1 1 1
V-Sync. 2 3 3 3 3 3 3 3
Mack pom, 33 25 21 27 39 2e 38 36
WWW 430 430 600 600 624 768 1024 768
(lines)
Sync.
|NT(G) NO NO NO NO NO NO NO NO
EXT (H/V)/POLAR|TY YES -/- YES -/- YES +/+ YES +/+ YES -/- YES +I+ YES +/+ YES +/+
EXT (CS)/POLARITY NO NO NO NO NO NO NO NO
INT/NON INT NON INT NON INT NON INT NON INT NON INT NON INT NON INT NON INT
