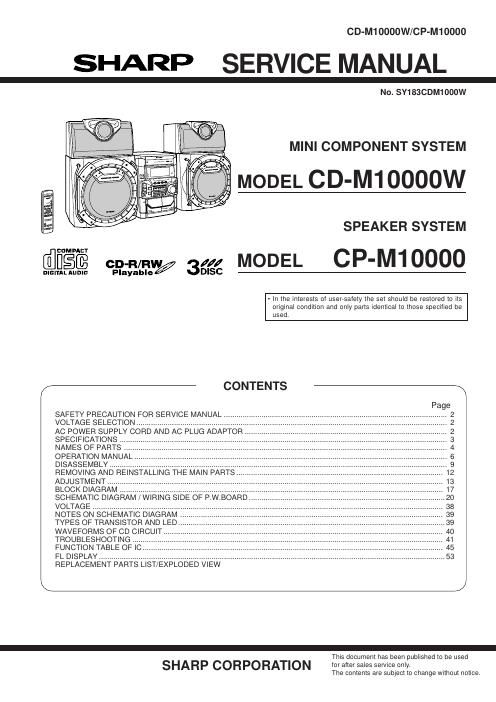

Page 1
CD-M10000W/CP-M10000
SHARP SERVICE MANUAL
No. SY183CDM1000W
MINI COMPONENT SYSTEM
' "W. MODEL CD-M10000W
SPEAKER SYSTEM
[WEE Gamay 35.2% MODEL CP-M10000
- In the interests of user-salety the set should be restored to its
original condition and only parts identical to those specified be
used.
/- CONTENTS %
SAFETY PRECAUTION FOR SERVICE MANUAL.
VOLTAGE SELECTION ..........................................
AC POWER SUPPLY CORD AND AC PLUG ADAP
SPECIFICATIONS
NAMES OF PARTS ..
OPERATION MANUAL
DISASSEMBLY ............
REMOVING AND REINSTALLING THE MAIN PARTS.
ADJUSTMENT ......
BLOCK DIAGRAM
SCHEMATIC DIAGRA
VOLTAGE ..........................................
NOTES ON SCHEMATIC DIAGRAM
TYPES OF TRANSISTOR AND LED.
WAVEFORMS OF CD CIRCUIT.
TROUBLESHOOTING .....
FUNCTION TABLE OF IC
FL DISPLAY .....................
REPLACEMENT PARTS LIST/EXPLODED VIEW
This document has been published to be used
SHARP CORPORATION for after sales service only.
The contents are subject to change without notice.
Page 2
CD-M10000W/CP-M10000
SAFETY PRECAUTION FOR SERVICE MANUAL
WARNINGS
THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER
COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. THEREFORE IT IS
IMPORTANT THATTHE FOLLOWING PRECAUTIONS ARE OBSERVED DURING SERVICING TO PROTECT YOUR EYES
AGAINST EXPOSURE TO THE LASER BEAM.
1-WHEN THE CABINET IS REMOVED, THE POWER ISTURNED ON WITHOUTA COMPACT DISC IN POSITION AND THE
PICKUP IS ON THE OUTER EDGE THE LASER WILL LIGHT FOR SEVERAL SECONDS TO DETECT A DISC. DO NOT
LOOK INTO THE PICKUP LENS.
2-THE LASER POWER OUTPUT OF THE PICKUP UNIT AND REPLACEMENT SERVICE PARTS ARE ALL FACTORY
PRESET BEFORE SHIPMENT.
DO NOT ATTEMPT TO READJUST THE LASER PICKUP UNIT DURING REPLACEMENT OR SERVICING.
3-UNDER NO CIRCUMSTANCES STARE INTO THE PICKUP LENS AT ANY TIME.
4-CAUTION-USE OF CONTROLS OR ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
Laser Diode Properties
Material: GaAlAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
BAIITIIIII-IIIVISIIILE LkSEII HADIATIIJN WIIEII OPEII.
D0 IIIJT STARE IIITD BEAM UII VIEW DIRECTLY WITII
IIPTICAI IIISTRUIIEITS.
WAIIIIUIIli-UIISICIITBAIIE LASERSTIIAIILUIIG WEIIII BER
GEI'IFFIIET. IIIEIIT III I'lIE XTIIAHLUIIE SBIIAUEII IlI'lEI'I
DIIIEKT MIT DPTISDIIEII IIILFSIIITTELII BETIIAEIITEII.
ATTEII'IIIIII-IIIVUII LASEI INVISIBLE EII EAS D'IIUIIEIITUIIE.
IIE PAS HEEAIIDEII LE FAIREEAU IIIIIECTEMEIIT flU AVEE DES
INSTRUMENTS flPTIflUES
VOLTAGE SELECTION
Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage
as follows.
Turn the selectorwith a screwdriver until the appropriate voltage number appears in the window(110 V, 127 V, 220 V or 230 V-240 V AC).
AC POWER SUPPLY CORD AND AC PLUG ADAPTOR
QACCAOOOSAWOO QACCLOOO7AWOO
E D
QACCE0014AW00 QPLGAOOOBAWZZ QPLGAOOOSAWZZ
