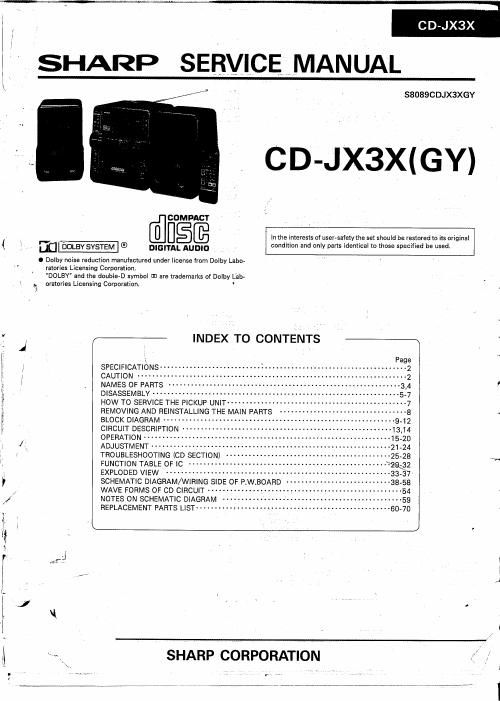

Sharp cd jx 3 x service manual

Page 2

CD-JX3X

FOR A COMPLETEDESCRIPTION OF THE~0PERATION OF THIS UNIT, PLEASE
REFER TO THE OPERATION MANUAL.

SPECIFICATIONS ,
General Cassette deck section II
Power source: AC 240V, 50 Hz (For Australia) , Tape: Compact cassette tape
AC 110V, 60 Hz (For Taiwan) Motor: DC motor x 1
AC 220V, 50/60 Hz (For other areas) Head: TAPE-1: Playback x 1
Power consumption: 100 W TAPE-2: Record/ playback x 1
Dimensions: Width; 238 mm (9-3/8) Erase x 1 H .
Height; 282 mm (1-1 1/8 ) . Tape speed: 4.76 cm/sec (1-7/8 ips.) 3 I
Depth, 262 mm (10- 3/8) - Bias and erasure system:
-Weight: 5. 6 kg (12.4 lbs.) 3 AC %»
Compact disc player section Speaker section
Type: Compact disc player Type: 2-way speaker
Decoder: 16-bit linear quantization Drivers: Main speaker; 100 mm (4')
Dynamic range: 90 dB Bass speaker; 100 mm (4")
Frequency response: 20 - 20,000 Hz (+1/-3dB) Rated power: Main speaker; 13W (MAX)
Filter: 16-bit digital filter and active filter Bass speaker; 20W (MAX)
Signal readout: Non-contact, 3-beam semi-conductor Impedance: Main speaker; 6 ohms
laser pick-up 1, Bass speaker; 8 ohms . N ,.
Rotational speed: 200 - 500mm CLV ' ' ' Dimensions: Width; 170 mm (6-3/4") 'r( \
Error correction: CIRC (Cross Interleave Reed-solomon , Height; 273 mm (10-3/4) *
Code) Depth; 269 mm (10-5/8)
Audio channels: 2 Weight: 2.7 kg (6.0 lbs.I/each
Tuner section .

' FM section)
Frequency range: FM: 88-108 MHz (1 OOkHz span)

h
(AM section) Specifications for this model are subject to change wit out

Frequency range: AM;531-1,602 kHz (9kHz span) prior notice.
Amplifier section , » ..
Power output: Main speaker (RMS); 3.5W x 2,

T. H. D. ,10%

Bass speaker (RMS); 8. 5W x 2,

T. H. D. ,10%
Input terminals: AUX input, 250 mV/50 kohms
Output terminals: Headphones; 16-50 ohms

(recommended 32 ohms)

Main speaker; 6 ohms

Bass speaker; 8 ohms

CAUTION QACCLOOSBAFOO

After completing all repairs, to reset this unit completely, set it I 4

according to the following procedure.

1. Connect the power supply plug to an outlet. After turning
the power switch on, turn on the TAPE 2 detection switch
on the cassette mechanism (the TAPE 2 indicator goes on), ., . . I
and set to the fast forward mode (»I and disconnect the QACCVOOOIAGZZ

power supply plug.
2. After that, press the reset button for 30 seconds.

3. Adjust each control and sWItch.
>l< After adjusting the above, do not turn the power on.
(When the power is turned on, perform steps 1 - 3 again.) OACCZOOGSAFOO u /

AA

JIITI A A

~ WW , , ' Figure2 Ac POWERSUPPLY soaps 73.5.... A A .
