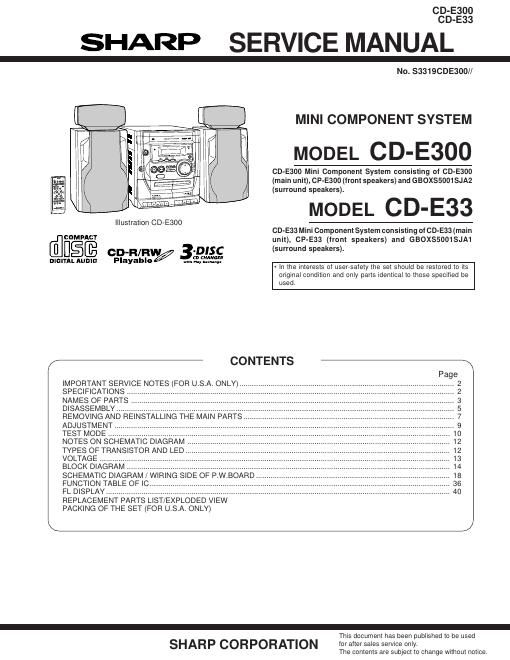

Sharp cd e 33 e300
This is the 52 pages manual for sharp cd e 33 e300.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sharp cd e 33 e300 (Ocr-read)
Page 2
CD-E300
CD-E33
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)
BEFORE RETURNING THE AUDIO PRODUCT
(Fire & Shock Hazard)
Before returning the audio product to the user, perform the
following safety checks.
1. Inspect all lead dress to make certain that leads are not
pinched orthat hardware is not lodged between the chassis
and other metal parts in the audio product.
. Inspect all protective devices such as insulating materials,
cabinet, terminal board, adjustment and compartment covers
or shields. mechanical insulators etc.
. To be sure that no shock hazard exists, check for leakage
current in the following manner.
Plug the AC line cord directly into a 120 volt AC outlet.
Using two clip leads, connect a 1.5 kohm, 10 watt resistor
paralleled by a 0.15 uF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.
Use a VTVM or VOM with 1000 ohm per volt, or higher,
sensitivity to measure the AC voltage drop across the
resistor (See diagram).
Connect the resistor connection to all exposed metal parts
having a return path to the chassis (antenna, metal cabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.
5%
VTVM
'0 AC SCALE 0"
1.5 kohms
10 W
0.15tiF
TEST PROBE CONNECT TO
KNOWN EARTH
GROUND
TO EXPOSED
METAL PARTS
AllcheckmustberepeatedwiththeAClinecord plug connection
reversed.
Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.
TO THE OPERATION MANUAL.
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
I General I Tuner
Power source AC 120 V, 60 Hz Frequency range FM: 87.5 - 108 MHz
Power 64 W AM: 530 - 1,720 kHz
consumption
Dimensions Width: 10-5/8" (270 mm) I Cassette deck
Height: 12" (305 mm) Frequency 125 - 8,000 H2 (normal tape)
Depth: 13-1/2" (343 mm) response
Weight 14.5 lbs. (6.6 kg) Signal/noise ratio 50 dB (TAPE 1, recording/playback)
l Amplifier (Except for Canada)
Output power
33 watts minimum RMS per channel into 8
50 dB (TAPE 2, playback)
Wow and flutter
0.3 % (WRMS)
Specifications for this model are subject to change without
ohms from 100 Hz to 20 kHz, 10% total har- I Front Speaker
monic distortion Type 2-way type speaker system
Output terminals Front speakers: 8 ohms Tweeter
Surround speakers: 16 ohms 4" (10 cm) Woofer
Headphones: 16 - 50 ohms (recommended: Maximum input 45 w
32 ohms) power
I Amplifier (For Canada) at '"P" W 23 W
Impedance 8 ohms
Output power RM8: 66 W (33 W + 33 W) (10 % T.H.D.) Dimensions Width: 7-7/8" (200 mm)
Output terminals Front speakers: 8 ohms Height: 12" (305 mm)
Surround speakers: 16 ohms Depth: 6-7/8" (175 mm)
Headphones: 16 - 50 ohms (recommended: Waighl 6.0 lbs. (2.7 kg)/each
32 0th) l Surround speaker
I CD Player Type 3" (8 cm) full-range speaker
Type 3-disc multi-play compact disc player Maximum input 20 W
Signal readout Non-contact, 3-beam semiconductor laser power
pickup Rated input power 10 W
D/A converter 1-bit D/A converter Impedance 16 ohms
Frequency 20 - 20,000 Hz Dimensions Width: 7-11/16" (195 mm)
response Height: 4" (100 mm)
Dynamic range 90 dB (1 kHz) Depth: 5-1/2" (140 mm)
Weight 1.5 lbs. (0.7 kg)/each
prior notice.
Page 2
CD-E300
CD-E33
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)
BEFORE RETURNING THE AUDIO PRODUCT
(Fire & Shock Hazard)
Before returning the audio product to the user, perform the
following safety checks.
1. Inspect all lead dress to make certain that leads are not
pinched orthat hardware is not lodged between the chassis
and other metal parts in the audio product.
. Inspect all protective devices such as insulating materials,
cabinet, terminal board, adjustment and compartment covers
or shields. mechanical insulators etc.
. To be sure that no shock hazard exists, check for leakage
current in the following manner.
Plug the AC line cord directly into a 120 volt AC outlet.
Using two clip leads, connect a 1.5 kohm, 10 watt resistor
paralleled by a 0.15 uF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.
Use a VTVM or VOM with 1000 ohm per volt, or higher,
sensitivity to measure the AC voltage drop across the
resistor (See diagram).
Connect the resistor connection to all exposed metal parts
having a return path to the chassis (antenna, metal cabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.
5%
VTVM
'0 AC SCALE 0"
1.5 kohms
10 W
0.15tiF
TEST PROBE CONNECT TO
KNOWN EARTH
GROUND
TO EXPOSED
METAL PARTS
AllcheckmustberepeatedwiththeAClinecord plug connection
reversed.
Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.
TO THE OPERATION MANUAL.
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
I General I Tuner
Power source AC 120 V, 60 Hz Frequency range FM: 87.5 - 108 MHz
Power 64 W AM: 530 - 1,720 kHz
consumption
Dimensions Width: 10-5/8" (270 mm) I Cassette deck
Height: 12" (305 mm) Frequency 125 - 8,000 H2 (normal tape)
Depth: 13-1/2" (343 mm) response
Weight 14.5 lbs. (6.6 kg) Signal/noise ratio 50 dB (TAPE 1, recording/playback)
l Amplifier (Except for Canada)
Output power
33 watts minimum RMS per channel into 8
50 dB (TAPE 2, playback)
Wow and flutter
0.3 % (WRMS)
Specifications for this model are subject to change without
ohms from 100 Hz to 20 kHz, 10% total har- I Front Speaker
monic distortion Type 2-way type speaker system
Output terminals Front speakers: 8 ohms Tweeter
Surround speakers: 16 ohms 4" (10 cm) Woofer
Headphones: 16 - 50 ohms (recommended: Maximum input 45 w
32 ohms) power
I Amplifier (For Canada) at '"P" W 23 W
Impedance 8 ohms
Output power RM8: 66 W (33 W + 33 W) (10 % T.H.D.) Dimensions Width: 7-7/8" (200 mm)
Output terminals Front speakers: 8 ohms Height: 12" (305 mm)
Surround speakers: 16 ohms Depth: 6-7/8" (175 mm)
Headphones: 16 - 50 ohms (recommended: Waighl 6.0 lbs. (2.7 kg)/each
32 0th) l Surround speaker
I CD Player Type 3" (8 cm) full-range speaker
Type 3-disc multi-play compact disc player Maximum input 20 W
Signal readout Non-contact, 3-beam semiconductor laser power
pickup Rated input power 10 W
D/A converter 1-bit D/A converter Impedance 16 ohms
Frequency 20 - 20,000 Hz Dimensions Width: 7-11/16" (195 mm)
response Height: 4" (100 mm)
Dynamic range 90 dB (1 kHz) Depth: 5-1/2" (140 mm)
Weight 1.5 lbs. (0.7 kg)/each
prior notice.
