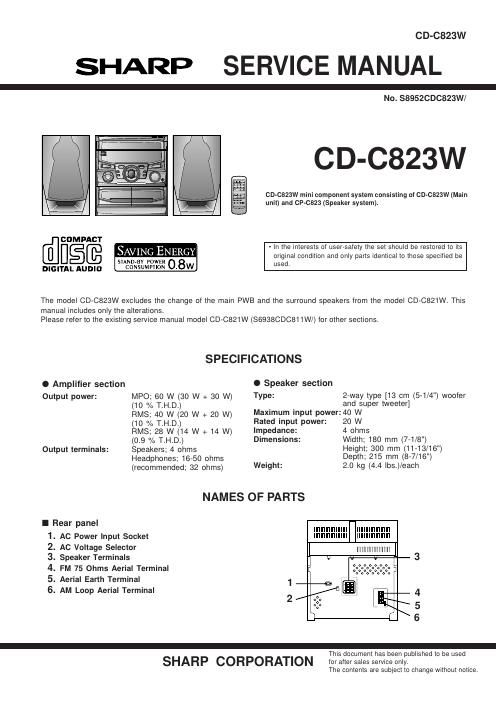

CD-C823W

SHARP SERVICE MANUAL

SAVING ENERGY
SIANDaBY POWTR 0 8W

SUMFTION

[flfigfi

DIGITAL AUDIO

No. $8952CDC823W/

CD-C823W

(Mill

CD-0823W mini component system consisting of CD-CS23W (Main
unit) and CP-CSZS (Speaker system).

used.

- In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be

The model CD-6823W excludes the change of the main PWB and the surround speakers from the model CD-CB21W. This

manual includes only the alterations.

Please refer to the existing service manual model CD-CBZIW ($693BCD0811W/) for other sections.

0 Amplifier section

Output power:
(10 % T.H.D.)

RM8; 40 W (20 W + 20 W)

(10 % T.H.D.)

RM8; 28 W (14 W +14 W)

(0.9 % T.H.D.)
Output terminals:

MPO; 60 W (30 W + 30 W)

Speakers; 4 ohms

SPECIFICATIONS

0 Speaker section
Type:

Maximum input power:
Rated input power:
Impedance:
Dimensions:

Headphones; 16-50 ohms

(recommended; 32 ohms)

l Rear panel

AC Power Input Socket

. AC Voltage Selector

. Speaker Terminals

. FM 75 Ohms Aerial Terminal
. Aerial Earth Terminal

. AM Loop Aerial Terminal

monsoon:-

SHARP CORPORATION

Weight:

NAMES OF PARTS

2-way type [13 cm (5-1/4") woofer
and super tweeter]

40 W

20 W

4 ohms

Width; 180 mm (7-1/8")

Height; 300 mm (11-13/16")
Depth; 215 mm (8-7/16")

2.0 kg (4.4 Ibs.)/each

The

This document has been published to be used
for after sales service only.

contents are subject to change without notice.
