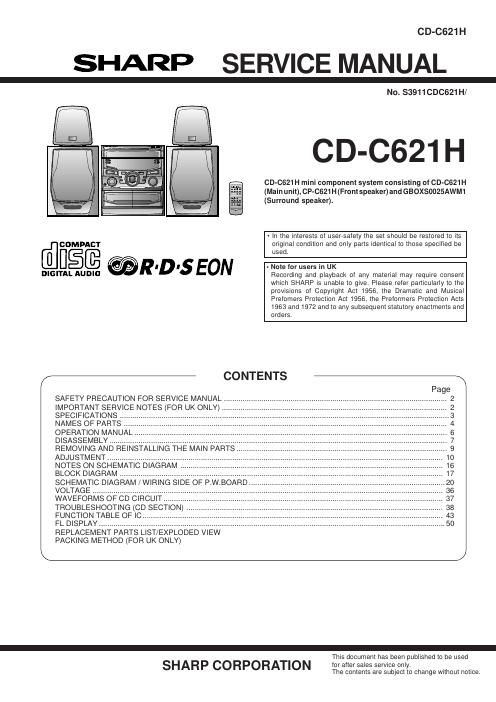

Sharp cd c 621 h service manual

Page 2

CD-0621 H

NOTES ON SCHEMATIC DIAGRAM

- Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with Fusible is a fuse
type.

- Capacitor:

To indicate the unit of capacitor. a symbol P is used: this

symbol P means micro-micro-farad and the unit of the

capacitor without such a symbol is microfarad. As to

electrolytic capacitor, the expression capacitance/withstand

voltage is used.

(CH), (TH), (RH), (UJ): Temperature compensation

(ML): Mylar type

(PP): Polypropylene type

Schematic diagram and Wiring Side of P.W.Board for this

model are subject to change for improvement without prior

notice.

. The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,

( ) indicates AM

< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.

( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
Parts marked with A ( I: Z Z Z :I) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.

REF. NO DESCRIPTION POSITION REF. NO DESCRIPTION POSITION
SW1 OPEN/CLOSE ON-E SW716 TAPE ON-fl
SW2 MECHA UP ON-E SW717 CD ON-fl
SW3 DISC NUMBER ON-E SW718 PTY/Tl SEARCH ON-E
SW4 PICKUP IN ON-fl SW719 EON ON-E
SW701 POWER ON-fl SW720 ASPM ON-E
SW702 STATION ON-E SW721 DISPLAY MODE ON-fl
SW703 CLOCK ON-fl SW722 FF ON-fl
SW704 TIMER/SLEEP ON-E SW723 TUNING UP ON-E
SW705 DISC 1 ON-fl SW724 TUNING DOWN ON-E
SW706 DISC 2 ON-fl SW725 PLAY ON-E
SW707 DISC 3 ON-E SW726 VOLUME DOWN ON-fl
SW7D8 DISC SKIP ON-E SW727 VOLUME UP ON-fl
SW709 OPEN/CLOSE ON-E SW728 X-BASS/DEMO ON-E
SW710 REV ON-fl SW729 EQUALIZER ON-E
SW711 REC PAUSE ON-fl SW730 DIMMER ON-E
SW712 MEMORY/SET ON-E SWM 3 FOOL PROOF ON-fl
SW713 STOP ON-E SWM 4 F.A.S. ON-fl
SW714 TUNER (BAND) ON-E SWM 5 CAM ON-E
SW715 VIDEO/AUX ON-fl
FRONT VIEW
FRONT
VIEW
(E) (8) (BB) _H5
(1) <2) <3)
28A1015 GR KTA1271 Y L1154GT4
280380 0 KTA1273 Y SLI342YCB
KRC102 M KTD2058 Y SLI342DCB
KRC104 M KTC3199 GR SLI342UCB
KRC107 M KTC3203 Y SLI342YCJ
KTA1266 GR

Figure 16 TYPES OF TRANSISTOR AND LED
