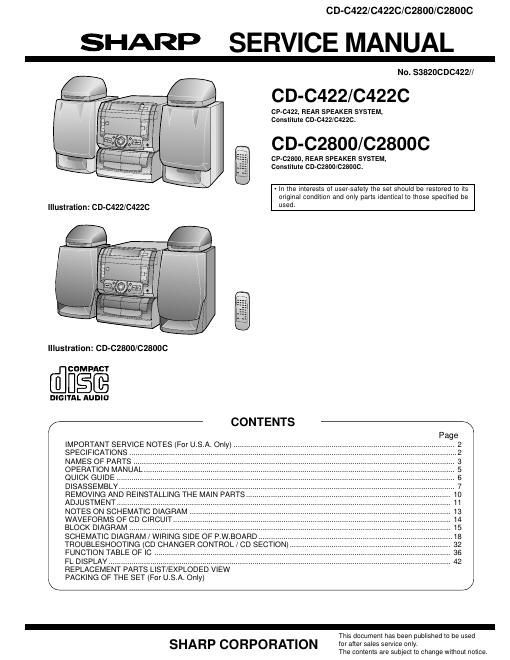

Sharp cd c 422 service manual

Page 2

CD-C422/C422C/C2800/C2800C

TO THE OPERATION MANUAL.

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

IMPORTANT SERVICE NOTES (For U.S.A.On|y)

BEFORE RETURNING THE AUDIO PRODUCT

(Fire & Shock Hazard)

Before returning the audio product to the user, perform the

following safety checks.

1. Inspect all lead dress to make certain that leads are not
pinched orthat hardware is not lodged between the chassis
and other metal parts in the audio product.

2. Inspect all protective devices such as insulating materials,
cabinet, terminal board, adjustment and compartment
covers or shields, mechanical insulators etc.

3. To be sure that no shock hazard exists, check for leakage
current in the following manner.

* Plug the AC line cord directly into a 120 volt AC outlet.

* Using two clip leads, connect a 1.5k ohm, 10 watt resistor
paralleled by a 0.15uF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.

* Use a VTVM or VOM with 1000 ohm per volt, or higher,
sensitivity to measure the AC voltage drop across the
resistor (See diagram).

Connect the resistor connection to all exposed metal parts
having a return path to the chassis (antenna, metal cabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.

x

®

VTVM
-0AC SCALE 0-

1.5k ohms
10W

L,

0.15 it F
TEST PROBE

CONNECT TO
KNOWN EARTH
GROUN D

TO EXPOSED
METAL PARTS

AllcheckmustberepeatedwiththeAClinecord plug connection
reversed.

Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.

SPECIFICATIONS

CD-C422/C422C/
czaoo/czsooc
0 General

Power source:
Power consumption:

AC 120 V, 60 Hz
50 W

Dimensions: Width; 10-5/8" (270 mm)
Height; 1113/16" (303 mm)
Depth; 137/16" (341 mm)
Weight: 11.2 lbs. (5.1 kg)

0 Amplifier section
Output power:
(CD-C422/C2800)

20 watts minimum RMS per channel into
4 ohms from 100 Hz to 20 kHz, 10 %
total harmonic distortion

MPO; 60 W (30 W + 30 W)

(10 % T.H.D.)

RMS; 40 W (20 W + 20 W)

(1 o % T.H.D.)

Front speakers; 5.4 ohms

Rear Speakers; 16 ohms
Headphones; 18-50 ohms
(recommended; 32 ohms)
Video/Auxiliaary (audio signal);

245 mV/47 kohms

Output power:
(CD-C422C/C2800C)

Output terminals:

Input terminal:

0 Tuner section
Frequency range: FM; 87.5 . 108 MHz

AM; 530 > 1,720 kHz

0 Cassette deck section

Frequency response: 50 - 14,000 Hz (Normal tape)
Signal/noise ratio: 55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)
Wow and flutter: 0.15 % (WRMS)

0 Compact disc player section

Type: 3»disc multi»play compact disc player

Signal readout: Non»contact, 3»beam semiconductor
laser pickup

D/A Converter: 1-bit D/A converter

Frequency response: 20 - 20,000 Hz

Dynamic range: 90 dB (1 kHz)

0 Front speaker section

CP-C422

Type: 2-way type [5-1/4" (130 mm) woofer and
super tweeter]

Maximum input power: 30 W
Impedance: 5.4 ohms
Dimensions: Width; 74/8" (180 mm)
Height; 11-13/16" (300 mm)
Depth; 8-1/16" (204 mm)
Weight: 4.6 lbs. (2.1 kg)/each
CP-C2800
Type: 3-way type [4" (100 mm) woofer, 2" (50mm)

tweeter and super tweeter]

Maximum input power: 30 W

Impedance: 5.4 ohms

Dimensions: Width; 7-1/8" (180 mm)
Height; 11-13/16" (300 mm)
Depth; 8-1/16" (204 mm)

Weight: 4.6 lbs. (2.1 kg)/each

0 Rear speaker section

REAR SPEAKER SYSTEM

Type: 4" (100 mm) full range speaker

Maximum input power: 10 W

Impedance: 16 ohms

Dimensions: Width; 6-11/16" (170 mm)
Height; 46/4" (120 mm)
Depth; 5-7/8" (175 mm)

Weight: 1.3 lbs. (0.8 kg)/each

Specifications for thrs model are subject to change without prior notice.
