Sharp cd c 1 h service manual

Page 1

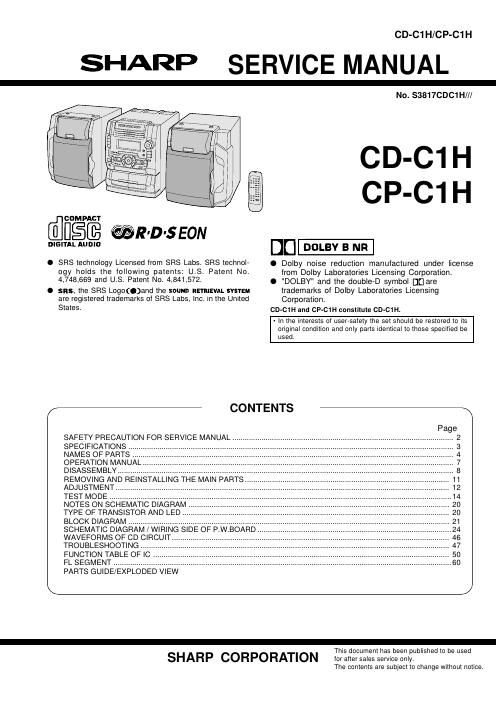

CD-C1H/CP-C1H

SHARP SERVICE MANUAL

No. $3817CDC1H/ll

CD-C1 H
CP-C1 H

[flcflgfi @R-o-ssom

DIGITAL AUDIO DU DOLBY 8 NR

0 SRS technology Licensed from SRS Labs. SRS technol» O Dolby noise reduction manufactured under license
ogy holds the following Patonlsi U.S. Palem No. from Dolby Laboratories Licensing Corporation.
4,748,669 and US. Patent No. 4,841,572. . "DOLBY" and the double-D symbol DCI are

0 sns, the SRS Logo(.)and the souun RETRIEVAL svsrem trademarks of Dolby Laboratories Licensing
are registered trademarks of SRS Labs. Inc. in the United Corporation.
Stales- CD-C1H and CP-C1H constitute CD-C1 H.

- In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.

(- CONTENTS

SAFETY PRECAUTION FOR SERVICE MANUAL
SPECIFICATIONS
NAMES OF PARTS ..
OPERATION MANUA .

DISASSEMBLY .............
REMOVING AND REINSTALLING THE MAIN PARTS . 11
ADJUSTMENT... . 12

TEST MODE ......
NOTES ON SCHEMATIC DIAGRAM
TYPE OF TRANSISTOR AND LED ..
BLOCK DIAGRAM ............................
SCHEMATIC DIAGRAM /W|R|NG SIDE OF P.W.BOARD.
WAVEFORMS OF CD CIRCUIT
TROUBLESHOOTING .....
FUNCTION TABLE OF IC
FL SEGMENT
PARTS GUIDE/E

This document has been published to be used

SHARP CORPORATION for after sales service only.

The contents are subject to change without notice.
