Page 2

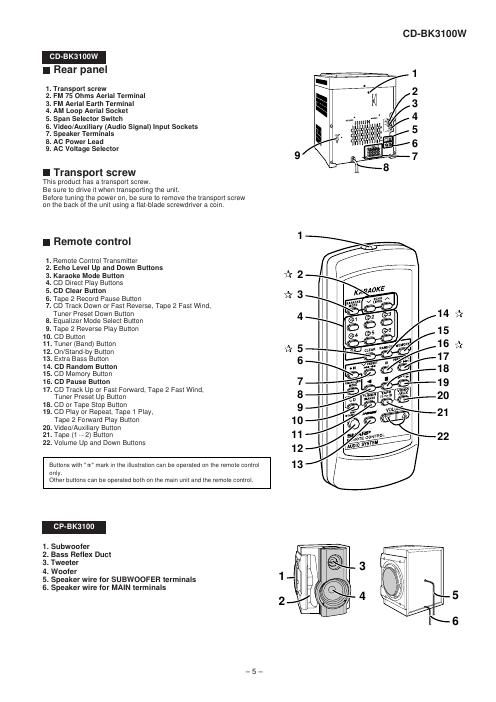

CD-BK3100W

SAFETY PRECAUTION FOR SERVICE MANUAL

WARNINGS
THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER
COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. THEREFORE IT IS
IMPORTANT THAT THE FOLLOWING PRECAUTIONS ARE OBSERVED DURING SERVICING TO PROTECT YOUR EYES
AGAINST EXPOSURE TO THE LASER BEAM.
1-WHEN THE CABINET IS REMOVED, THE POWER ISTURNED ON WITHOUT A COMPACT DISC IN POSITION AND THE
PICKUP IS ON THE OUTER EDGE THE LASER WILL LIGHT FOR SEVERAL SECONDS TO DETECT A DISC. DO NOT
LOOK INTO THE PICKUP LENS.
2-THE LASER POWER OUTPUT OF THE PICKUP UNIT AND REPLACEMENT SERVICE PARTS ARE ALL FACTORY
PRESET BEFORE SHIPMENT.
DO NOT ATTEMPT TO READJUST THE LASER PICKUP UNIT DURING REPLACEMENT OR SERVICING.
3-UNDER NO CIRCUMSTANCES STARE INTO THE PICKUP LENS AT ANY TIME.
4-CAUTION-USE OF CONTROLS OR ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Laser Diode Properties
Material: GaAlAs
Wavelength. 780 nm

Emission Duration: continuous
Laser Output: max 0.6 mW

CLASS1LISER PRODUBI
APPAHEIL A LASEII DE CLASSEI
PIIDIJUDTD LASER I'IE DLASE 1

VOLTAGE SELECTION

Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage
as follows.
Turn the selectorwith a screwdriver until the appropriate voltage number appears in the window(110 V, 127 V, 220 V or 230 V-240 V AC).

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR

QACCA0003AW00 QACCJ0007AWOO/QACCZOOO7AW00
E D
QACCBOOl 1AW00 QACCLOOOSAWOO
n
QACCE0008AW°° QPLGAOOO3AWZZ QPLGAOOO4AWZZ
QACCE001 OAWOO
