Page 1

CD-BA3100

SHARP SERVICE MANUAL

No. $2111CDBA3100

O MINI COMPONENT SYSTEM

MODEL CD-BA3100

CD-BA3100 Mini Component System consisting of
CD-BA3100 (main unit) and CP-BA3100 (speaker system).

- In the interests of user-safety the set should be restored to its
COMPACT original condition and only parts identical to those specified be
use
DIGITAL AUDIO
Playable/ $432.

/- CONTENTS -\

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)
SPECIFICATIONS .....
NAMES OF PARTS
OPERATION MANUAL.
DISASSEMBLY ..............................................................
REMOVING AND REINSTALLING THE MAIN PARTS.
ADJUSTMENT ...............................................................
CD CHANGER MECHANISM MAIN BASE PARTS ASSEMBLING/ADJUSTING PROCEDURE.
BLOCK DIAGRAM ...............................................................
SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD.
VOLTAGE
NOTES ON S
TYPES OF TRANSISTOR AND LED.
WAVEFORMS OF CD CIRCUIT.
TROUBLESHOOTING ......
FUNCTION TABLE OF IC.
FL DISPLAY
REPLACEMEN
PACKING OF THE SET (FOR U.S.A. ONLY)

This document has been published to be used

SHARP CORPORATION for after sales service only.

The contents are subject to change without notice.

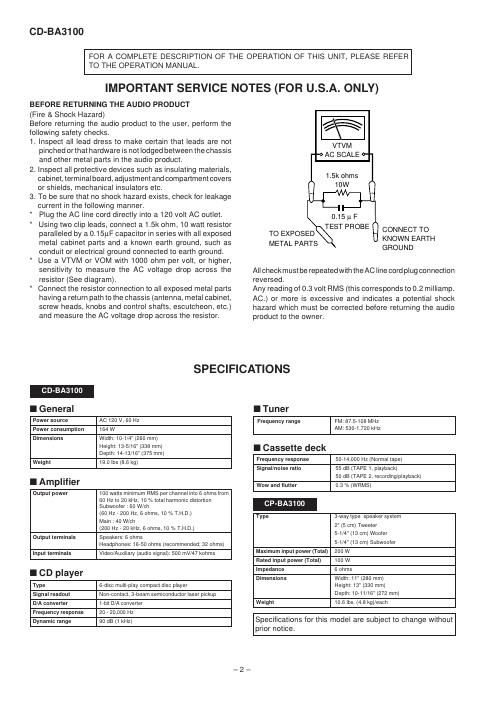

Page 2

CD-BA3100

TO THE OPERATION MANUAL.

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)

BEFORE RETURNING THE AUDIO PRODUCT

(Fire & Shock Hazard)

Before returning the audio product to the user, perform the

following safety checks.

1. Inspect all lead dress to make certain that leads are not
pinched orthat hardware is not lodged between the chassis
and other metal parts in the audio product.

. Inspect all protective devices such as insulating materials,
cabinet, terminal board, adjustment and compartment covers
or shields, mechanical insulators etc.

.To be sure that no shock hazard exists, check for leakage
current in the following manner.

Plug the AC line cord directly into a 120 volt AC outlet.
Using two clip leads, connect a 1.5k ohm, 10 watt resistor
paralleled by a 0.1 SpF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.
Use a VTVM or VOM with 1000 ohm per volt, or higher,
sensitivity to measure the AC voltage drop across the
resistor (See diagram).

Connect the resistor connection to all exposed metal parts
having a return path to the chassis (antenna, metal cabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.

9%

VTVM
'0 AC SCALE 0'

1 .5k ohms
1 OW

0.15 (1 F
TEST PROBE
To EXPOSED CONNECT To
METAL PARTS KNOWN EARTH
GROUND

AllcheckmustberepeatedwiththeAClinecord plugconnection
reversed.

Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.

SPECIFICATIONS

CD-BA3100

I General

I Tuner

Power source AC 120 V, 60 Hz

164W

Power consumption

FM: 87.5-108 MHZ
AM: EEO-1,720 kHz

Frequency range

Dimensions Width: 10-1/4" (260 mm)
Height: 13-5/16" (338 mm)
Depth: 14-13/16" (375 mm)
Weight 19.0 lbs (8.6 kg)
I Amplifier

Output power 100 watts mintmum RMS per channel into 6 ohms lrom
60 Hz to 20 kHz, 10 % total harmonic dISIOVIlOH
Subwoofer . 60 W/ch

(60 HZ - 200 HZ, 6 ohms. 10 /a T.H.D.)

Main : 40 W/ch

(200 HZ - 20 kHz, 6 ohms.10 /a T.H.D.)

Speakers: 6 ohms

Headphones: 16-50 ohms (recommended: 32 ohms)

Video/Auxiliary (audio signal): 500 mV/47 kohms

Output terminals

Input terminals

l CD player

Type
Signal readout

6-disc multi-play compact disc player
Non-contact, B-oeam semiconductor laser pickup

D/A converter 1-bit D/A converter
Frequency response 20 - 20,000 Hz
Dynamic range 90 dB (1 kHz)

l Cassette deck

Frequency response

50-14000 Hz (Normal tape)

55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)
0.3 /a (WRMS)

Signal/noise ratio

Wow and llutter

CP-BA3100

Type

3-way type speaker system
2" (5 cm) Tweeter

5-1/4" (13 cm) Woofer
5-1/4" (13 cm) Subwoofer

Maximum input power (Total) 200 W

Rated input power (Total) 100 W

Impedance 6 ohms

Dimensions Width: 11" (280 mm)
Height: 13" (330 mm)
Depth: 10-11/16" (272 mm)

Weight 10.6 lbs. (4.8 kg)/each

Specifications for this model are subject to change without
prior notice.
