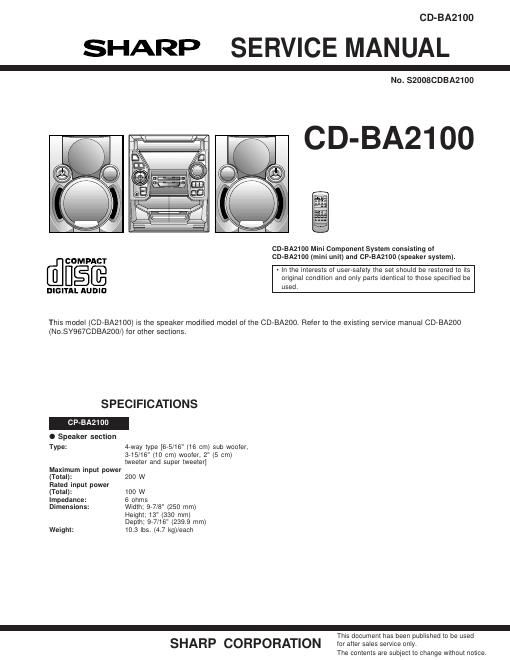

Page 1
CD-BA2100
SHARP SERVICE MANUAL
No. $2008CDBA2100
CD-BA2100
CD-BA2100 Mini Component System consisting of
COMPACT CD-BA2100 (mini unit) and CP-BA2100 (speaker system).
- In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
DIGITAL AUDIO used.
This model (CD-BA2100) is the speaker modified model of the CD-BAZOO. Refer to the existing service manual CD-BAZOO
(No.8Y967CDBA200/) for other sections.
SPECIFICATIONS
0 Speaker section
Type: 4-way type [6-5/16" (16 cm) sub woofer,
3-15/16" (10 cm) woofer, 2" (5 cm)
tweeter and super tweeter]
Maximum input power
(Total): 200 w
Rated input power
(Total): 100 W
Impedance: 6 ohms
Dimensions: Width; 9-7/8" (250 mm)
Height; 13" (330 mm)
Depth; 9-7/16" (239.9 mm)
Weight: 10.3 lbs. (4.7 kg)/each
This document has been published to be used
SHARP CORPORATION tor atter sales service only.
The contents are subject to change without notice.
