SHARP SERVICE MANUAL

S30260D320XBK

/ununu'nnnuunnunnuuuuuxu

CD-320XIGY)

DIGITAL AUDIO used.

- Dolby noise reduction manufactured under license from Dolby
,, Laboratories Licensing Corporation.

l "DOLBY" and the double-D symbolDClare trademarks of Dolby
Laboratories Licensing Corporation.

COMPACT
Ug® - In the interests of user-safety the set should be restored to its
DU DDLBY SYSTEM ® original condition and only parts identical to those specified be

/- ,, , INDEX TO CONTENTS ,,

SPECIFICATIONS ................................
CAUTIONS ON HANDLING THE UNIT.
VOLTAGE SELECTION ..
I NAMES OF PARTS.
PLAYING A DISC.
TROUBLESHOOTING ..
DISASSEMBLY ..........

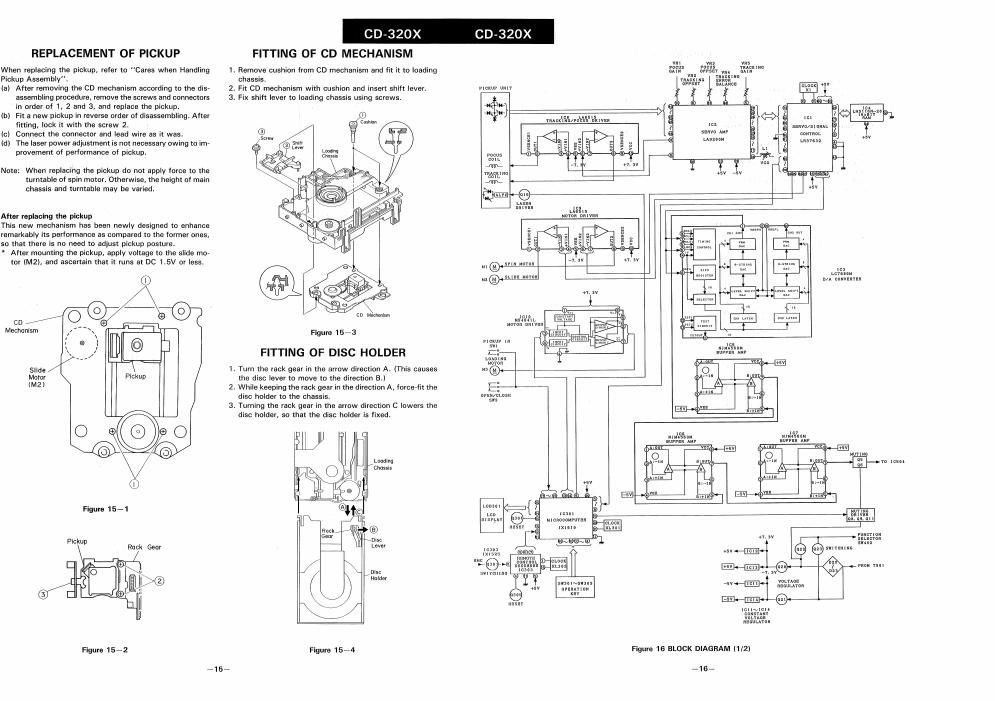

I REPLACEMENT OF PICKUP.

I ./' FITTING OF CD MECHANISM
I FITTING OF DISC HOLDER.
BLOCK DIAGRAM
ADJUSTMENT ........
FUNCTION TABLE OF IC .
EQUIVALENT CIRCUIT (BLOCK DIAGRAM) OF IC.
EXPLODED VIEW ..........................
NOTES ON SCHEMATIC DIAGRAM.
TYPES OF TRANSISTOR AND LED ..
SCHEMATIC DIAGRAM/WIRING SID . .
i REPLACEMENT PARTS LIST ......................................

SHARP CORPORATION

Page 2

co-320x }

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE
REFER TO THE OPERATION MANUAL.

I SPECIFICATIONS

Cassette deck section

Tape: Compact cassette tape

Frequency response: Normal tape; 30 < 17,000 Hz

CrO, tape; 30 . 18,000 Hz

Dolby NH off; 56 dB

Dolby NR effect: 10 dB [at over 5 kHz)

l Compact disc stereo system

General

Power source: AC 110/127/220 240 V, 5060 Hz
Power consumption: 360 W

Dimensions: Width; 360 mm l14-3/16")

Height; 386 mm MEI/4"]

Depth; 335 mm (13-1/4")

9.6 kg (21.2 Ibsi

S/N ratio:

Compact disc player section

Signal readout: Non-contact; semiconductor laser
Rotational speed: Approx. 200-500 rpm CLV

Error correction: CIFIC (Cross lnterleave Reed-Solomon

Weight:

Amplifier section

Peak music power output: Code)
640 W Audio channels: 2
Music power output: 2 x 80 W/ 8 ohms, 0.8 nla T.H.D. Decoder: 15-bit linear quantization

Continuous power output: Filter:
" 2 x 50 W/ 8 ohms, 0.8 u/rr T.H.D.
Input sensitivity and input impedance:
AUX; 350 rnV/47 kohms
PHONO; 2.7 mV/47 kohms
Loaded impedance: Speakers; 8 ohms
Headphones; 8 . 50 ohms
(recommended 32 ohms]

16-bit digital and active filter
Frequency response: 20 - 20,000 Hz

Dynamic range: 90 dB

Wow & flutter: Unmeasurable

Tuner section
Frequency range: FM: 88 . 108 MHz

AM; 531 < 1,602 kHz (9 kHz span)
AM; 530 . 1,620 kHz (10 kHz span)
FM; 1.6 pV

AM; 398 yV/rn (with loop aerial!

Usable sensitivity: Specifications for this model are subject to change with

out prior notice.

CAUTIONS ON HANDLING THE UNIT

' Dew condensation

You know such phenomenon that, in winter, a window-
pane of the heated room develops some amount of dews
on its surface. This phenomenon of dew condensation
may also occur at the object lens in the pick-up unit in
the following instances.

When the compact disc player is operated immediately
after you have turned on a heating device in your room.
When it is operated in a room full of wet air (with steam
or moisture).

- When it is operated in a warm place to which it has been
moved from a rather cold place.
If the object lens has some amount of dew condensed
on it, the compact disc player may fail to operate core
rectly as it cant read out the information data recorded
on the disc surface. If such occurs, remove the compact
disc from the disc table, turn on the power switch and
leave the unit for some time (about 1 hour at the longest);
then it will resume its normal operation.

I Proper use of the remote control

Aim (within range of 60° with no obstacles) the remote con
trol at the remote control sensor and operate as shown.

Exposing the sensor on the main unit to strong light can in»
terfere with operation. Change lighting or direction of the
unit.

Keep the remote control away from moisture, excessive
heat, shock, and vibrations.

The remote controls usable range is between 0.2 m (0.7
feet) and 6 m (20 feet) away from the sensor.

Notes concerning use:
Replace the batteries if control distance decreases or oper-
ation becomes erratic.
Periodically clean the transmitter window on the remote
control and the sensor on the main unit with a soft cloth.
