Scott R 327 Owners Manual

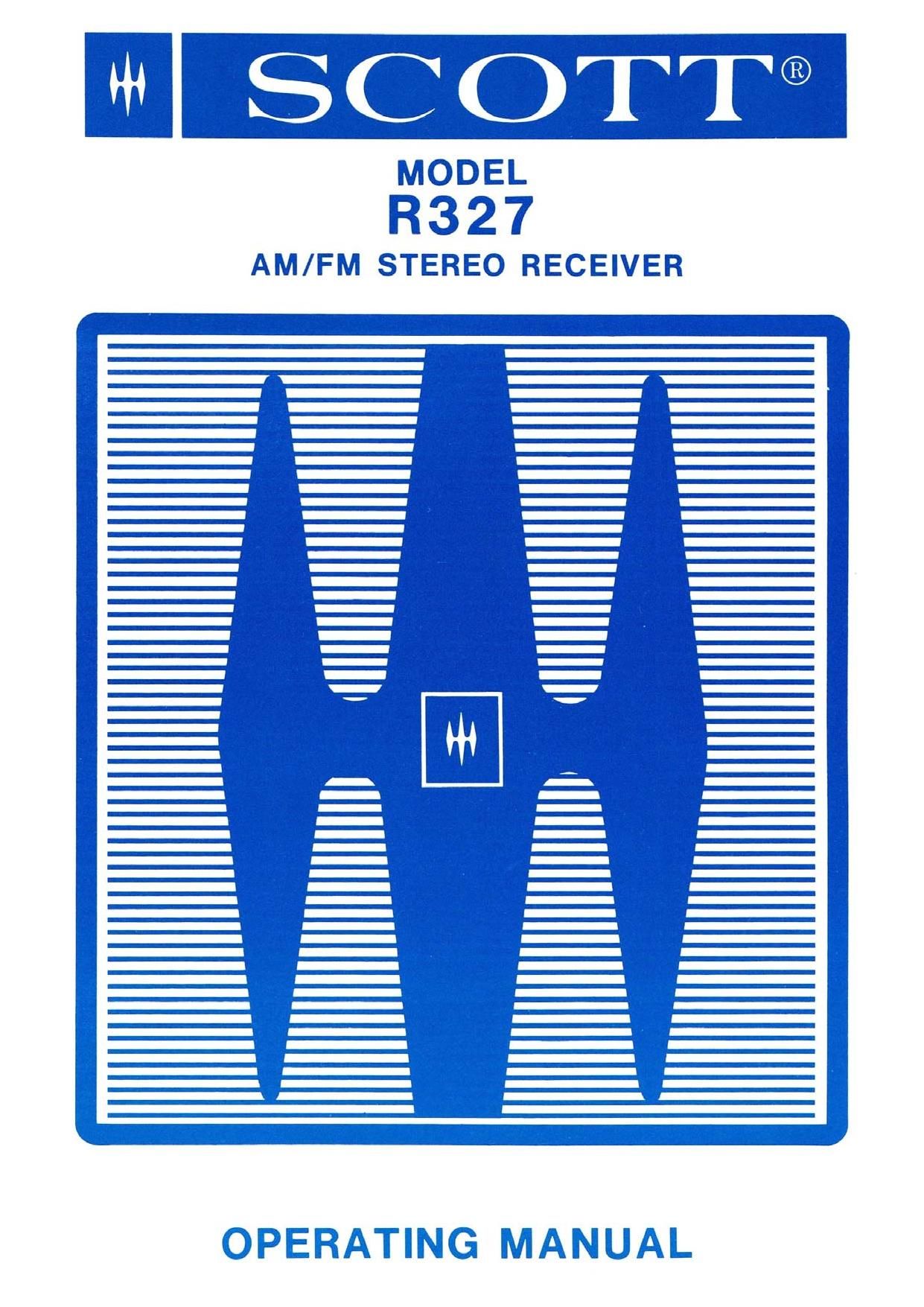

Page 1

MODEL
R327

AM/FM STEREO RECEIVER

OPERATING MANUAL

Page 2

MODEL R327 FEATURES

LARGE TUNING DIAL

Large easy to read, back lighted tuning dial, with signal strength tuning meter.

INDICATOR LIGHTS

Instant-information panel indicator lights, show at-a-glance, the program source selected.

STEREO HEADPHONE JACK

Front panel headphone jack for personal listening with stereo headphones.

TONE CONTROLS AND FILTER

Full-range tone controls and switchable filter for complete audio compensation.

MICROPHONE INPUT
Front panel mounted microphone jack, permits receiver to be used as P.A. amplifier and to make live recordings on
accessory tape recorder.
DEEMPHASIS SWITCH

Rear panel mounted deemphasis switch, permits simple conversion to 25m deemphasis for operation with external
DOLBY B-Type converter, and to select U.S. or European 75 or 50 microsecond broadcast standards.

ACCESSORY OUTLETS
Rear panel mounted, switched and unswitched, accessory outlet to supply up to 200 watts for tape recorder or
turntable.
WARNING:
TO PREVENT FIRE 0R SHOCK HAZARD
DO NOT EXPOSE THIS APPLIANCE T0 RAIN OR MOISTURE.
N 0 T I C E
This appliance is manufactured with a serial number, located on the rear panel.
The final purchaser is requested to record the serial and model numbers, as well as other information
listed, so that a record of purchase will be on hand should loss of the equipment occur.
Model No. Serial No.
Date of Purchase Name
Address Telephone No.

Warranty Registration Date

H. 5. Scott Inc. 1977 Printed in U.S.A. 029-1173-124
