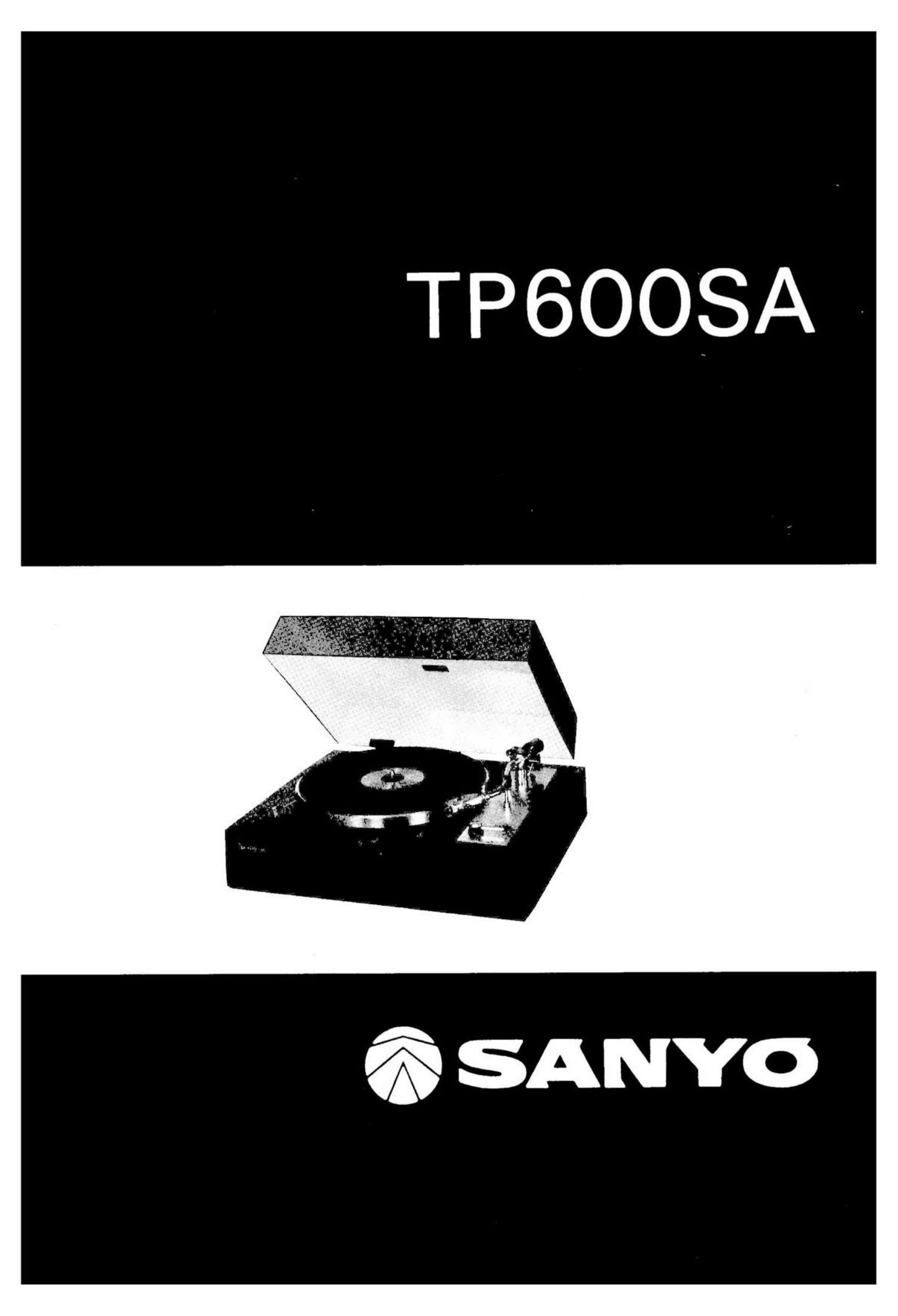

Sanyo TP 600SA Owners Manual

Page 2

This high-performance auto-return stereo turntable was
developed and engineered by Sanyo to be a source of enter-
tainment and listening pleasure for many years to come.
Before you install and start Operating your unit, please read
the instructions in this booklet carefully.

This will prevent errors in Operation and will assure faultless
performance of your unit and maximum listening enjoyment.

PREPARATIONS

1. Unpack the unit and remove the two screws which hold
down the motor and the main weight during transpor~
tation. (Fig. l)

2. Remove the fixing tape.

3. Mount the main weight as shown in Fig.2.

Fig. 2

4. Take out the turntable from the package ahd attach it

to the unit.

ATTACHING THE TURNTABLE

a. Turn the drive gear so that the non-serrated section faces
the turntable shaft. (Fig. 3)

b. Attach the turntable to the turntable shaft. Then hold

the belt and put it on the motor pulley. Make sure not to

twist the belt. (Fig. 4)

Unfasten the string that holds the tonearm.

Remove the rubber band from the anti-skate arm.

Connect the output cords of the unit to the PHONO input

terminals of your amplifier and plug the power cord into

93?

fin

lbmFMM

Fig. 4

an AC outlet.

MOTOR AND MAIN WEIGHT FIXING
FIXING SCREWS TAPE

Ix-
. L

az\. ._ a
i

\ .
ww»mw~_ ___.4 r _

:l

x

r
lr- \.._ a]

g :1

' r

STYLUS COVER

RUBBER

BAND

STRING

Fig. 1
