Sanyo TP 1010 Service Manual

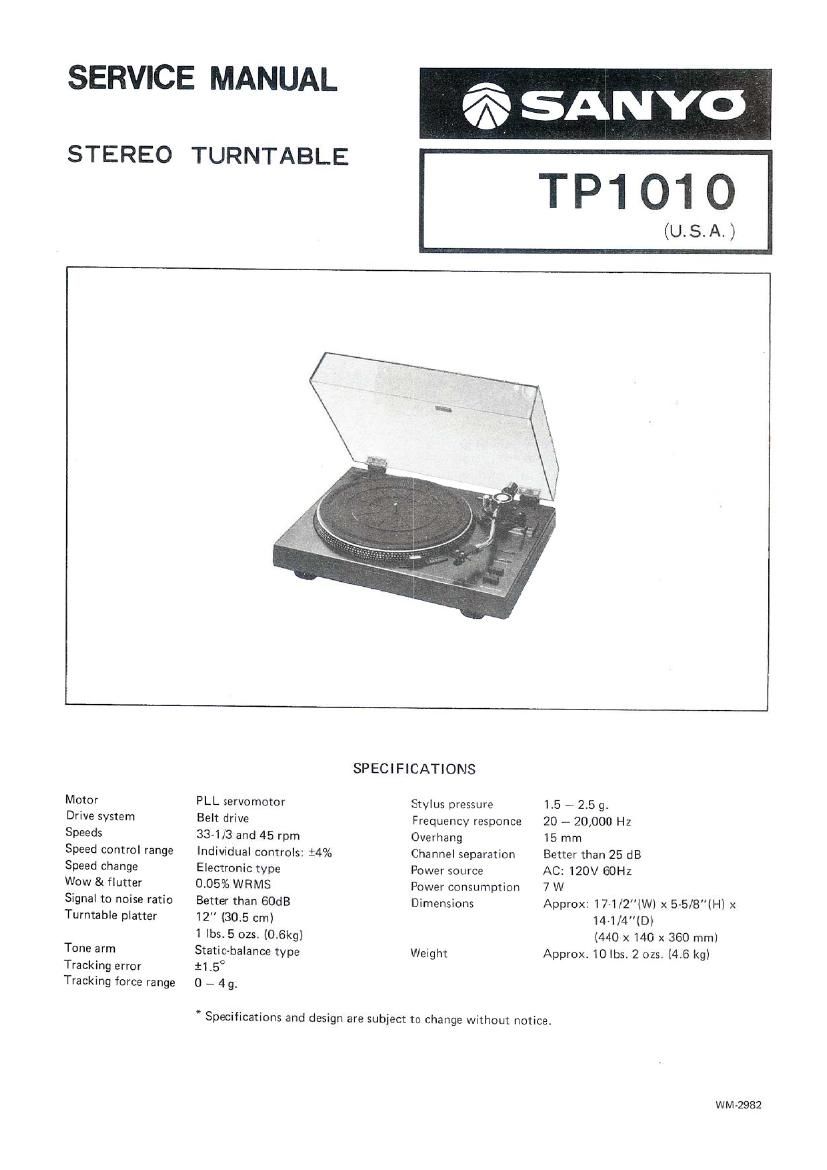

Page 1

SERVICE MANUAL

STEREO TURNTABLE

73 SANYO

TP1O
(

1O

U.$.A.)

Motor

Drive system
Speeds

Speed control range
Speed change

Wow & flutter
Signal to noise ratio
Turntable platter

Tone arm
Tracking error
Tracking force range

PLL servomotor
Belt drive

33-1/3 and 45 rpm
Individual controls: i4%
Electronic type
0.05% WRMS
Better than 60dB
12 (305 cm)

1 lbs 5 015, (0.6kg)
Static-balance type
:15"

0 - 4 g.

SPECIFICATIONS

Stylus pressure
Frequency responce
Overhang

Channel separation
Power source
Power consumption
Dimensions

Weight

1.5 - 2.5 g.
20 - 20,000 Hz
15 mm

Better than 25 dB
AC: 120V 60Hz
7 W

Approx: 17-1/2"(W) x 5~5/8"[H) x

14-1/4(Dl

[440 X 140 x 360 mm)
Approx. 10 lbs. 2 025. (4.6 kg]

" Specifications and design are subject to change without notice.

WM-2982

Page 2

ADJUSTM ENT

ADJUSTMENT OF TONEARM LEVER

Set the turntable unit upside down after putting the tonearm
on the arm rest and securing it.

Then, loosen the set screw (w/hex hole) and position the
lever (M14) in such a way that the protrusion of the micro-
switch contacts the foremost end of the lever.

ADJUSTMENT 0F MICRO-SWITCH

Set the turntable unit back in its normal position (the
turntable platter at the top). Loosen the phillips screw
(see illustraticnl with a screwdriver and adjust the micro-
switch position so that the micro-switch will be turned on
when the tonearm has moved a little toward the turntable
center (namely, to the mirror of the deck panel).

ADJUSTMENT OF AUTO-RETURN

There is a shaft which is accessible with an ordinary
screwdriver through the hole below the tonearm. (See
illustration at rightJ When the stylus has reached a point
approximately 55mm from the turntable center, turn the
shaft clockwise or counterlockwise and select a position
where it actuates the auto-return.

ADJUSTMENT 0F HEADSHELL

The headshell attached to the tonearm should not be
inclined either to the right or to the left. If necessary,
loosen the two screws on the bottom of the tubular arm and
adjust the headshell. Be sure that the stylus is normal to
the record surface.

_ _ _ J- _ 1 .
J >45 Counterwelght
