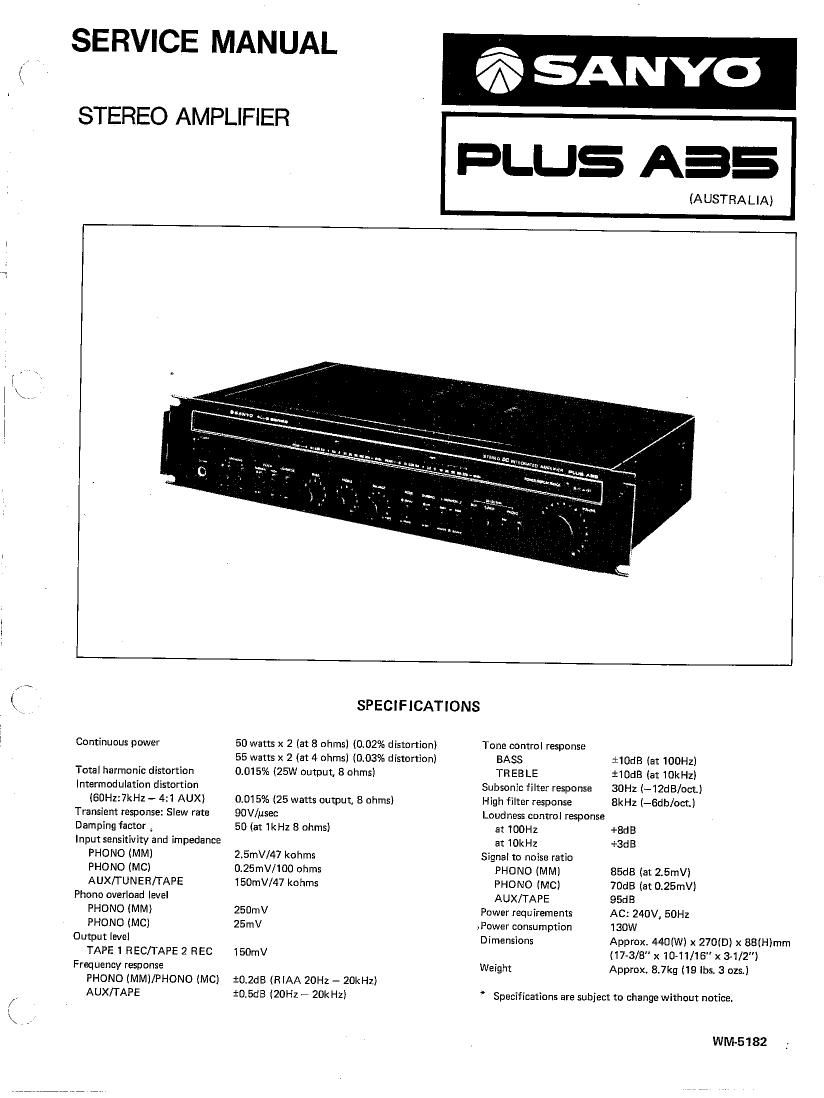

Sanyo plus a35 sm
This is the 20 pages manual for sanyo plus a35 sm.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sanyo plus a35 sm (Ocr-read)
Page 2
DISMOUNTING OF CABINET AND CHASSIS
(1) To dismount both side panels
Take out total 12 screws "Y16 (flat head, 4 x 8 mm)
from both side panels.
(2) To dismount the cabinet
Take out total 4 screws Y13 (binding head, 3 x
6 mm) from cabinet.
§v1a
Y13
we 32:
we k\\
SFDE DANEL
EY17
BALANCE
TREBLE
CABINET
(3) To dismount the front panel
a. Remove volume control knob (4), bass and treble
knobs (3), and balance control knob (3) - four
knobs in all.
b. Take out screws Y17 (flat head tapping screw,
3 x 8mm) and "Y7 (pan head tapping screw,
3 x 6 mm) - five pieces in all - from front panel,
then the front panel can be dismounted.
Y7 .......... Pan Hd. tapping screw
3 x 6mm
Y13.u.i....Bind Hd. screw
3 x 6mm
Y16...W..Fla( Hd. screw
4 X 8mm
Y17........iFlat Hd. lapping screw
3 x 8mm
SIDE PANEL
*va
Wis
