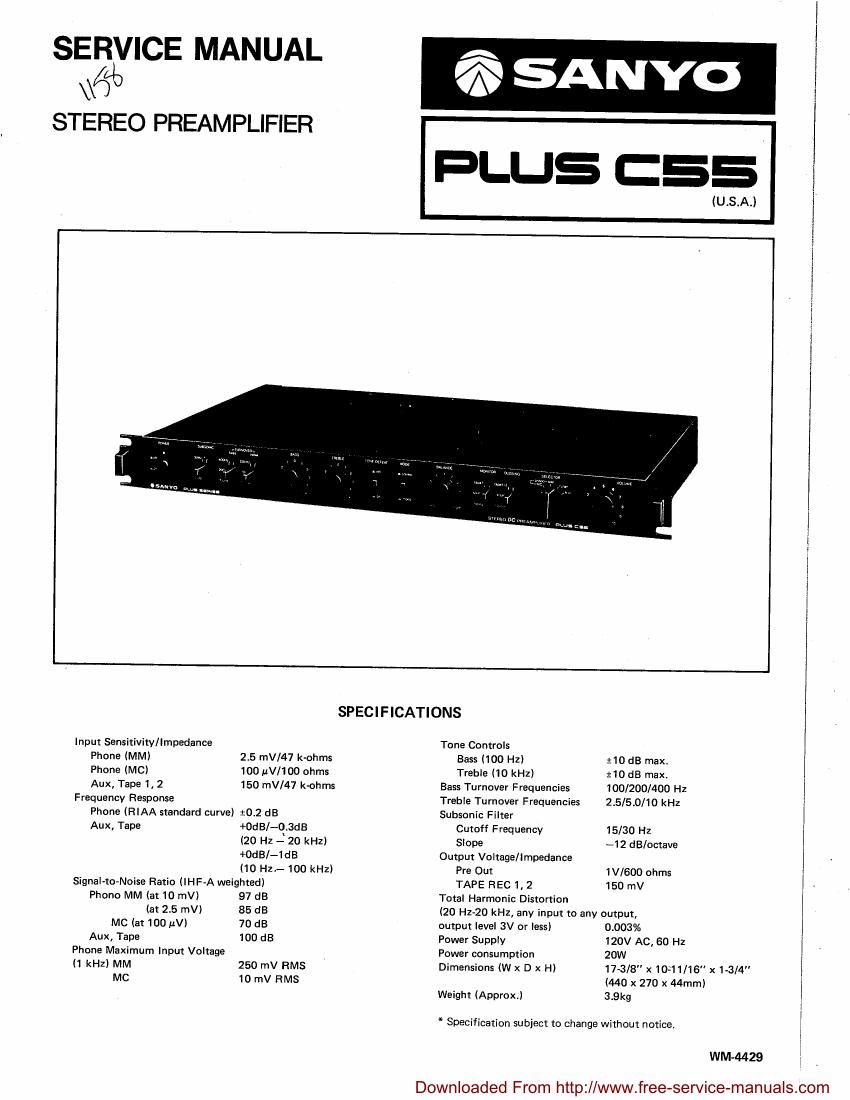

Sanyo PLUS C55 Service Manual

Page 2

HOW TO REMOVE THE CABINET AND CHASSIS

(1) How to remove a side panel
Unscrew six screws (Y15) (Flat head, 4 x 10 mm) used
to fasten the right and left side panels, and slowly
remove these side panels so as not to break the pawl
parts (shown inside the circle).

How to detach the top lid

Unscrew two screws (Y10) (Bind head tapping, 3 x
6 mm) used to fasten the top lid, together with washers
(Y18) (External tooth lock washer 3mm), slide the
top lid toward the rear about 1 cm, and detach the lid
upward.

(2)

SIDE PANEL (R)
Y15h.

Knob (VOLUME)

Rotary Knob (BALANCE)

Rotary Knob (THEBLE)

Rotary Knob (BASS)

Lever Knob SUBSDNIC
TURNDVER (x2)

(3) How to remove the front panel
Remove the knob (4) and rotary knobs (5) four in
total, five lever knobs (1D), and one select knob (which
is to be removed by loosening the Headless screw with
Hex. hole) all provided on the front of the set. Then, as
screws (Y13) (Flat head, 3 x 6 mm) are unscrewed, the
front panel can be removed forward.

How to detach the bottom lid

Unscrew four screws (Y10) (Bind head tapping, 3 x
6mm) used to fasten the bottom lid, together with
washers (YIB) (External tooth lock washer 3 mm), and
detach the bottom lid toward while sliding it toward
the rear about 5 mm.

(4)

Bind Head Tapping Screw
3x5mm

Flat Head Screw

3x6mm

Flat Head Screw
4x10nlm

External Tooth Lock Washer
3mm

Y13:

Y15:

Y1 8:

MONITOR
DUBBING n . ., 1
Select Knob (SELECTOR) / a BOTTOM LID \
v10 / Y10
v10 0/- we
Ylo g
\
