Sanyo mcd zx700f

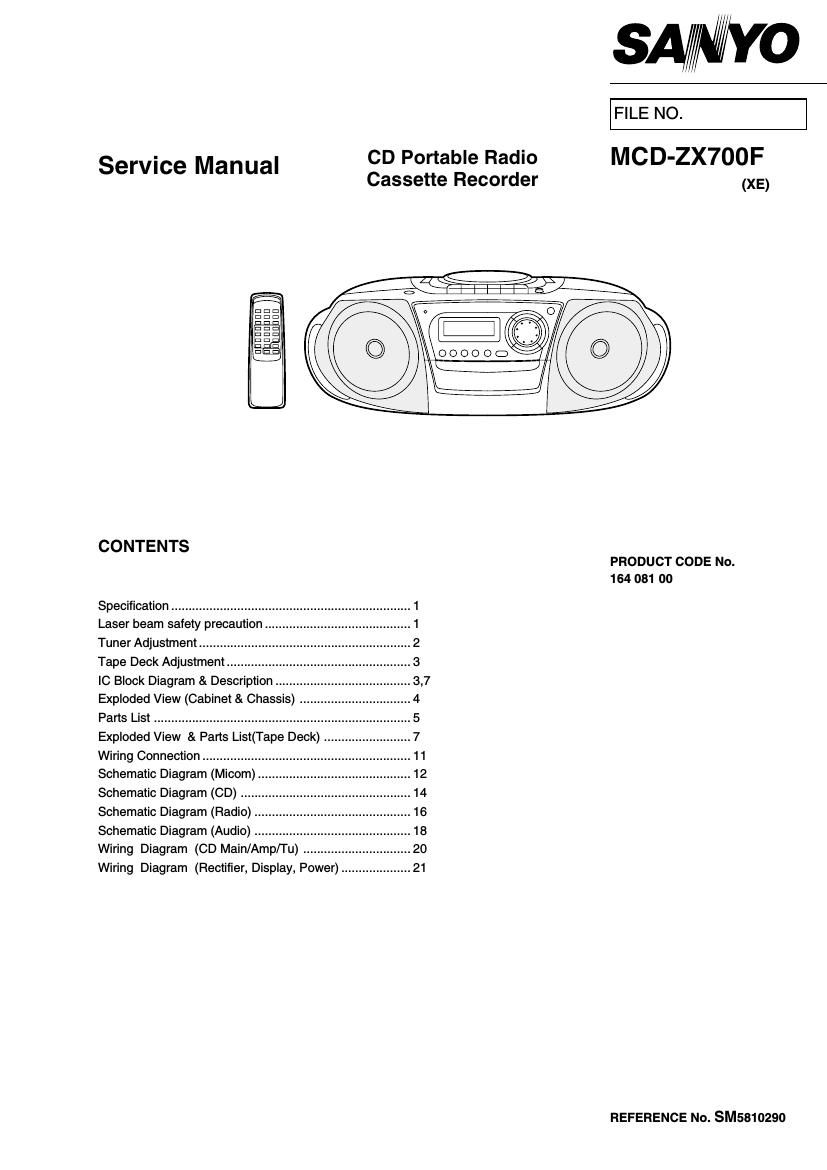

This is the 18 pages manual for sanyo mcd zx700f.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sanyo mcd zx700f (Ocr-read)
Page 1
- 1 - CD CHANGER SECTION Channels ..................................... 2-channel stereo Sampling frequency .................... 44.1 kHz Pick-up ........................................ semiconductor laser Laser output ................................ 0.6 mW (Continuous wave max.) Wave length ................................ 790 nm Wow and Flutter .......................... Below measurable limits Radio Reception frequency FM ........................................... 87.5 - 108 MHz (500 kHz step) AM ........................................... 522 - 1,710 kHz (9 kHz step) CASSETTE DECK Track system ............................... 4 - track, 2 - channel stereo Erasing system ........................... Magnet erase Tape speed ................................. 4.75 cm/sec Frequency response ................... 80 - 12,000 Hz Fast forward and Rewind time .... Approx. 110 sec. (C - 60) SPECIFICATIONS - Pickup that emits a laser beam is used on this CD section. CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. LASER OUTPUT ................ 0.6 mW Max. (CW) WAVE LENGTH ................. 790 nm LASER BEAM SAFETY PRECAUTION GENERAL SECTION Output power .............................. 3 W/ch (DC max.) Speaker ....................................... 10 cm X 2 Terminal ...................................... PHONE : 32 Power source .............................. AC : 110 - 120/220 - 240 V , 50/60 Hz .................................................... DC : 12V, 8 "R20/D" batteries Dimensions .................................Approx. 480(W) x 167(H) x 258(D) mm Weight (approx.) ......................... 3.0 kg (without batteries) Specifications subject to change without notice. CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM. ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE FOR STRÅLING. VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG. VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN. VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
Page 2
- 2 - TP4 TP3 TP7 CT102T101 L102TP1L101TP2TP6 CT101 TP5TP8 TP9 - Use a plastic screw driver for adjustments. - Adjust the intermediate frequency of AM and FM to the frequency of ceramic filter. - Set of unit Supply voltage : DC 12V Speaker : 32 Function switch : RADIO PARTS LOCATION TUNER ADJUSTMENTS This is a basic adjustment. 1. AM ADJUSTMENT StepAdjustingTuning Adjust-VTVM CircuitFrequencyInstrumentInputInstrumentOutputmentOscilloscope 1IF999 KHz AM sweep Loop ANT.VTVMSpeakerT103 Max. (450 KHz)generatoroscilloscope 2Tuning 522 KHz --- ---DigitalTP7(H)T1011.5V±0.05V 3coverage 1611 KHz --- --- voltmeterTP2(E) ---7.4V±0.1V 4Tracking 603 KHz AM signal Loop ANT.VTVMSpeaker AM COILMax. 51404 KHzgeneratoroscilloscopeCT102 Input Connection Output Connection 1. FM ADJUSTMENT BAND SELECT SWITCH : FM FM Dummy Antenna:75Ω unbalance StepAdjustingTuning Adjust-VTVM CircuitFrequencyInstrumentInputInstrumentOutputmentOscilloscope 1IF98.0MHz FM sweepTP3(H)VTVMTP5(H) ---Non Adjustmen t 10.7NHzgeneratorTP4(E)oscilloscopeTP4(E) 2Tuning 87.5Hz --- ---DigitalTP6(H)L1022.0V±0.1V 3coverage108.0MHz --- ---voltmeterTP2(E) ---7.2V±0.1V 4Tracking90.0.MHz FM signalTP1(H)VTVMTP8(H)L101Max. 5106.0MHzgeneratorTP2(E)oscilloscopeTP9(E)CT103 Input Connection Output Connection
