Sanyo mcd z530f
This is the 41 pages manual for sanyo mcd z530f.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sanyo mcd z530f (Ocr-read)

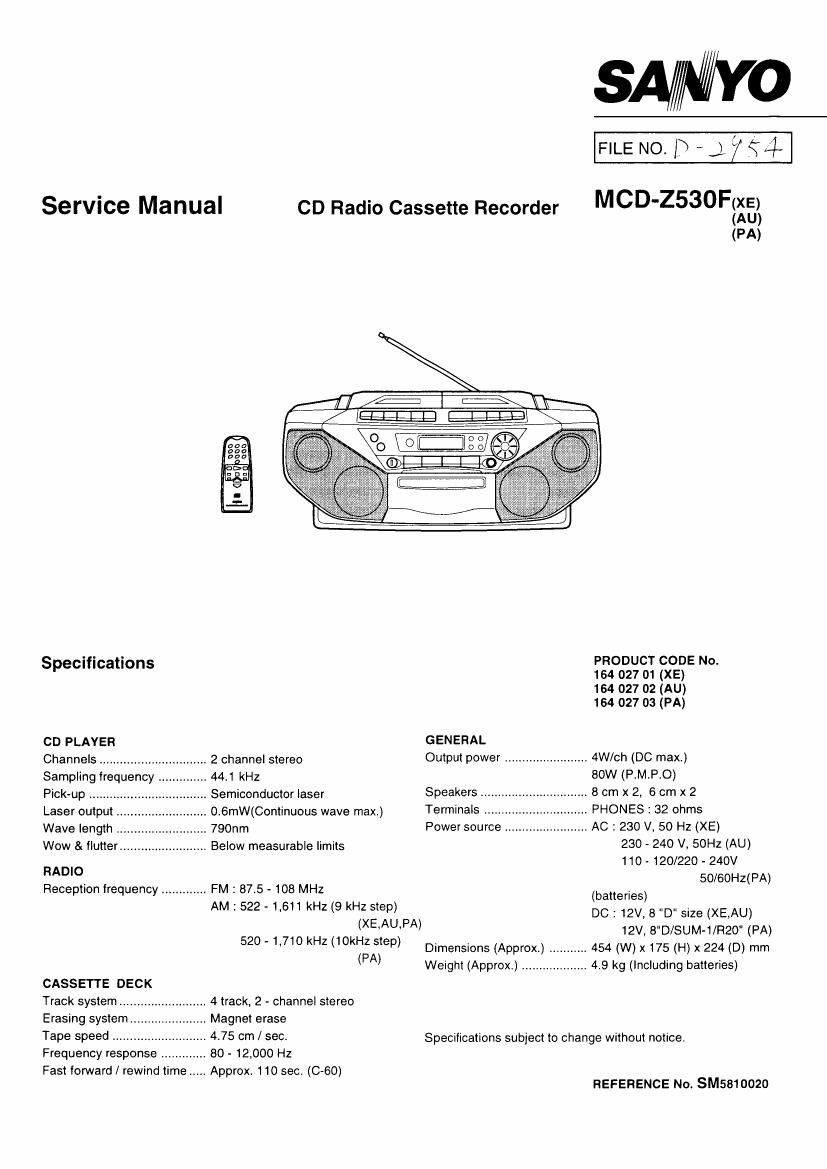

Page 1
SMYO
FILE No.) ,i/§4
Service Manual CD Radio Cassette Recorder MCD253OFgfil)
(PA)
Specifications PRODUCT CODE No.
164 027 01 (XE)
154 027 02 (AU)
154 027 03 (PA)
on PLAYER GENERAL
Channels .................... 2 channel stereo Output power 4W/ch (DC max.)
Sampling frequency . 44.1 kHz 80W (P.M.P.O)
Pick-up .. , Semiconductor laser Speakers ............................... 8 cm x 2, 6 Cm x 2
Laser output. , 0.6mW(Continuous wave max.) Terminals ......... PHONES: 32 ohms
Wave length , . 790nm Power source AC : 230 V, 50 Hz (XE)
Wow 8. llutter.... .. Below measurable limits 230 - 240 V, 50HZ (AU)
110 - 120/220 - 240V
RADIO 50/60H2(PA)
Reception frequency FM : 87.5 - 108 MHz (batteries)
AM : 522 - 1,611 kHz (9 kHz step) DC: 12V, 8 "D" size (XE,AU)
(XEAUPA) 12v, BD/SUM-1/Ft20" (PA)
520 ' 1710 kHz (10"2 599) Dimensions (Approx.) ........... 454 (W) x 175 (H) x 224 (D) mm
(PA) Weight (Approx) ................... 4.9 kg (Including batteries)
CASSETTE DECK
Track system 4 track, 2 - channel stereo
Erasing system. .. Magnet erase
Tape speed ---------------- 4 75 cm / sec Specifications subject to change without notice.
Frequency response .. 80- 12, 000 Hz
Fast forward/rewmd time ..... Approx. 110 sec (C- 60)
REFERENCE No. SM5810020
