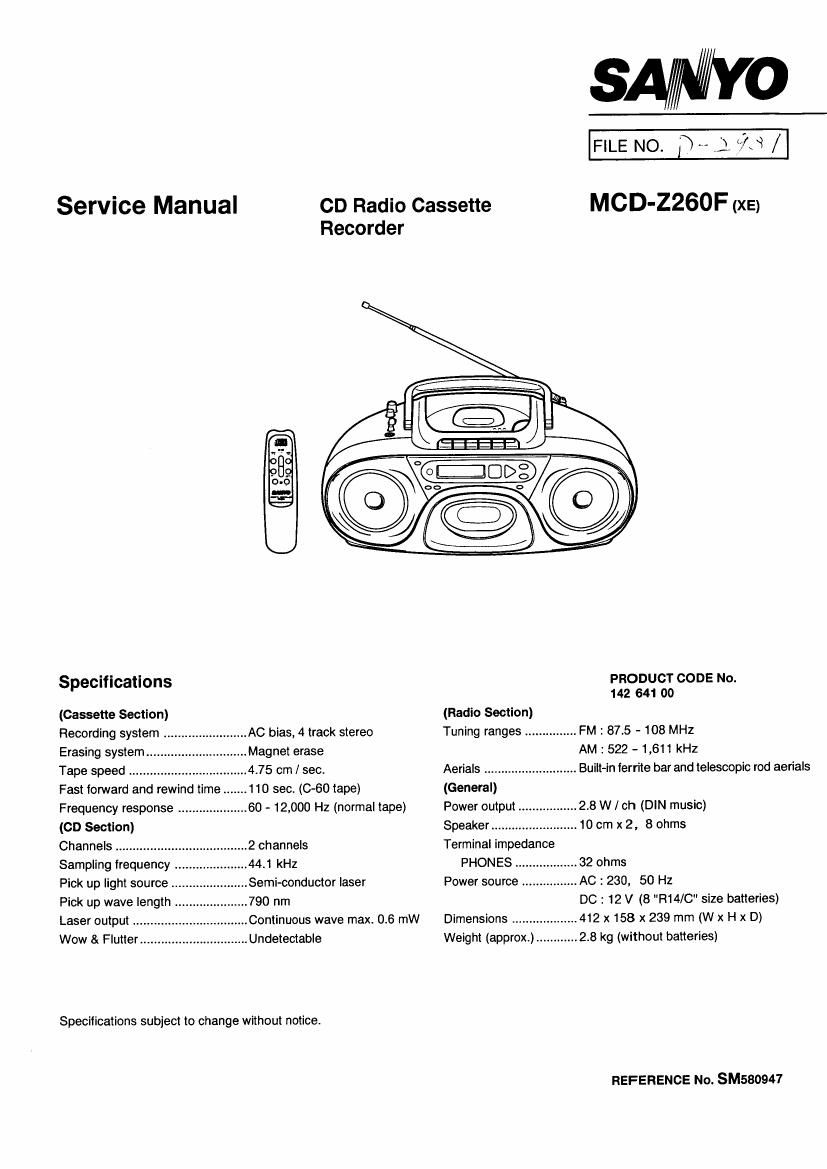

Service Manual
Specifications
(Cassette Section)
Recording system .....
Erasing system ......
..AC bias, 4 track stereo
.. Magnet erase
Tape speed ...................... ..4.75 cm / sec,
Fast forward and rewind time ....... 110 sec. (0-60 tape)
Frequency response .................... 60 - 12,000 Hz (normal tape)
(CD Section)
Channels ................... ..2 channels
Sampling frequency ..
Pick up light source
Pick up wave length ..
Laser output .............. ..Continuous wave max. 0.6 mW
Wow & Flutter ............................... Undetectable
Specifications subject to change without notice.
CD Radio Cassette
Recorder
SANYO
FILE NO. IL .173 /
MCD-2260F (XE)
PRODUCT CODE No.
142 641 00
(Radio Section)
Tuning ranges ............... FM : 87.5 - 108 MHz
AM : 522 - 1,611 kHz
Aerials .. Built-in ferrite bar and telescopic rod aerials
(General)
Power output 28 W/ on (DIN music)
Speaker ....... 10 cm x 2, 8 ohms
Terminal impedance
PHONES .................. 32 ohms
Power source ................ AC : 280. 50 Hz
DC : 12 V (8 "R14/C" size batteries)
Dimensions ..... 412 x 158 x 239 mm (W x H x D)
Weight (approx). ,2.8 kg (without batteries)
REFERENCE No. SM580947
