Sanyo mcd z250f
This is the 22 pages manual for sanyo mcd z250f.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sanyo mcd z250f (Ocr-read)

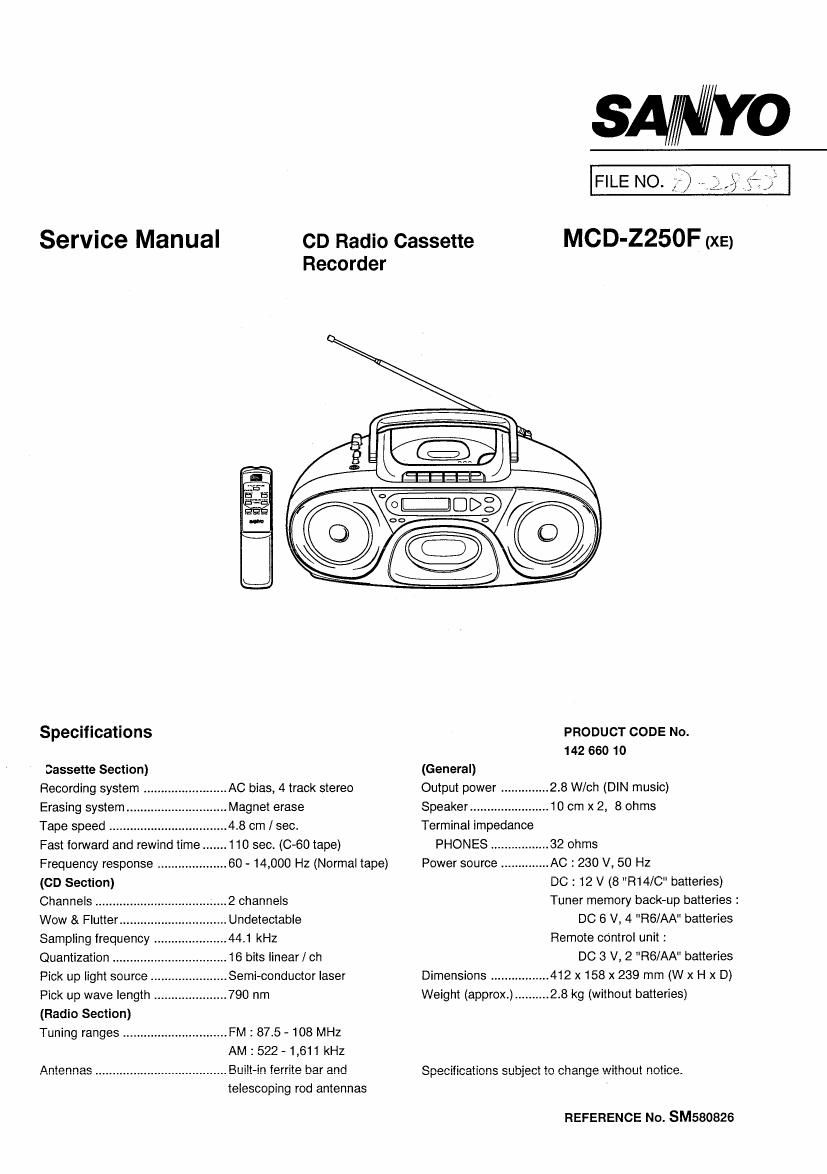

Page 1
Service Manual
Recorder
Specifications
Cassette Section)
Recording system
Erasing system .....
...AC bias, 4 track stereo
...Magnet erase
Tape speed ........................... ...4.8 cm / sec.
Fast forward and rewind time 1 1 0 sec. (0-60 tape)
Frequency response .................... 60 - 14,000 Hz (Normal tape)
(CD Section)
Channels ...................................... 2 channels
Wow & Flutter........... Undetectable
Sampling frequency . ...44.1 kHz
Quantization ............. 1 6 bits linear / ch
Pick up light source .. ...Semi-conduotor laser
Pick up wave length ..................... 790 nm
(Radio Section)
Tuning ranges .............................. FM : 87.5 - 108 MHz
AM 2522 - 1,611 kHz
Antennas ...................................... Built-in ferrite bar and
telescoping rod antennas
CD Radio Cassette
MCD-2250F (XE)
PRODUCT CODE No.
142 660 10
(General)
Output power . 2.8 W/ch (DIN music)
Speaker .......... ...10 cm x 2, 8 ohms
Terminal impedance
PHONES 32 ohms
Power source .............. AC : 230 V, 50 Hz
DC : 12 V (8 "Fi14/C batteries)
Tuner memory back-up batteries :
DC 6 V, 4 "RS/AA" batteries
Remote control unit:
DC 3 V, 2 "RS/AA" batteries
Dimensions ................. 412 x 158 x 239 mm (W x H x D)
Weight (approx) .......... 2.8 kg (without batteries)
Specifications subject to change without notice,
REFERENCE No. SM580826
