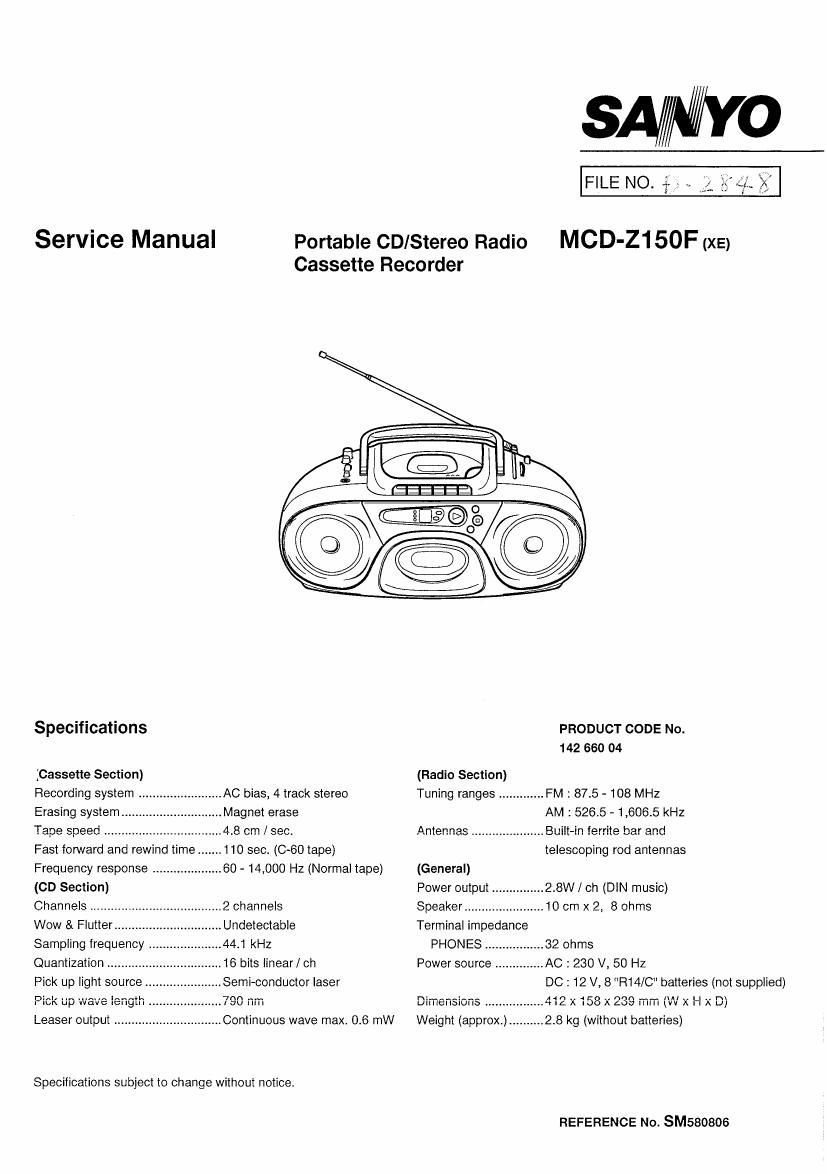

Page 1
Service Manual
Portable CD/Stereo Radio
Cassette Recorder
§.______.
FILE NO. :5 .. .3;
MCD-Z150F (XE)
Specifications
jCassette Section)
Recording system ........................ AC bias, 4 track stereo
Erasing system ..... Magnet erase
Tape speed .....4.8 cm ./ sec.
Fast forward and rewind time ....... 110 sec. (0-60 tape)
Frequency response .................... 60 - 14,000 Hz (Normal tape)
(CD Section)
Channels ....................... ..2 channels
Wow & Flutter............,...
Sampling frequency ..
Quantization
Pick up light source
.. 16 bits linear/ch
.,Semi-conductor laser
ma, .. .MM Mm
rum up wavc mug...
Leaser output ............................... Continuous wave max. 0.6 mW
~mn _.__
IUUlllll
Specifications subject to change without notice.
PRODUCT CODE No.
142 660 04
(Radio Section)
Tuning ranges ............. FM : 87.5 - 108 MHz
AM : 526.5 - 1,606.5 kHz
Antennas ..................... Built-in ferrite bar and
telescoping rod antennas
(General)
Power output 2.8W/ch (DIN music)
Speaker, 10 cm x 2, 8 ohms
Terminal impedance
PHONES ...... ...32 ohms
Power source
AC : 230 V. 50 Hz
DC : 12 V, 8 "R14/C batteries (not supplied)
Dimensions ................. 412 x158 x 239 mm (W x H x D)
Weight (approx.)..........2.8 kg (without batteries)
REFERENCE No. SM580806
