Extracted text from sanyo mcd z110f (Ocr-read)
Page 1

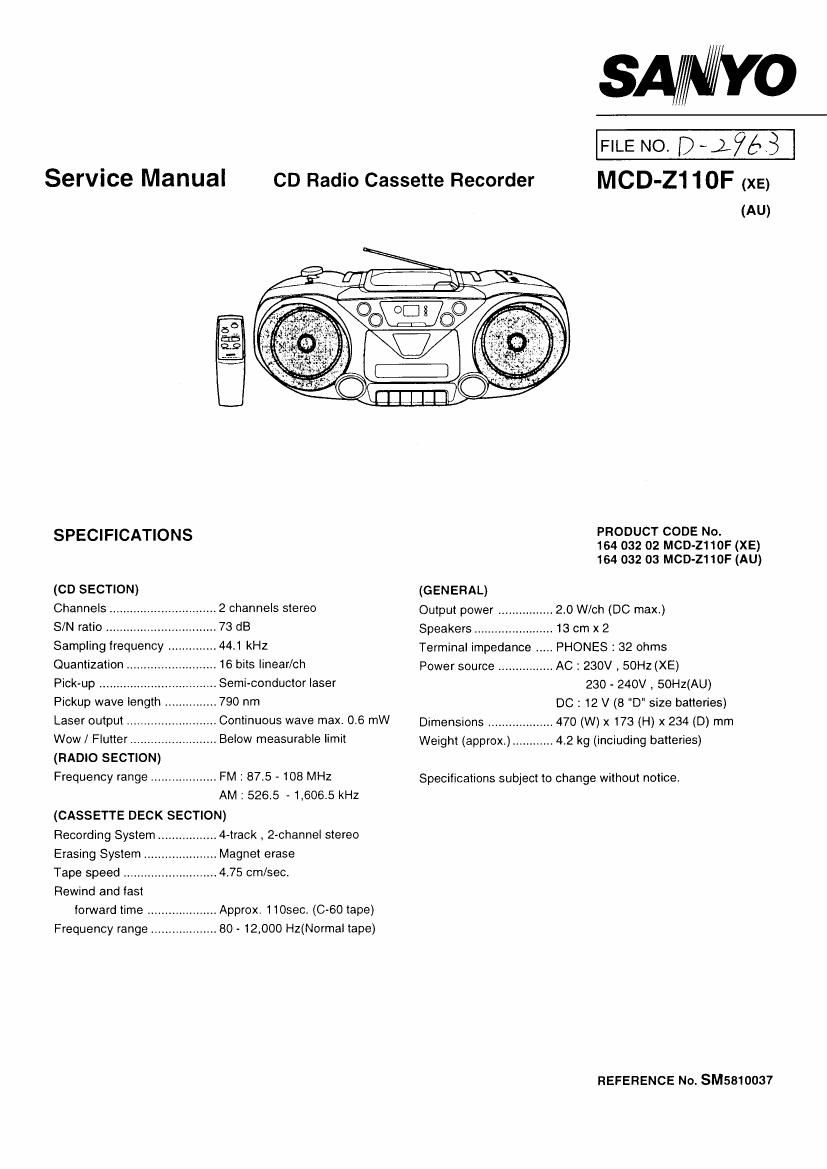

Service Manual
E (altars
SPECIFICATIONS
(CD SECTION)
Channels ............................... 2 channels stereo
S/N ratio .................. 73 dB
Sampling frequency ...44.1 kHz
Quantization .. 16 bits linear/ch
Pick-up .......... Semi-conductor laser
Pickup wave length . 790 nm
Laser output ......... Continuous wave max. 0.6 mW
Wow/ Flutter ......................... Below measurable limit
(RADIO SECTION)
Frequency range ................... FM : 87.5 - 108 MHZ
AM: 526.5 -1,606.5 kHz
(CASSETTE DECK SECTION)
CD Radio Cassette Recorder
SA/MYO
FILE NO. D -J,?é_3
MCD-Z'I 10F (XE)
(AU)
PRODUCT CODE No.
164 032 02 MCD-Z110F (XE)
164 032 03 MCD-Z110F (AU)
(GENERAL)
Output power .............. 2.0 W/ch (DC max.)
Speakers ....................... 13 cm x 2
Terminal impedance PHONES : 32 ohms
Power source ................ AC : 230V , 50Hz(XE)
230 - 240V , 50H2(AU)
DC : 12 V (B "D" size batteries)
Dimensions 470 (W) x 173 (H) x 234 (D) mm
Weight (approx) 4.2 kg (inciuding batteries)
Specifications subject to change without notice.
Recording System
Erasing System
Tape speed ......
Rewind and fast
forward time ................
Frequency range
..,.4-track , 2-channel stereo
Magnet erase
4,75 cm/sec.
Approx. 110sec. (0-60 tape)
80 - 12,000 H2(Normal tape)
REFERENCE No. SM5810037
