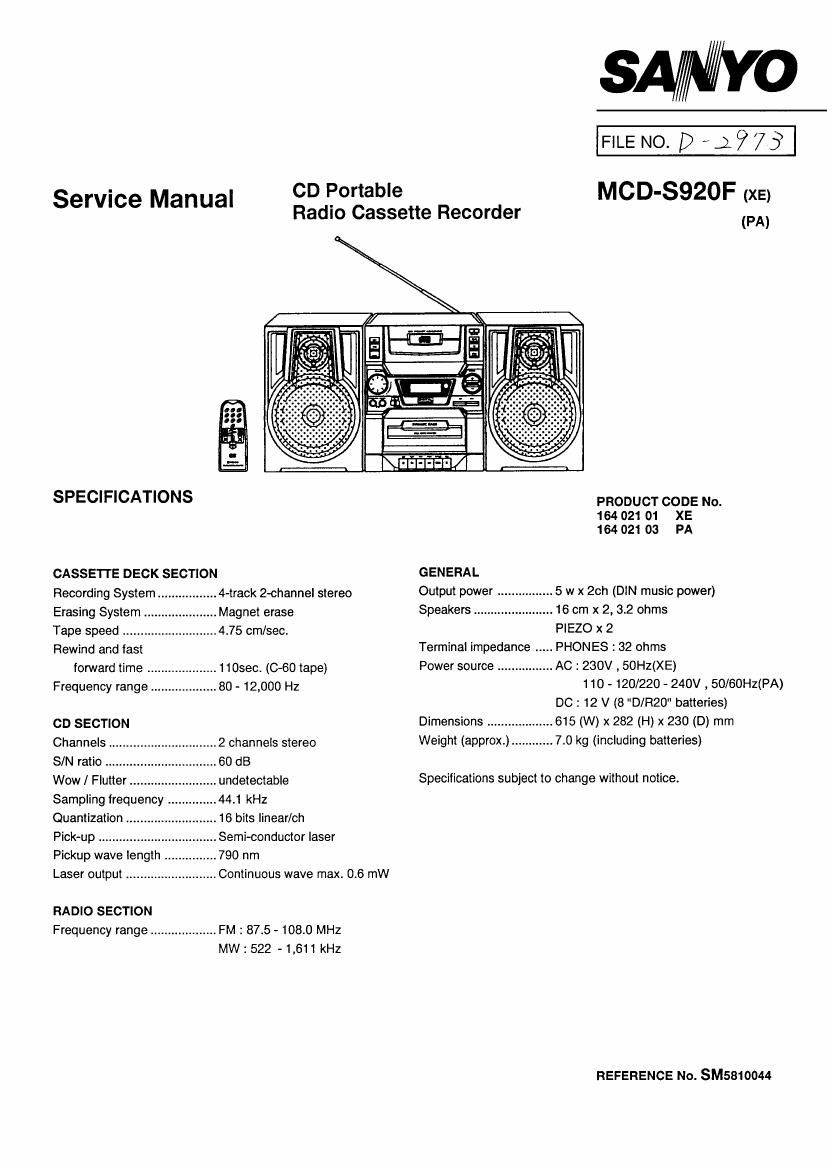

Page 1
CD Portable
Radio Cassette Recorder
Service Manual
SAMYO
FlLENO. D 32975
SPECIFICATIONS
CASSETTE DECK SECTION
Recording System
Erasing System
4-track 2-channel stereo
Magnet erase
Tape speed ........................... 4.75 cm/sec.
Rewind and fast
forward time .................... 1103ec. (0-60 tape)
Frequency range ................... 80 - 12,000 Hz
CD SECTION
Channels ............................... 2 channels stereo
SIN ratio ........ 60 dB
Wow / Flutter.
Sampling Irequency
Quantization ..
Pick-up ..........
Pickup wave length .
Laser output ............
undetectable
44.1 kHz
16 bits linear/ch
Semi-conductor laser
790 nm
Continuous wave max. 0.6 mW
RADIO SECTION
Frequency range ................... FM : 87.5 - 108.0 MHz
MW2522 - 1,611 kHz
MCD-SQZOF (XE)
(PA)
PRODUCT CODE No.
164 021 01 XE
164 021 03 PA
GENERAL
Output power .. 5 w x 2ch (DIN music power)
Speakers ......... 16 cm x 2, 32 ohms
PIEZO x 2
Terminal impedance ..... PHON ES :32 ohms
Power source ................ AC : 230V ,50Hz(XE)
1 10 - 120/220 - 240V , 50/60Hz(PA)
DC : 12 V (8 "D/R20" batteries)
Dimensions. 615 (W) x 282 (H) x 230 (D) mm
Weight (approx. 7.0 kg (including batteries)
Specifications subject to change without notice.
REFERENCE No. SM5810044
Page 2
CD Portable
Radio Cassette Recorder
Service Manual
SAMYO
FlLENO. D 32975
SPECIFICATIONS
CASSETTE DECK SECTION
Recording System
Erasing System
4-track 2-channel stereo
Magnet erase
Tape speed ........................... 4.75 cm/sec.
Rewind and fast
forward time .................... 1103ec. (0-60 tape)
Frequency range ................... 80 - 12,000 Hz
CD SECTION
Channels ............................... 2 channels stereo
SIN ratio ........ 60 dB
Wow / Flutter.
Sampling Irequency
Quantization ..
Pick-up ..........
Pickup wave length .
Laser output ............
undetectable
44.1 kHz
16 bits linear/ch
Semi-conductor laser
790 nm
Continuous wave max. 0.6 mW
RADIO SECTION
Frequency range ................... FM : 87.5 - 108.0 MHz
MW2522 - 1,611 kHz
MCD-SQZOF (XE)
(PA)
PRODUCT CODE No.
164 021 01 XE
164 021 03 PA
GENERAL
Output power .. 5 w x 2ch (DIN music power)
Speakers ......... 16 cm x 2, 32 ohms
PIEZO x 2
Terminal impedance ..... PHON ES :32 ohms
Power source ................ AC : 230V ,50Hz(XE)
1 10 - 120/220 - 240V , 50/60Hz(PA)
DC : 12 V (8 "D/R20" batteries)
Dimensions. 615 (W) x 282 (H) x 230 (D) mm
Weight (approx. 7.0 kg (including batteries)
Specifications subject to change without notice.
REFERENCE No. SM5810044
