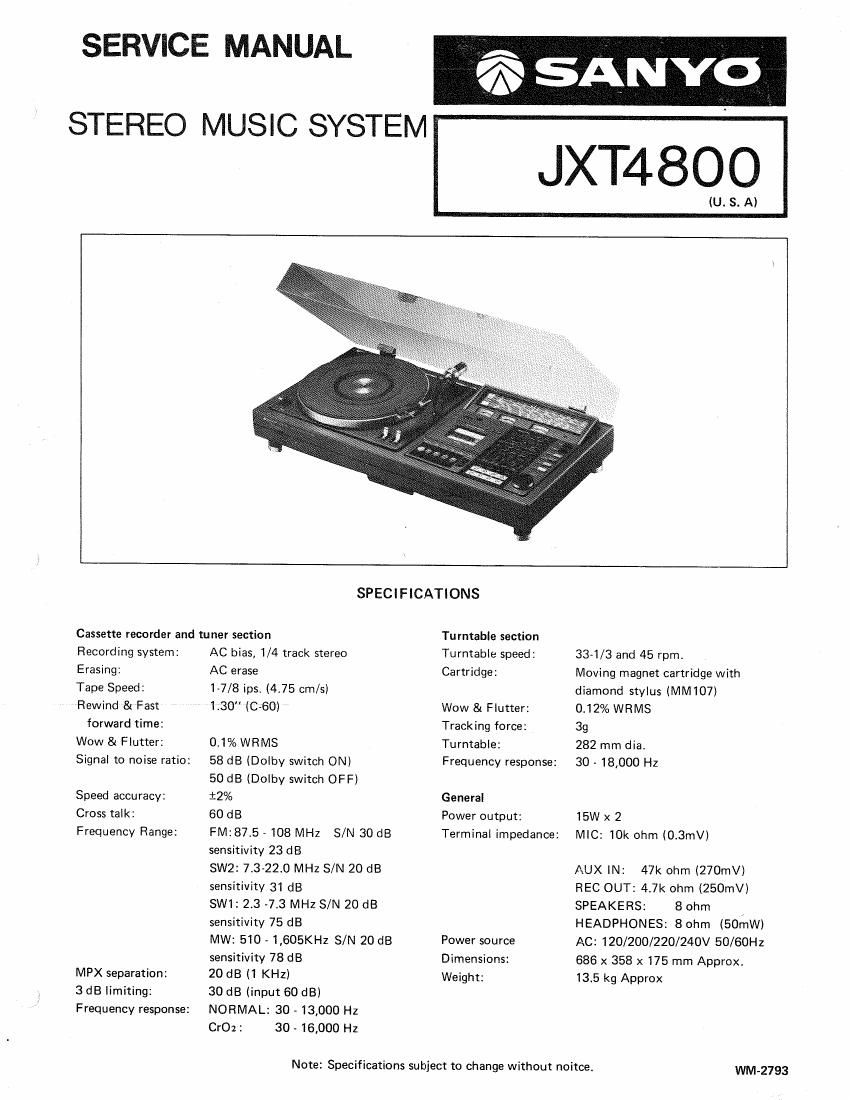

DlSASSEMBLY

A. Removing turntable unit (cf. Fig. 1) c. Removing printed circuit boards (cf. Fig. 3 to 8)

1 First, dismount the turntable platter (T1) and the sheet 1. Remove the three screws (2 marked Y17 and 1 marked
(T91) on it Next, remove the two special screws (19) Y11) and detach the 10-pin socket (114) from the con»
fastening the turntable plate assembly (T10) to the main hector PCB (126) Then, you can remove the FM
unit of the JXT4800HK. (Cf. TURNTABLE EXPLO- touch" tuning PCB (133). (Cf. Fig. 3)

BED VIEW)

* Pull up and turn counterclockwise the special screws to

remove.

2. Detach the lead socket (107) from the plug (T84) of the
turntable power cord, Pull two RCA plug pins (108) out
of the socket assembly (T88) Now, the turntable unit
can be separated from the JXT4800HK unit.

Fig. 3

2. Dismount the dial scale (37) from the bracket mount-
ing (48) and remove the six screws (Y4 ; 1, Y5 : 2,
Y10 = 3) securing the latter. This done, the meter PCB
(128) can be pulled off the socket on the connector
PCB (126) together with the bracket mounting (48).
(cf. Fig. 4)

B. Removing deck panel (cf. Fig. 2)
1 Detach from their shafts six slide knobs (16) and one
tuning knob (17) for operation control.
2. Remove the 10 screws (Y12) and the screw marked

(Y13), and the deck panel (1) will come off. v10? 37

Fig. 4
