Sanyo jcx 2600kr
This is the 25 pages manual for sanyo jcx 2600kr.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sanyo jcx 2600kr (Ocr-read)
Page 1

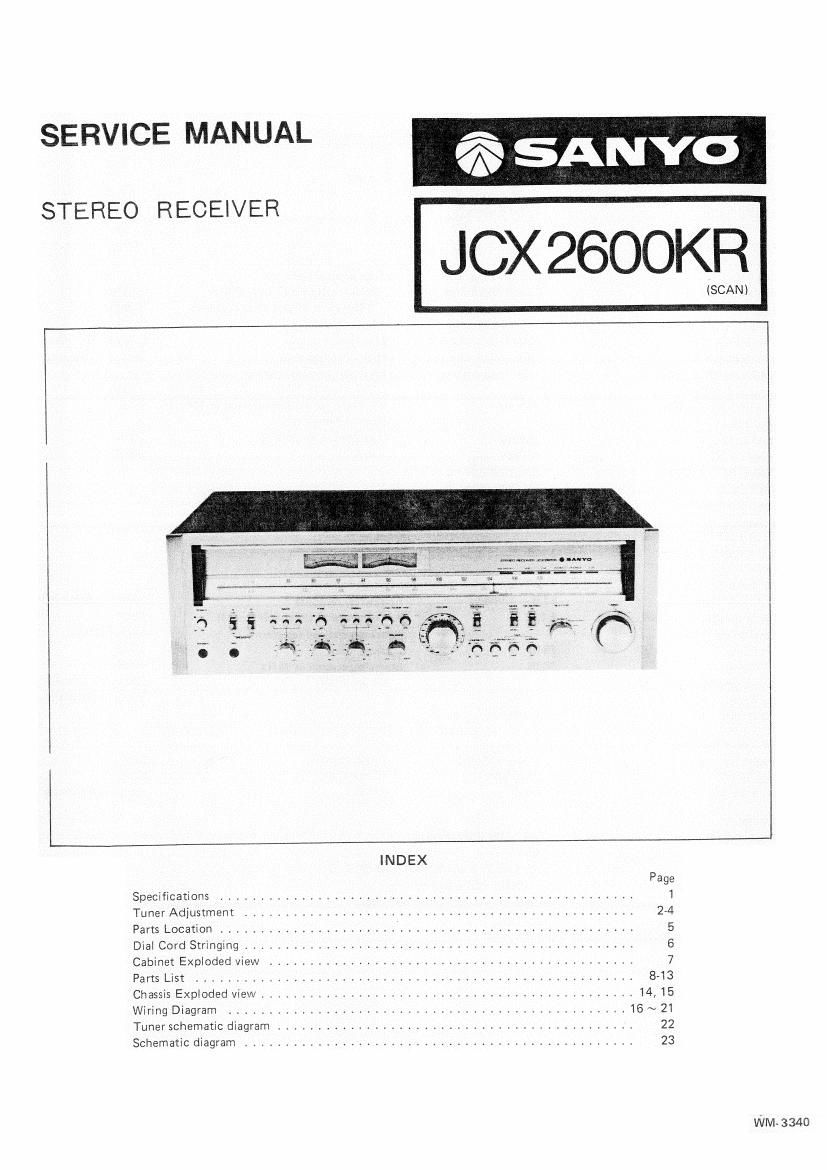

SERVICE MANUAL
@SANYO
JCX ZGOOKR
(SCAN)
STEREO RECEIVER
INDEX
Page
Specifications ................................................... 1
Tuner Adjustment ................................................ 2-4
Parts Location ................................................... 5
Diai Cord Stringing ................................................ 6
Cabinet Exploded View ............................................. 7
Parts List ...................................................... 8-13
Chassis Exploded view_ . ,7 , , .................................... 14,15
Wiring Diagram ................................................. 16 ~ 21
Tuner schematic diagram ............................................ 22
Schematic diagram ................................................ 23
WM- 3340
