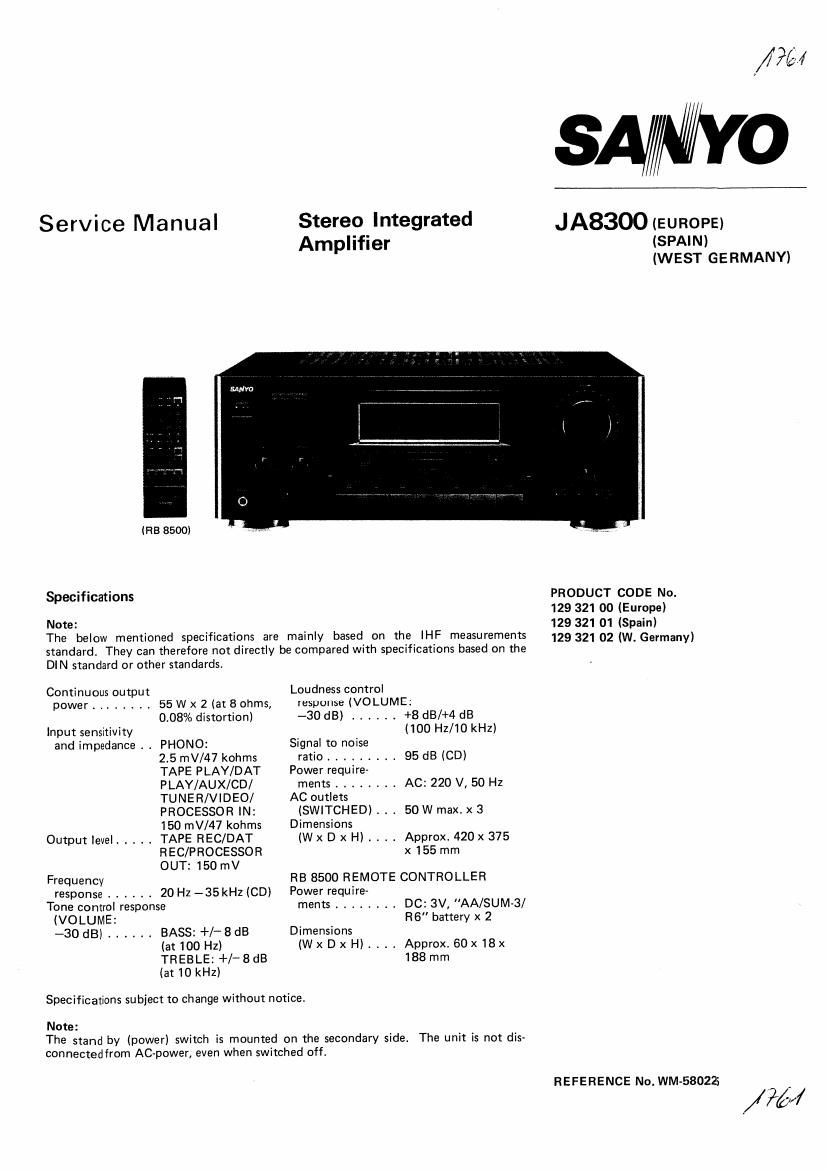

Sanyo JA 8300 Service Manual

Page 1

we;

SA/WYO

Service Manual Stereo Integrated JA8300 (EUROPE)

Amplifier (SPAIN)
(WEST GERMANY)

(RB 8500)
Specifications PRODUCT CODE No.
129 321 00 (Europe)
Note: 129 321 01 (Spain)

The below mentioned specifications are mainly based on the IHF measurements 129 321 02 (W. Germany)
standard. They can therefore not directly be compared with specifications based on the
DIN standard or other standards.

Continuous output Loudness control

power ........ 55 W x 2 (at 8 ohms, response (VOLUME:
008% distortion) -30 dB) ...... +8 dB/+4 dB
input sensitivity (100 Hz/10 kHz)
and impedance . . PHONO: Signal to noise
2.5 mV/47 kohms ratio ......... 95 dB (CD)
TAPE PLAY/DAT Power require-
PLAY/AUX/CD/ ments ........ AC: 220 V, 50 Hz
TUNER/VIDEO/ AC outlets
PROCESSOR IN: (SWITCHED). .. 50W max. x 3
150 mV/47 kohms Dimensions
Output level ..... TAPE REC/DAT (W x D x H) . . . . Approx. 420 x 375
REC/PROCESSOR x 155 mm
OUT: 150 mV

Frequency RB 8500 REMOTE CONTROLLER
response ...... 20 Hz -35 kHz (CD) Power require-

Tone control response ments ........ DC: 3V, AA/SUM-3/
(VOLUME: R6" battery x 2
-30 dB) ...... BASS: +/- 8 dB Dimensions

(at100Hz) (WXDXH).... Approx.60x18x
TREBLE:+/-8dB 188 mm
(at 10 kHz)

Specifications subject to change without notice.

Note:
The stand by (power) switch is mounted on the secondary side. The unit is not dis-
connectedfrom AC-power, even when switched off.

REFERENCE No. WM-580225

1/254
